Door Opening Seal - Inner: Removal

Open door.
Using a trim stick C-4755 or equivalent, disengage the push pins attaching door trim inner seal to door sill. See Fig 1.
Remove door trim inner seal from vehicle.

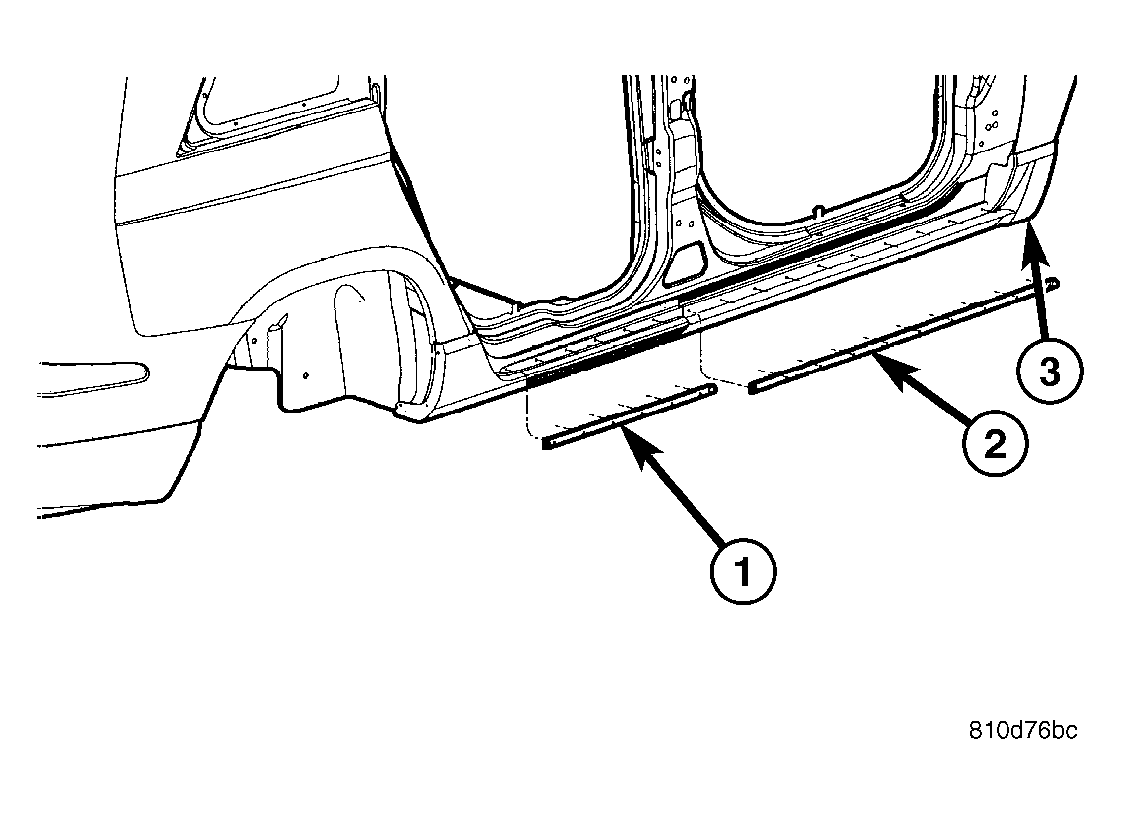

Fig 1: DOOR TRIM INNER SEAL AND PUSH PIN(S)

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR DOOR TRIM INNER SEAL AND PUSH PINS

2 - FRONT DOOR TRIM INNER SEAL AND PUSH PINS

3 - DOOR SILL
