Body - Interior & Exterior: Weatherstrip/Seals: Description

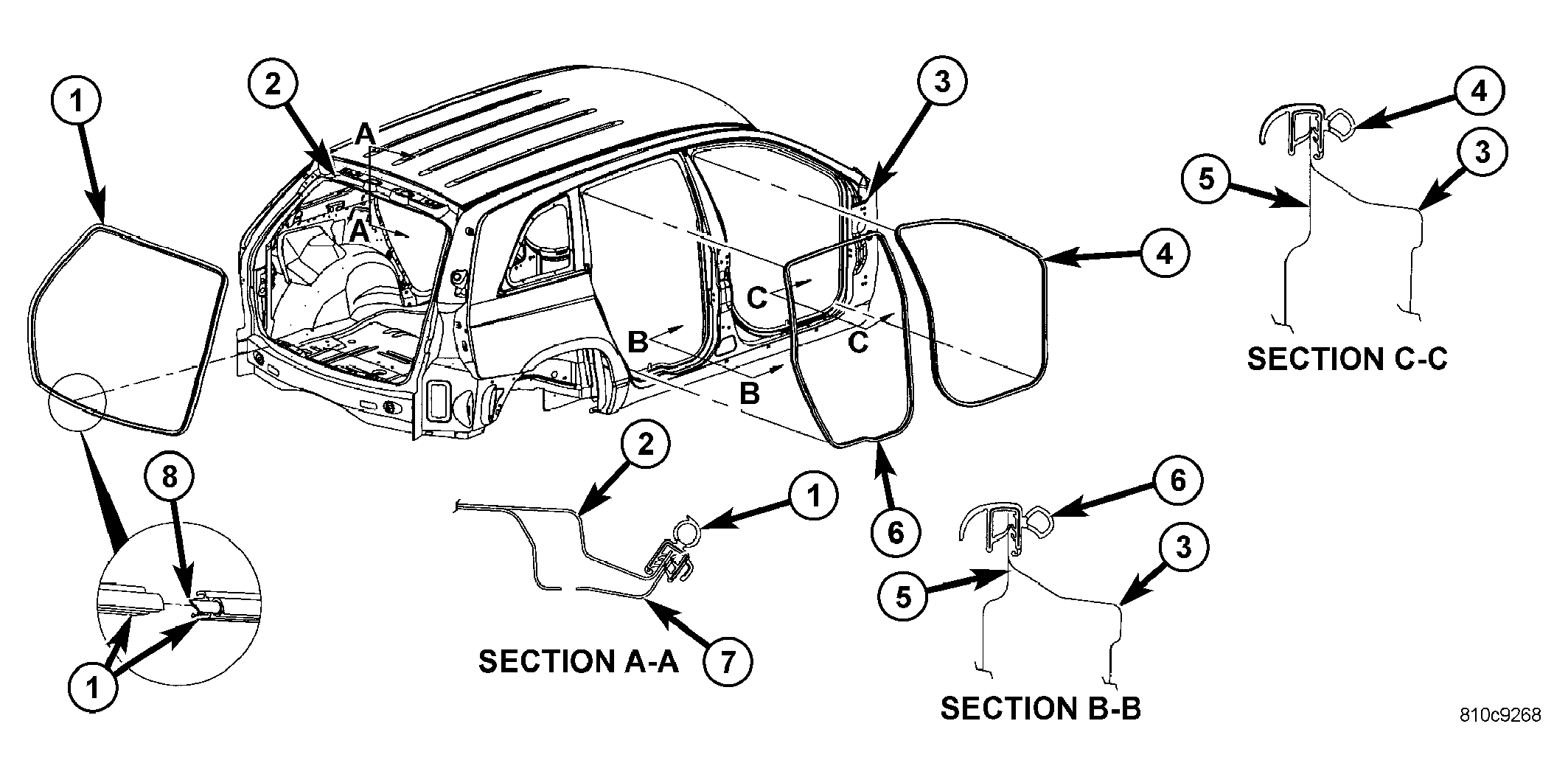

Fig 1: DOOR AND LIFTGATE OPENING WEATHERSTRIPS

Courtesy of DAIMLERCHRYSLER CORP.

1 - LIFTGATE OPENING WEATHERSTRIP

2 - LIFTGATE OPENING FRAME REINFORCEMENT

3 - BODY SIDE OUTER PANEL

4 - FRONT DOOR BODY MOUNTED WEATHERSTRIP

5 - BODY SIDE INNER PANEL

6 - REAR DOOR MOUNTED WEATHERSTRIP

7 - LIFTGATE OPENING FRAME REINFORCEMENT

8 - STUFFER
