Wind Deflector: Removal

  1. Fully open sunroof glass panel.
  2. Disconnect negative battery cable.
  3. Remove sunroof assembly (Refer to BODY/SUNROOF/MODULE ASSEMBLY - REMOVAL) .
  4. Depress the front deflector retaining tabs. See Fig 1

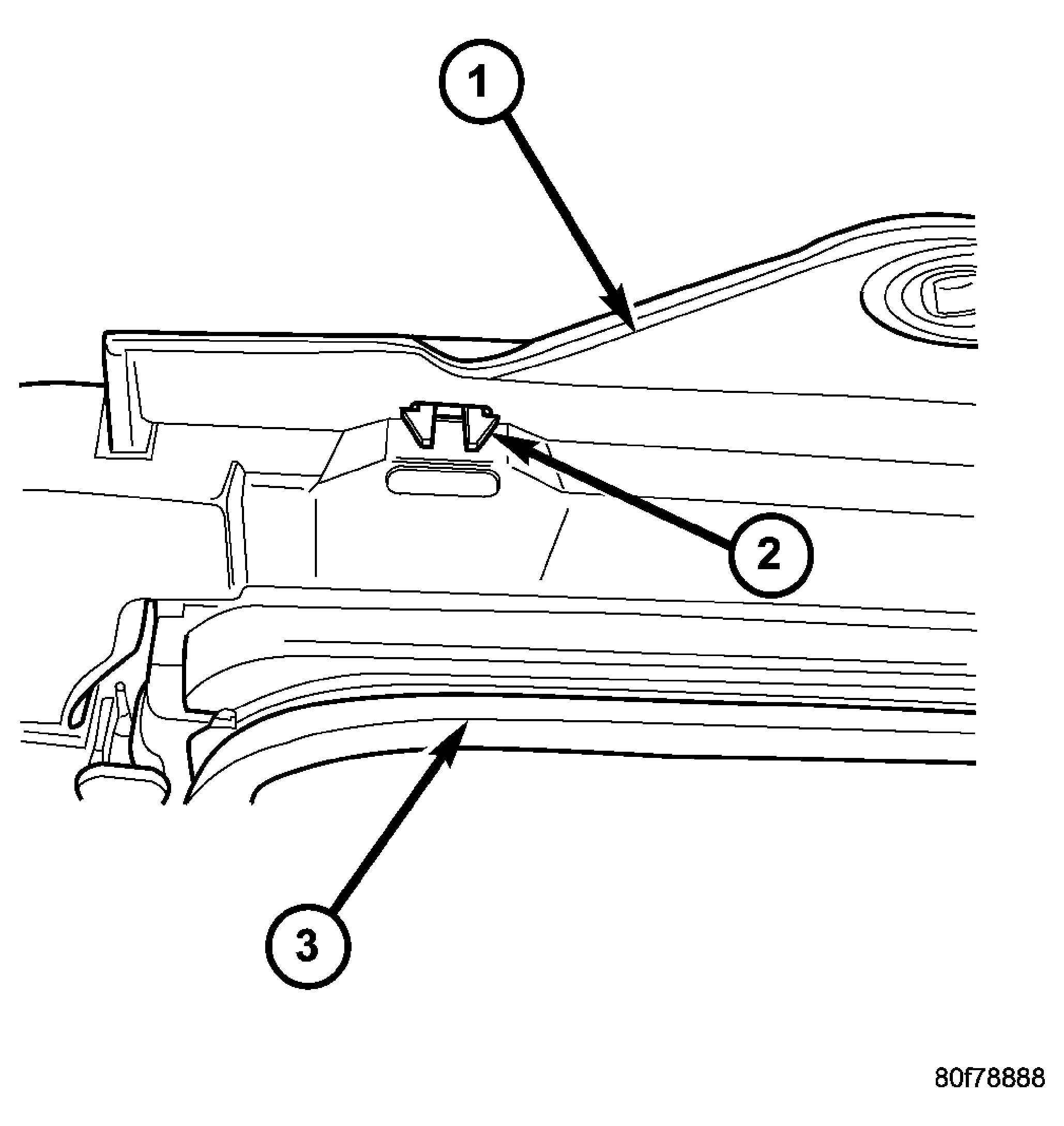

    Fig 1: WIND DEFLECTOR
    GC0001235Courtesy of DAIMLERCHRYSLER CORP.
    1 - Sun Roof
    2 - Retaining Clip
    3 - Sun Roof Assembly Trim
  5. Remove wind deflector.
