Control Switch: Removal

Disconnect the negative battery cable.
Separate the overhead console from the headliner, by carefully pulling down on the front portion, toward the windshield, to release the retaining clips. See Fig 1.

Release the sunroof switch retaining tab, disconnect the electrical connector and remove the switch from the console. See Fig 1.

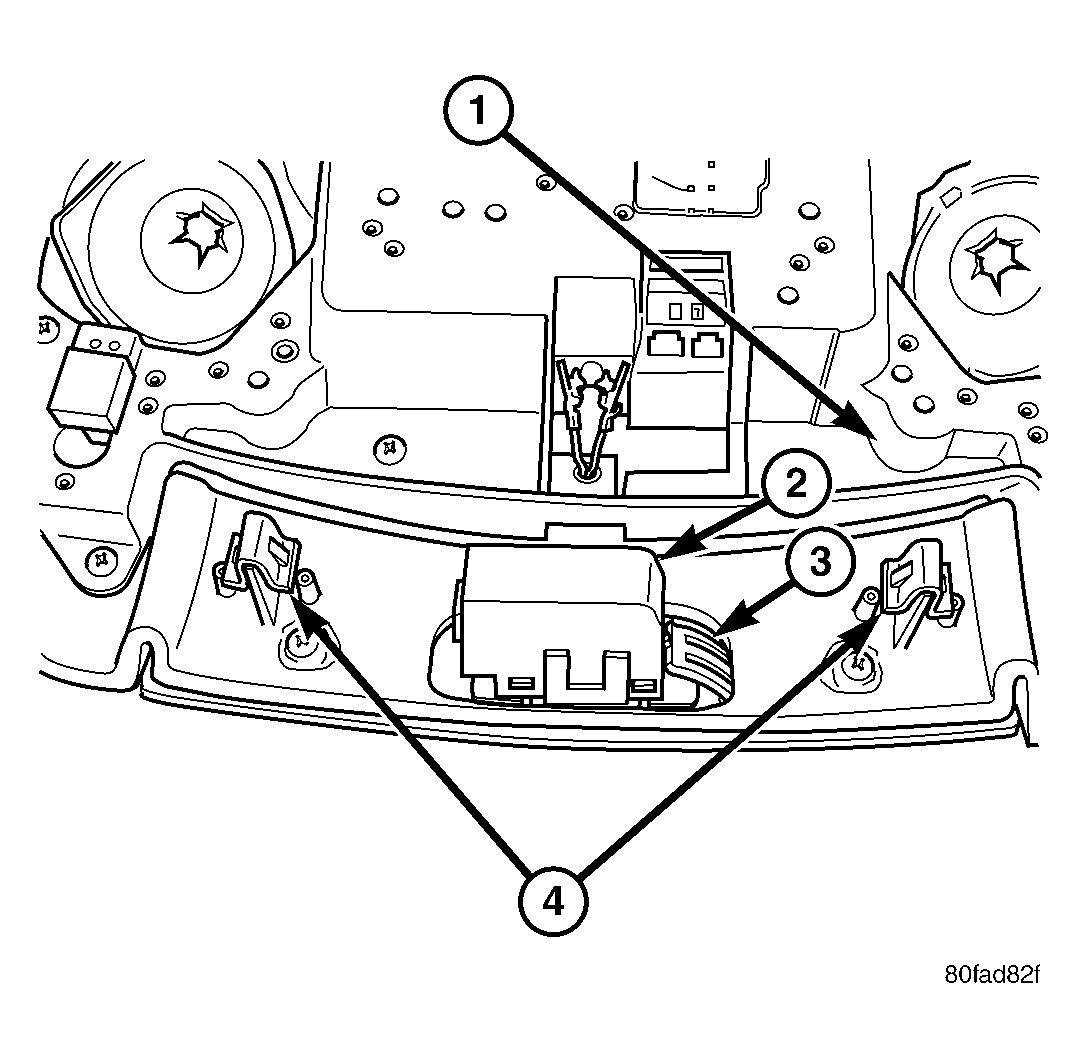

Fig 1: OVERHEAD CONSOLE

Courtesy of DAIMLERCHRYSLER CORP.

1 - OVERHEAD CONSOLE

2 - POWER SUNROOF SWITCH

3 - SUNROOF SWITCH RETAINING CLIP (PART OF CONSOLE)

4 - OVERHEAD CONSOLE RETAINING CLIPS
