Second Row Seat: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove two nuts attaching seat to floor pan. See Fig 1.
  3. Tilt seat forward and disconnect heated seat wire connector. See Fig 2.
  4. Remove seat from vehicle.

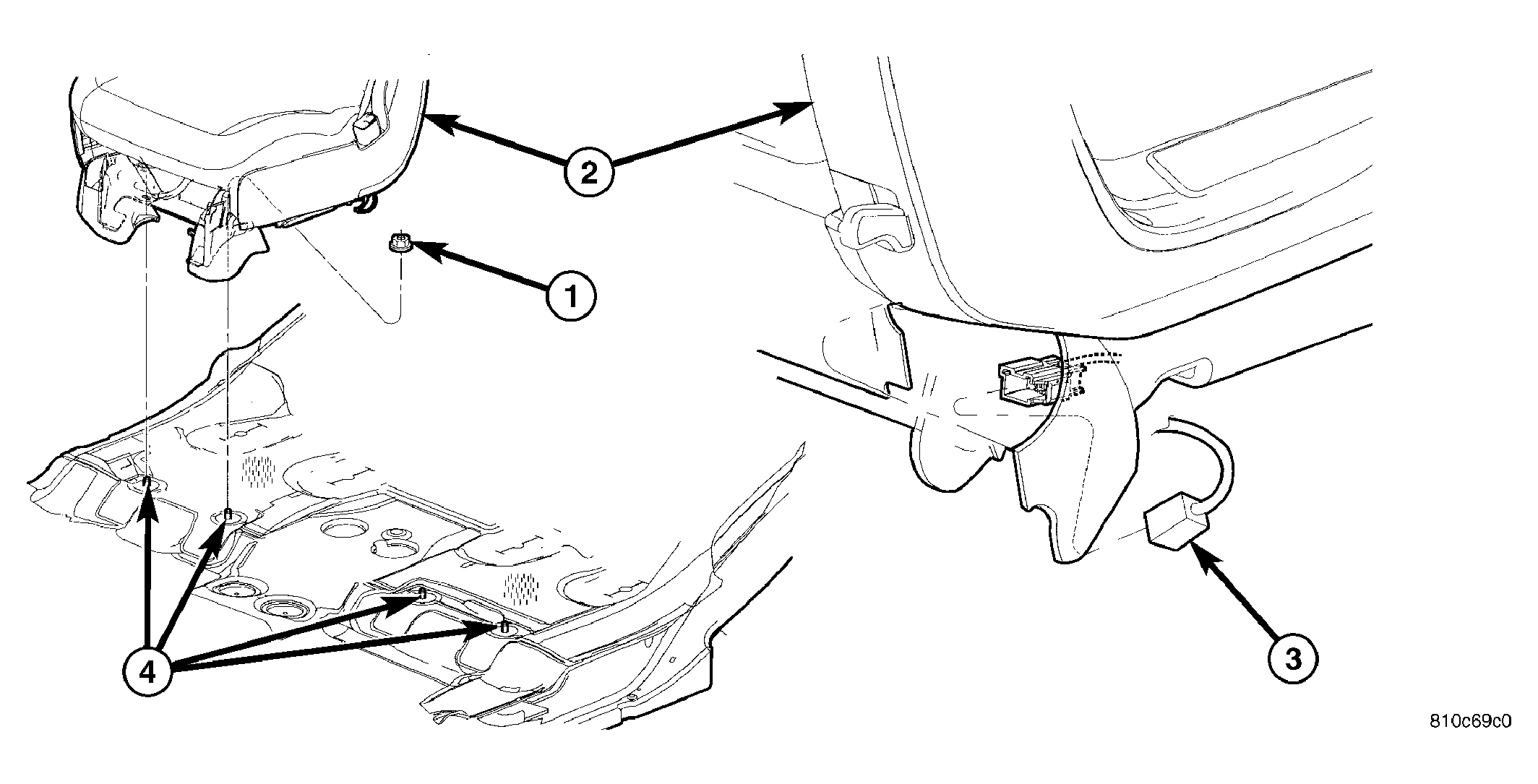

Fig 1: SECOND ROW SEATS
GC0001145Courtesy of DAIMLERCHRYSLER CORP.
1 - SEAT TO FLOOR WASHER AND NUT(S)
2 - SECOND ROW BUCKET SEAT
3 - WIRE CONNECTOR
4 - WELD STUDS

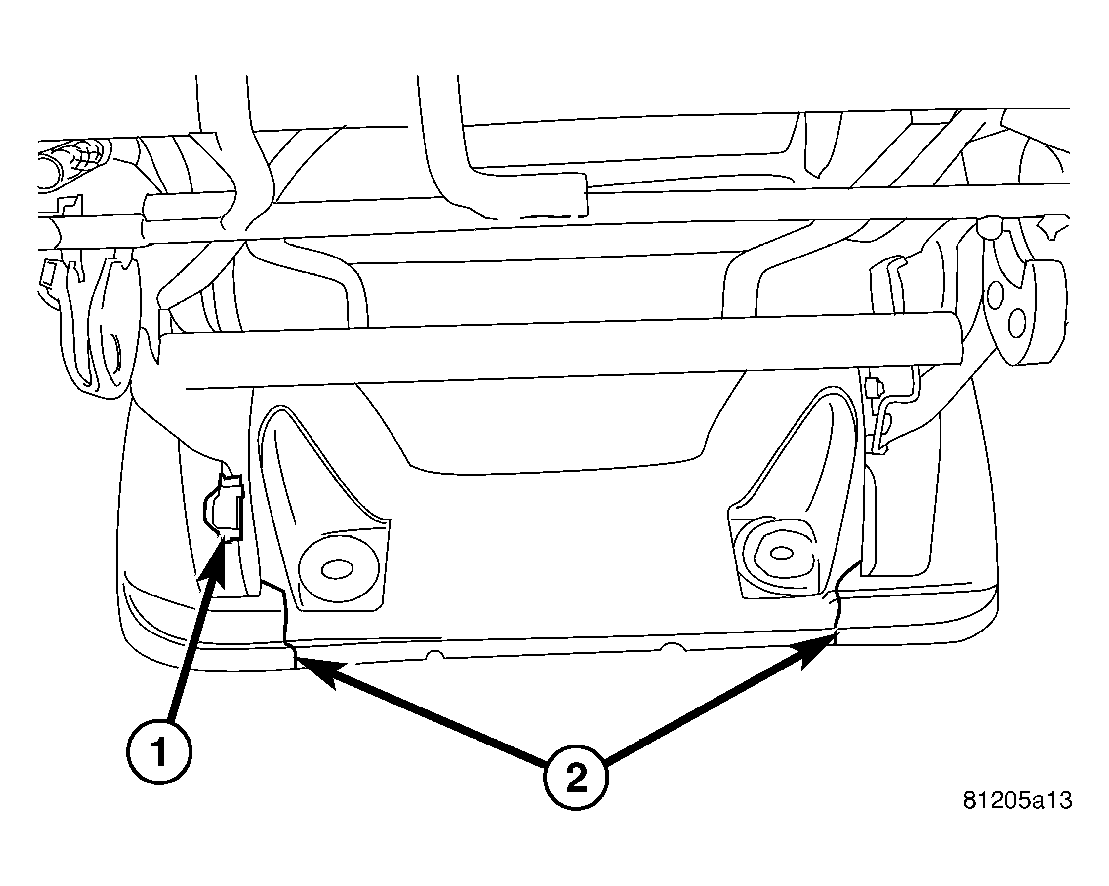

Fig 2: SECOND ROW DISCONNECT HEATED SEAT WIRE CONNECTOR
GC0001146Courtesy of DAIMLERCHRYSLER CORP.
1 - DISCONNECT HEATED CONNECTOR
2 - RELEASE LOCK TABS
