Second Row Seat Side Shield: Removal

  1. Fold seat flat and tilt seat forward to access screw.
  2. Remove screw attaching second row seat side shield. See Fig 1.
  3. Remove side shield.

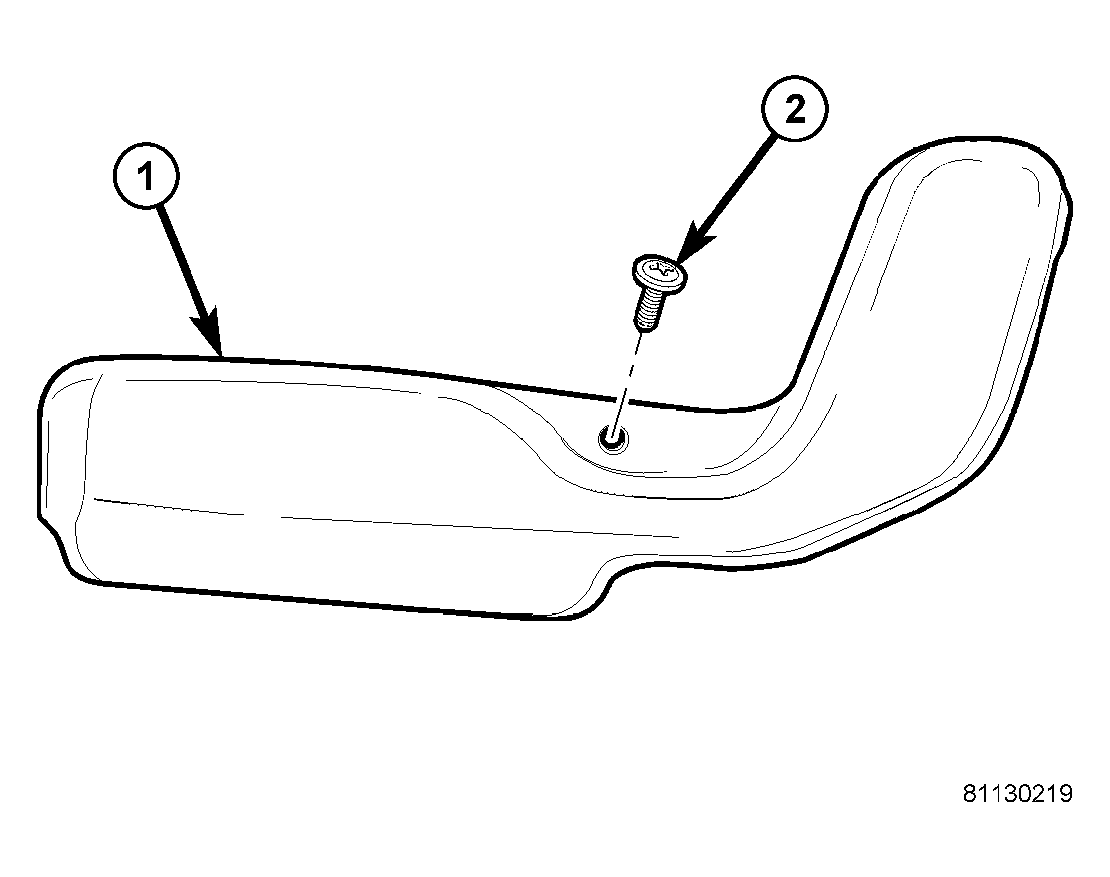

Fig 1: SEAT CUSHION SIDE SHIELD
GC0001180Courtesy of DAIMLERCHRYSLER CORP.
1 - SECOND ROW SEAT SIDE SHIELD
2 - ATTACHING SCREW
