Recliner Handle: Removal

  1. Remove screw holding recliner handle to recliner spline shaft. See Fig 1.
  2. Remove recliner handle from spline shaft.

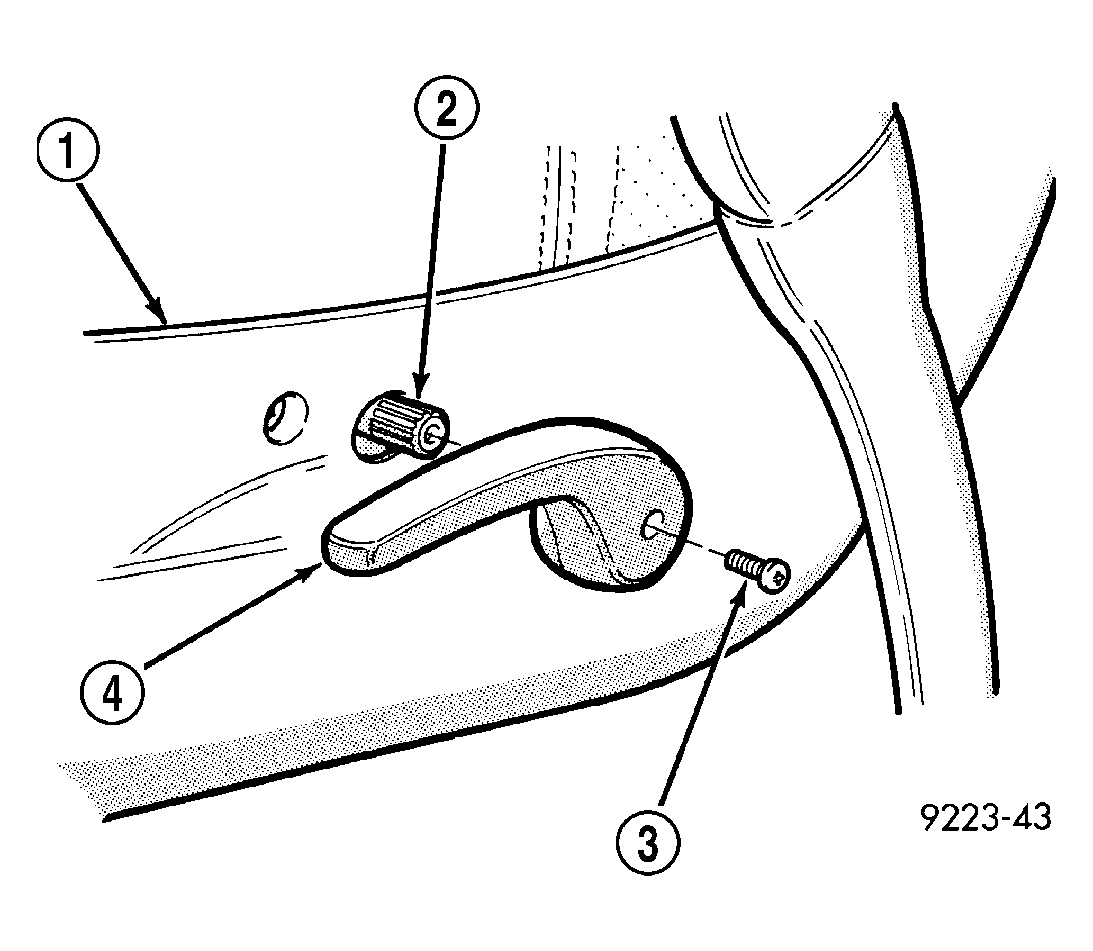

Fig 1: RECLINER HANDLE - MANUAL
GC0001142Courtesy of DAIMLERCHRYSLER CORP.
1 - CUSHION SIDE COVER
2 - RECLINER SPLINE
3 - SCREW
4 - RECLINER HANDLE
