Upper Adjuster Outboard And Rear Shield

  1. Remove front attaching screw. See Figure.
  2. Pull rear edge away from upper adjuster outboard rear shield to release locking tab.
  3. Remove upper adjuster outboard rear shield attaching screw and remove shield.

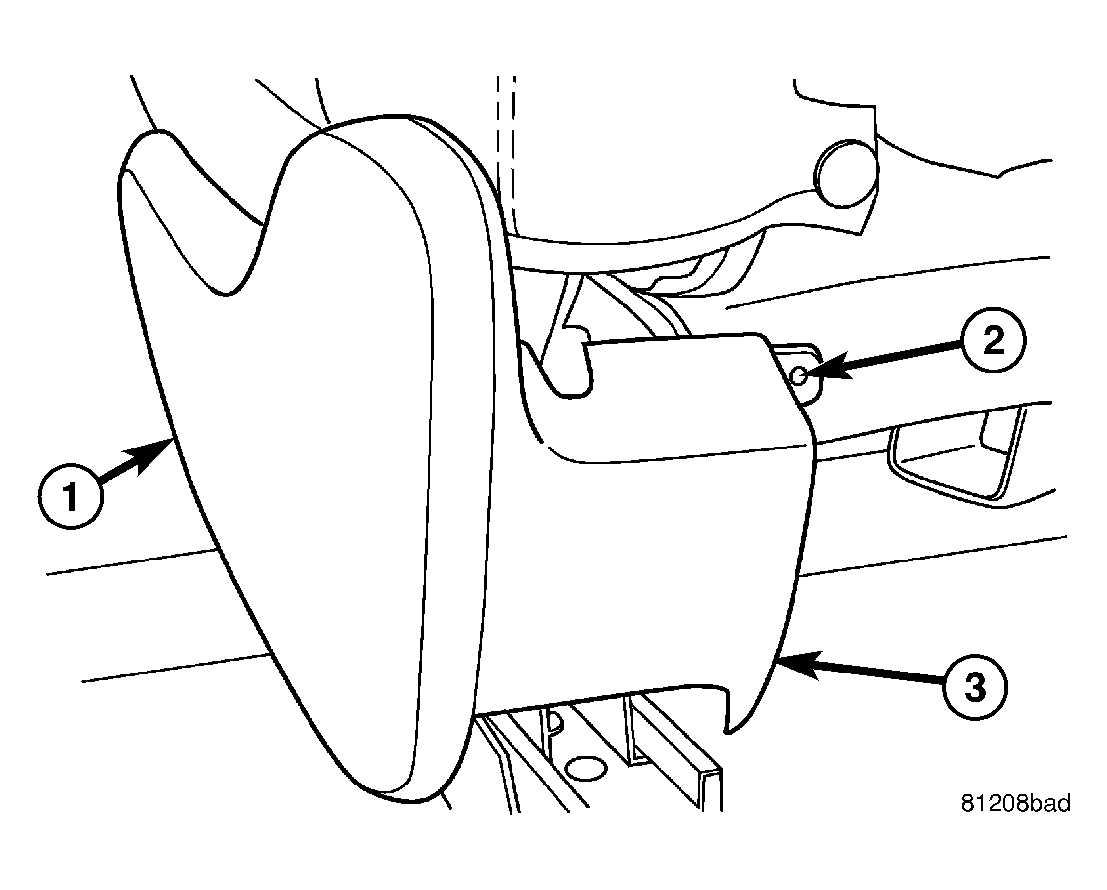

Fig 1: UPPER ADJUSTER OUTBOARD REAR SHIELD
GC0001121Courtesy of DAIMLERCHRYSLER CORP.
1 - UPPER ADJUSTER OUTBOARD SHIELD
2 - ATTACHING SCREW
3 - UPPER ADJUSTER OUTBOARD REAR SHIELD
