Front Seat Shields: Removal: Notes

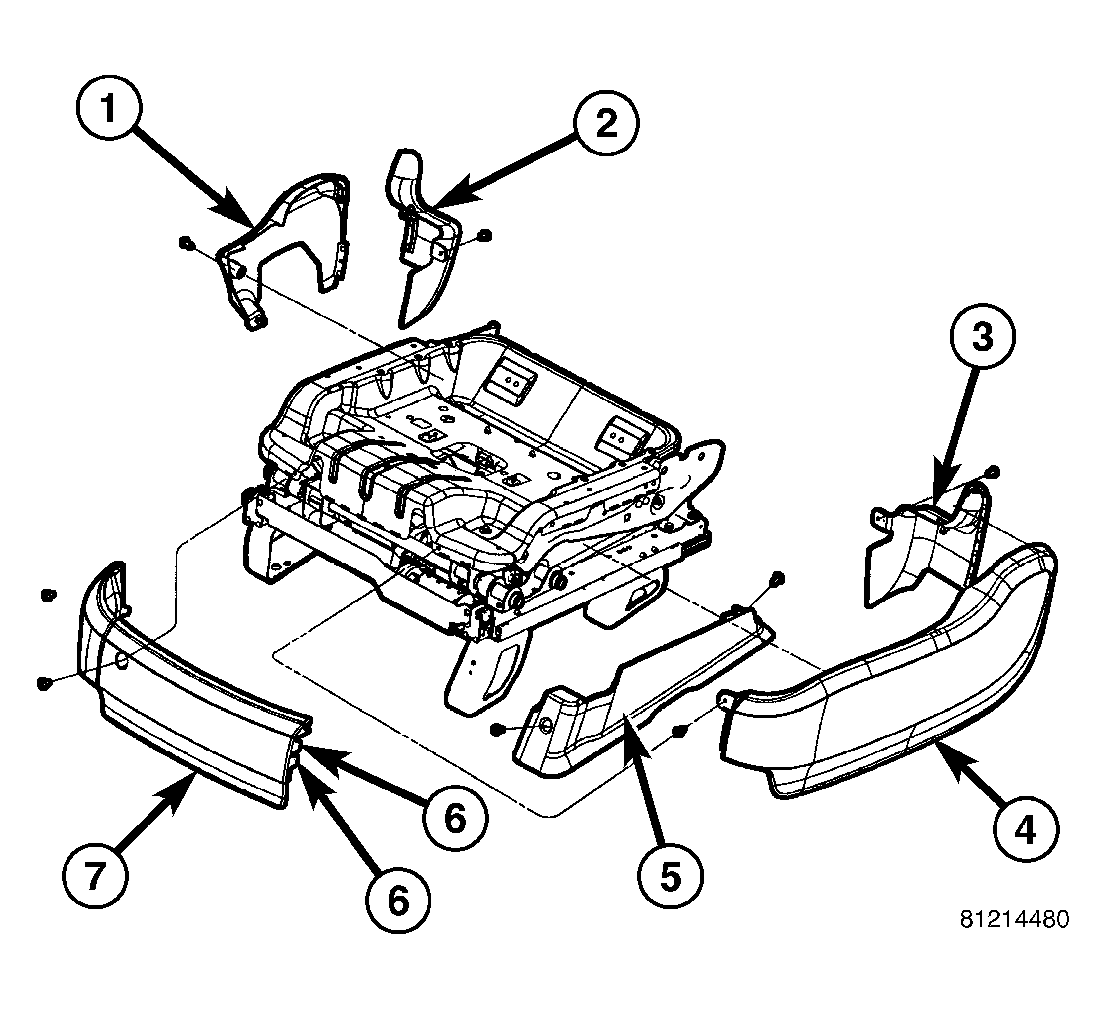

The front seat shield positions and attachment points. See Fig 1.

Fig 1: FRONT SEAT SHIELDS

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPPER ADJUSTER INBOARD SHIELD

2 - UPPER ADJUSTER INBOARD REAR SHIELD

3 - UPPER ADJUSTER OUTBOARD REAR SHIELD

4 - UPPER ADJUSTER OUTBOARD SHIELD

5 - LOWER RISER OUTBOARD SHIELD

6 - LOCKING TABS

7 - FRONT SHIELD
