Front Shield

  1. Remove front shield attaching screws. See Fig 1.

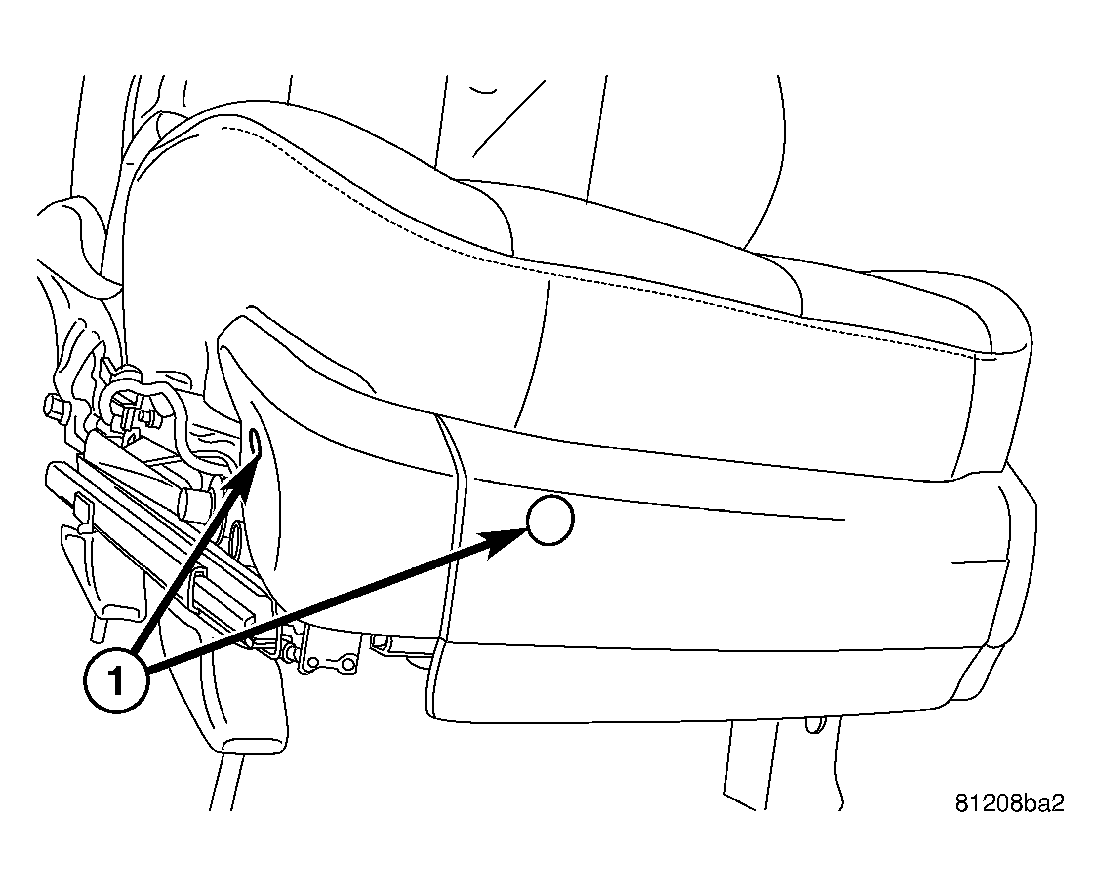

    Fig 1: FRONT SEAT FRONT SHIELD
    GC0001120Courtesy of DAIMLERCHRYSLER CORP.
    1 - ATTACHING SCREWS
  2. Pull forward on front shield edge by the upper adjuster outboard shield to disengage locking tabs. See Figure and Fig 2.
  3. Remove front shield.

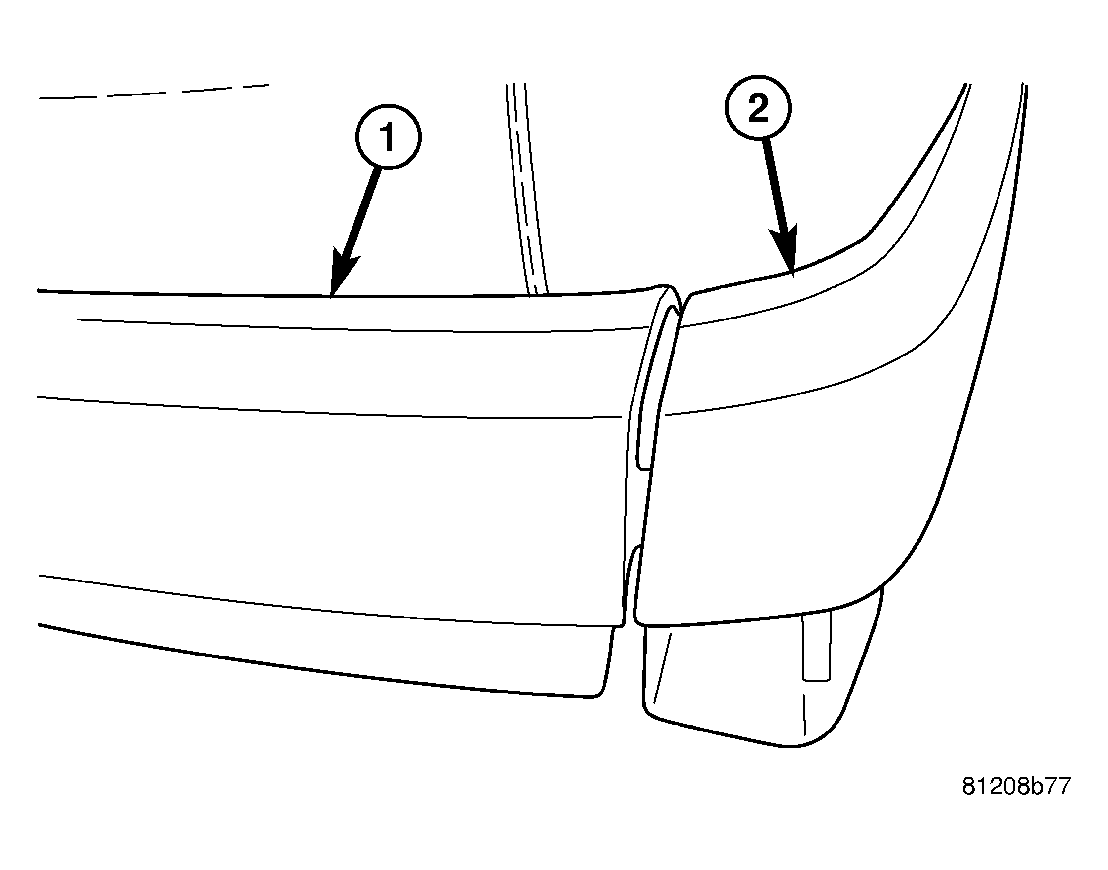

Fig 2: FRONT SEAT FRONT SHIELD LOCKING TABS
GC0001119Courtesy of DAIMLERCHRYSLER CORP.
1 - UPPER ADJUSTER OUTBOARD SHIELD
2 - FRONT SHIELD
