Front Seat Back Panel: Removal

Using a trim tool C-4755 or equivalent, disengage the front seat. See Fig 1 and Fig 2.

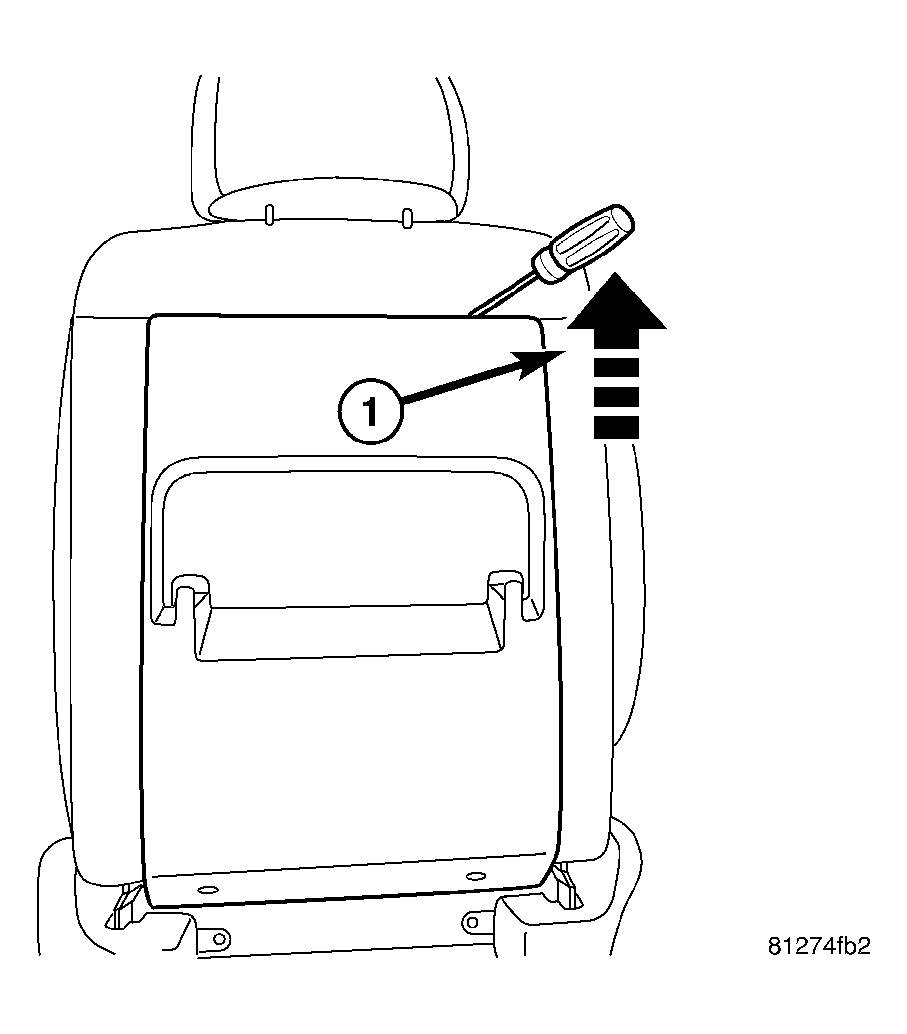

Fig 1: FRONT SEAT BACK PANEL
Courtesy of DAIMLERCHRYSLER CORP.

1 - PRY SEAT COVER PANEL OUTWARD AND DOWN TO RELEASE HOOKS.

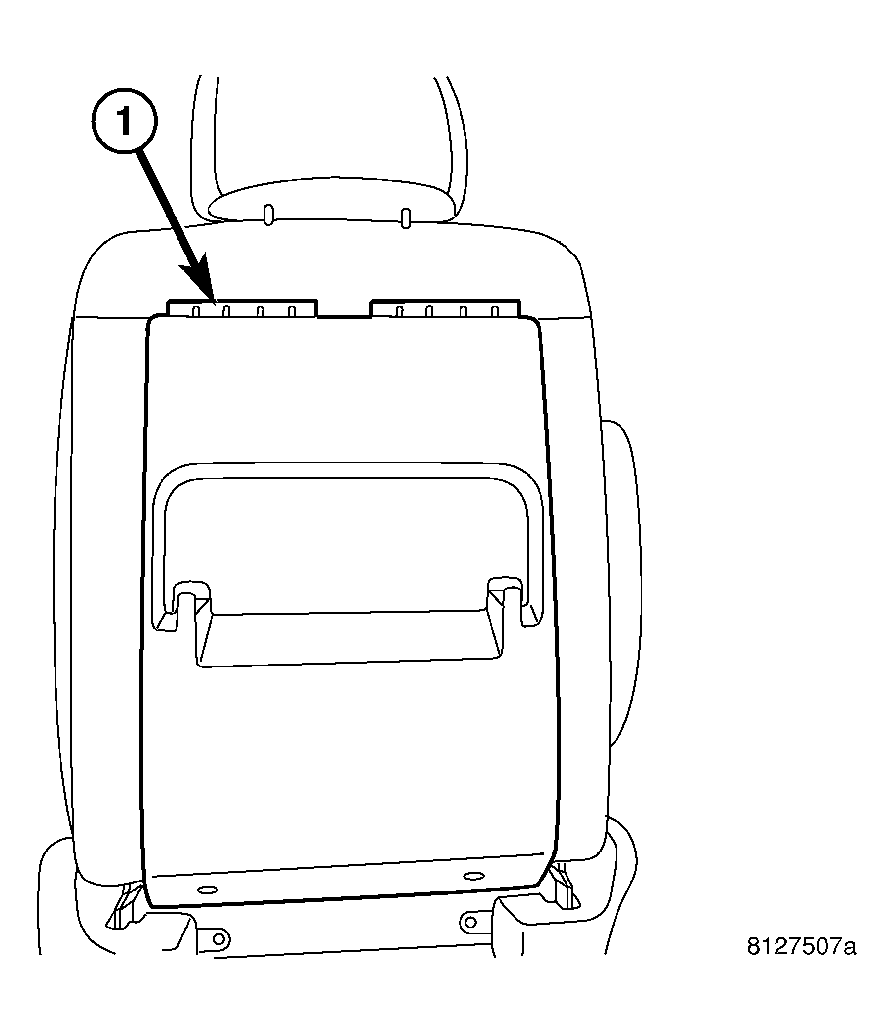

Fig 2: TOP HOOK
Courtesy of DAIMLERCHRYSLER CORP.

1 - TOP HOOKS EXPOSED
Pushing the top edge of back panel outward and pushing upward that the same time till lower hooks are clear of the lower metal bracket. See Fig 3.

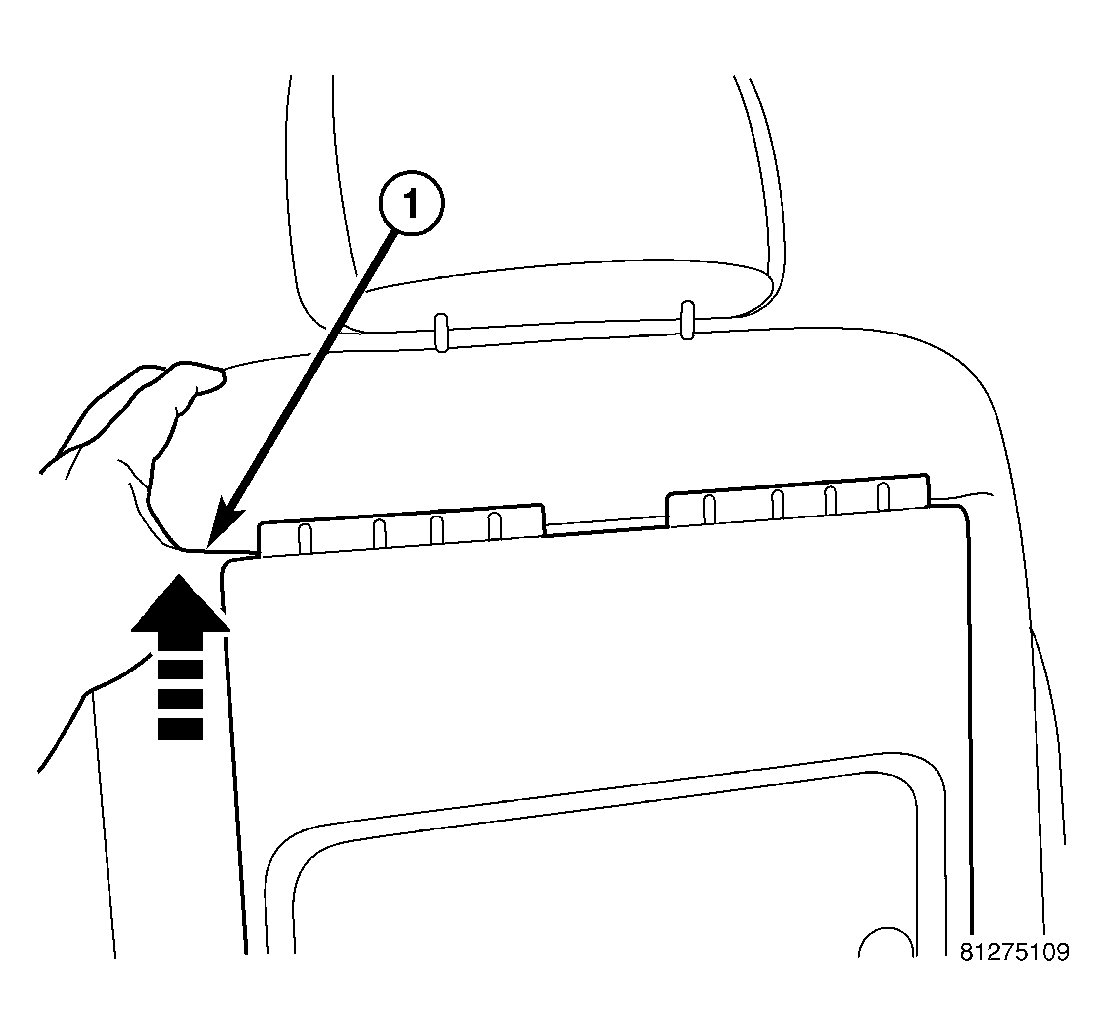

Fig 3: RELEASE LOWER HOOKS
Courtesy of DAIMLERCHRYSLER CORP.

1 - PUSHING OUTWARD AND UPWARD
Gently rotate the seat back panel clockwise until upper left hook and lower right hook disengage from trim ring. See Fig 4.

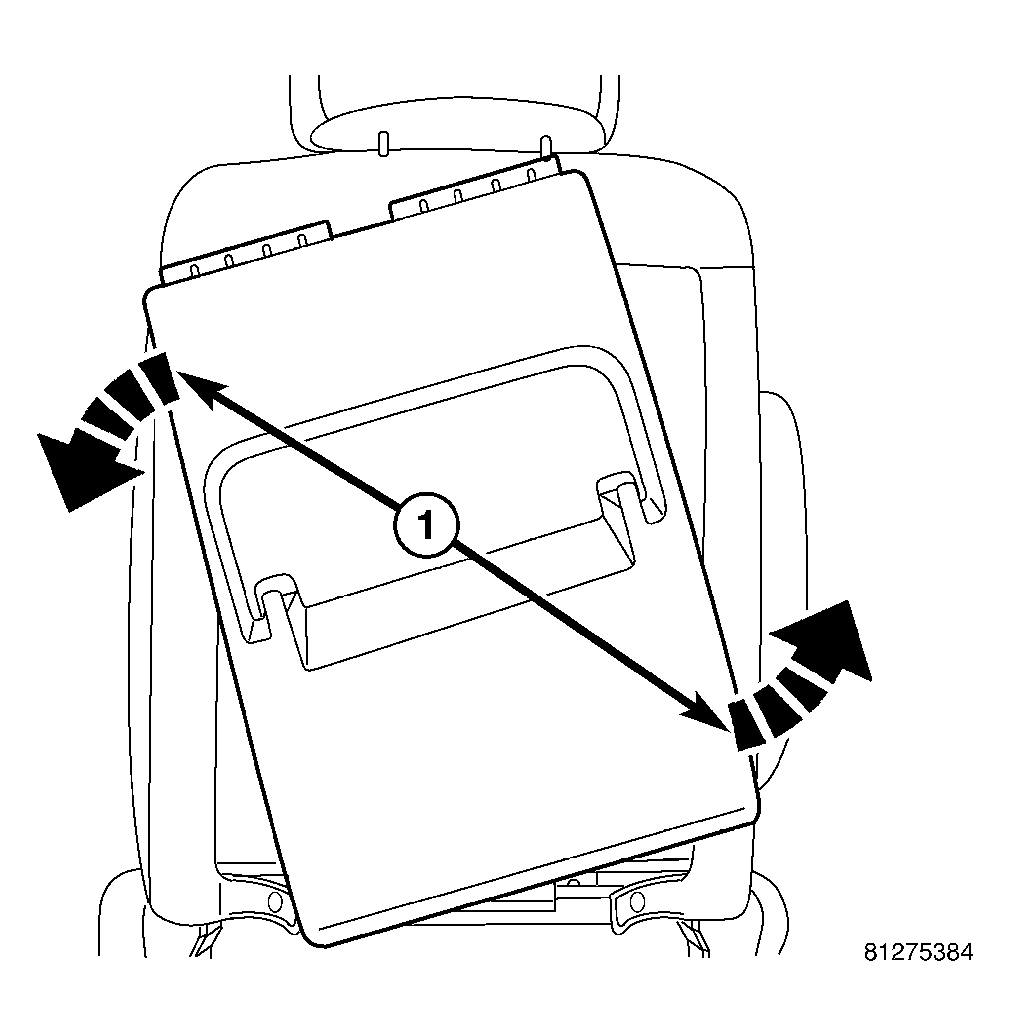

Fig 4: ROTATE SEAT BACK PANEL CLOCKWISE
Courtesy of DAIMLERCHRYSLER CORP.

1 - ROTATE CLOCKWISE
Gently rotate the seat back panel counter clockwise until upper right hook and lower left hook disengage from trim ring and remove front seat back panel for seat back. See Fig 5.

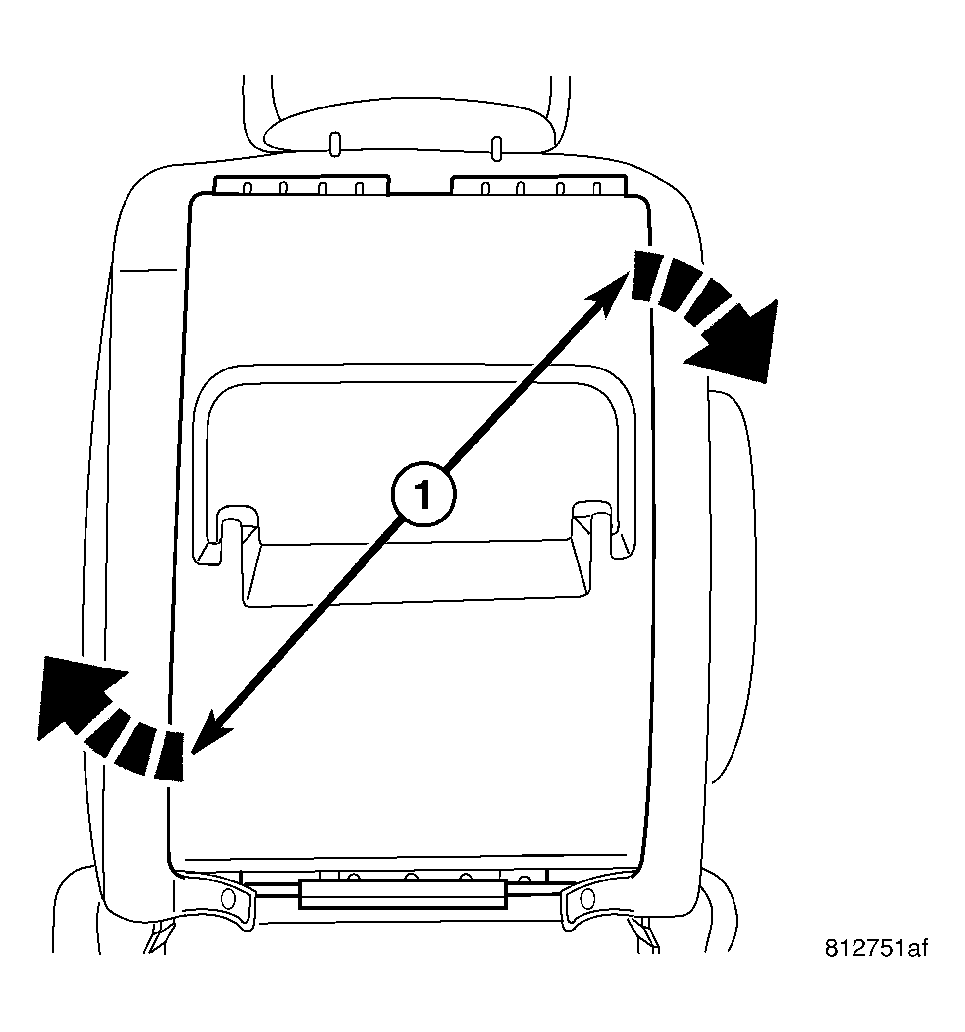

Fig 5: ROTATE SEAT BACK PANEL COUNTER CLOCKWISE

Courtesy of DAIMLERCHRYSLER CORP.

1 - ROTATE COUNTER CLOCKWISE
