Latch Striker: Removal

Mark outline of door striker on C-pillar to aid in installation.
Remove screws attaching door latch striker to C-pillar. See Fig 1.
Remove door latch striker from vehicle.
Retrieve any shims found between latch striker and C-pillar.

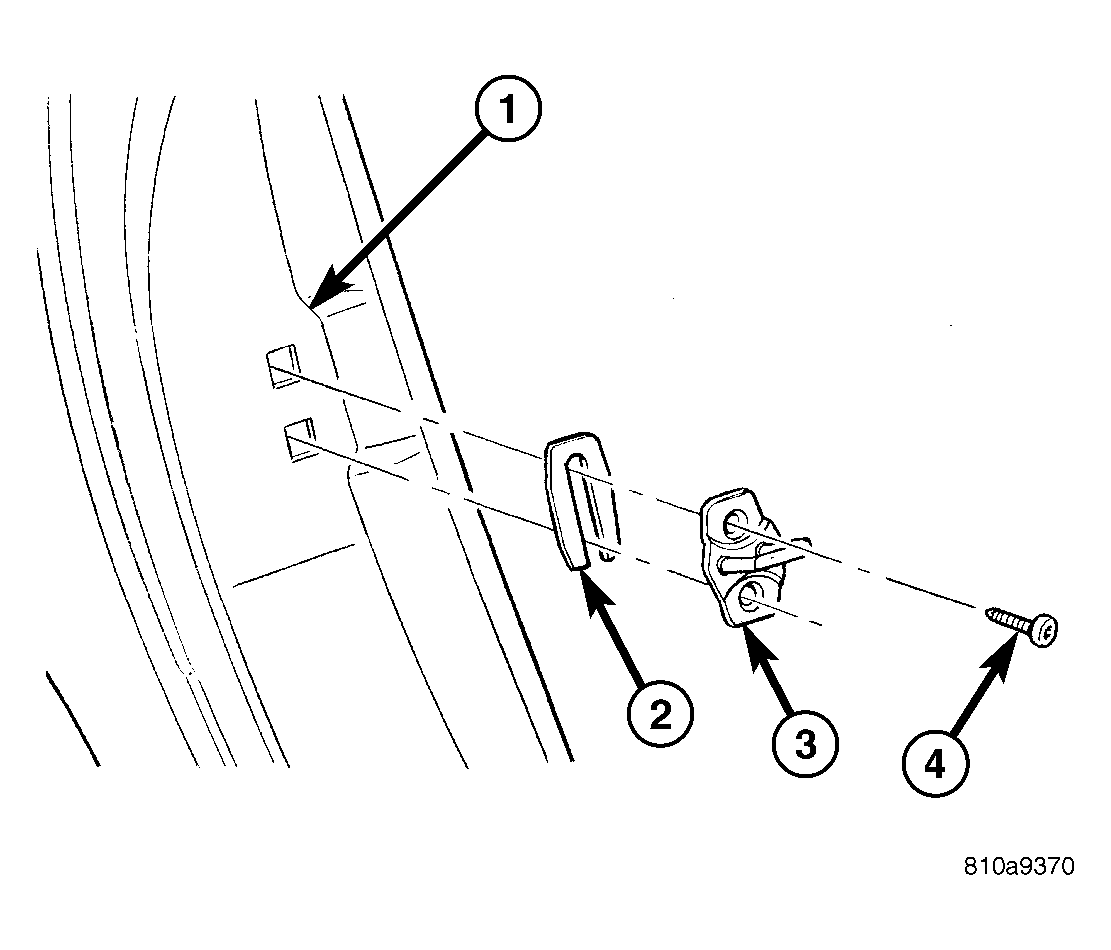

Fig 1: DOOR LATCH STRIKER

GC0001008

Courtesy of DAIMLERCHRYSLER CORP.

1 - C-PILLAR

2 - DOOR LATCH STRIKER SPACER

3 - DOOR LATCH STRIKER

4 - ATTACHING SCREW(S)
