Removal - Lower

Release liftgate latch and open liftgate.
Remove liftgate upper trim panel. (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL - REMOVAL) .
Remove two (2) upper screws attaching trim panel. See Fig 1.
Remove six (6) lower screws attaching trim panel.
Remove liftgate trim panel from vehicle.
Gently pull trim panel away from liftgate to disengage pins and grommets.
Remove trim panel from vehicle.

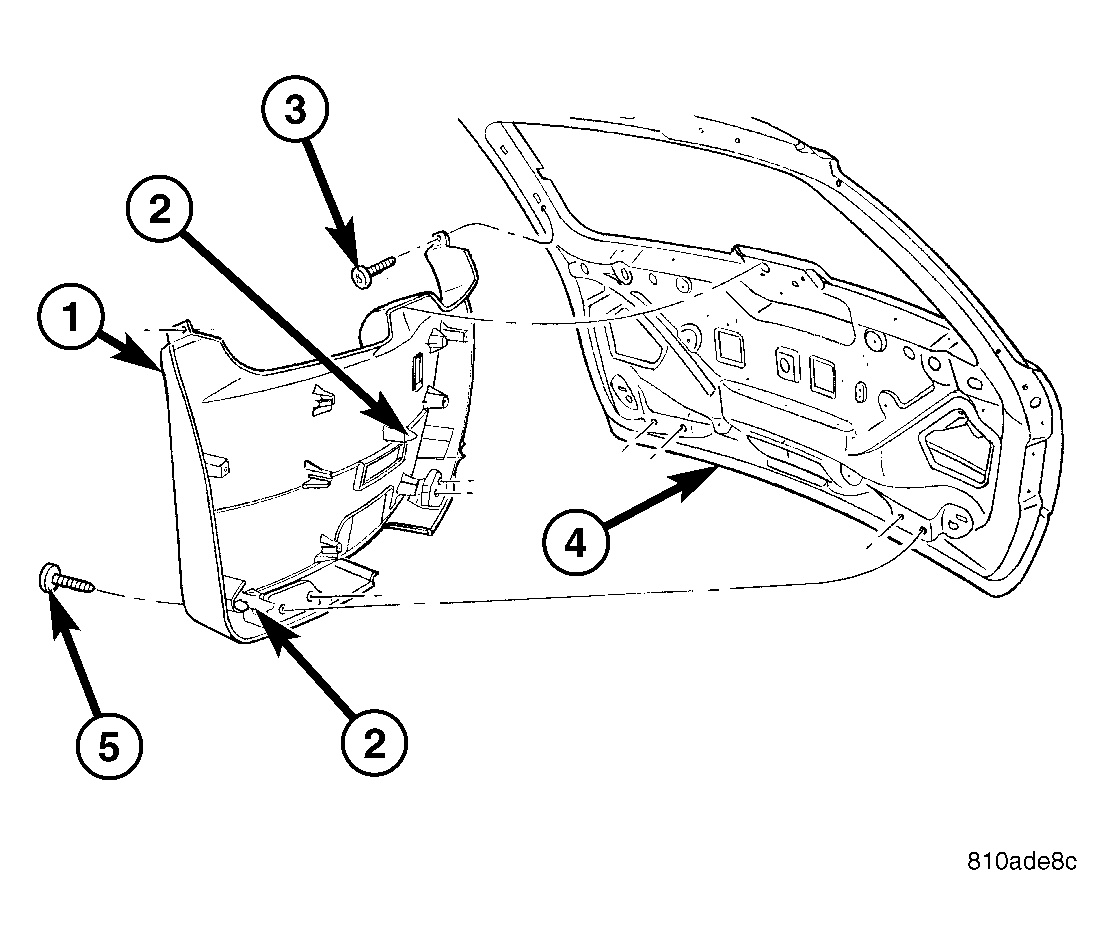

Fig 1: LIFTGATE LOWER TRIM PANEL

Courtesy of DAIMLERCHRYSLER CORP.

1 - LIFTGATE LOWER TRIM PANEL

2 - LOCATING PIN

3 - LOWER TRIM PANEL UPPER SCREW(S)

4 - LIFTGATE

5 - LOWER TRIM PANEL LOWER SCREW(S)
