Removal - Liftgate Side

  1. Open liftgate.

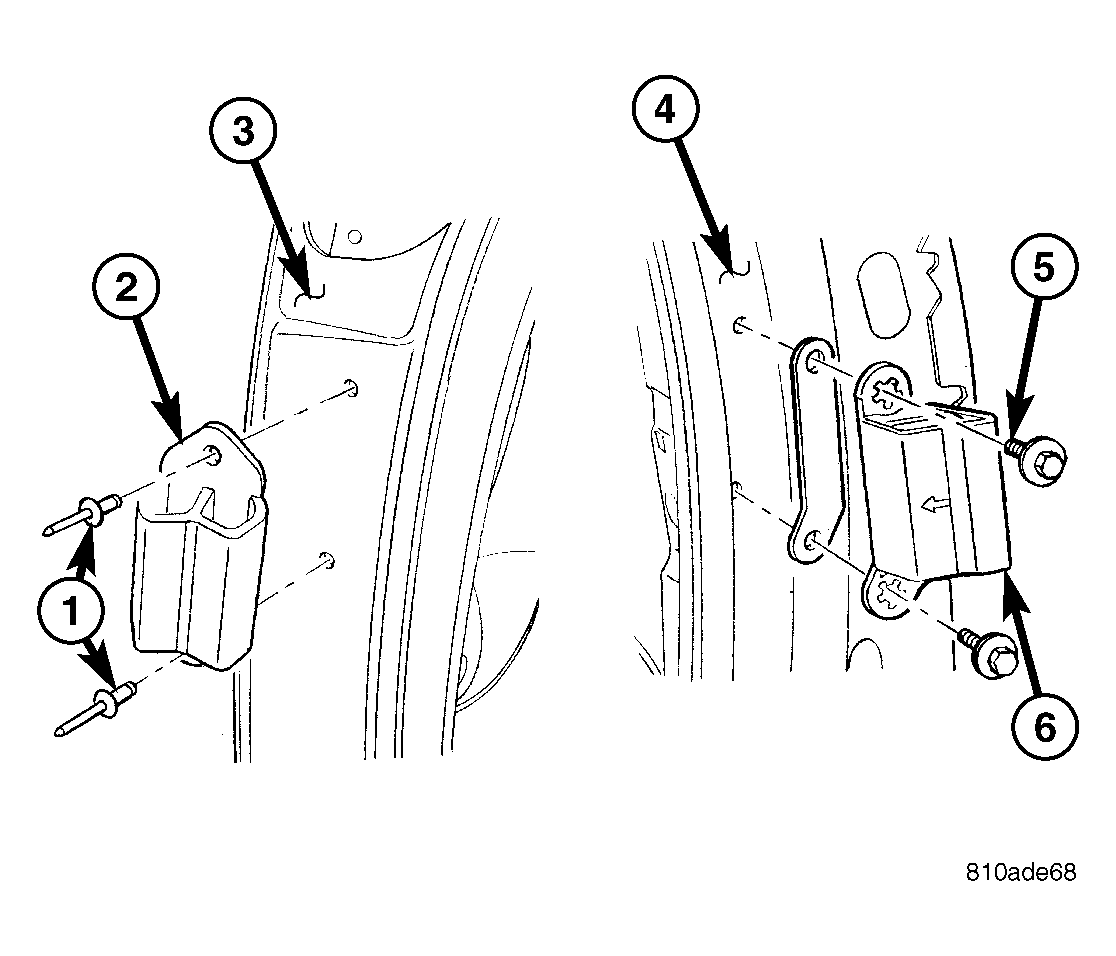

  2. Remove liftgate stop bumper liftgate side attaching rivets by drilling out old rivets. See Figure. Recover rivet chips from inside of liftgate to prevent rattles.
  3. Remove liftgate stop bumper.
