Prop Rod Assembly: Removal

Open the liftgate and support.
Using a small flat bladed tool, or equivalent, release the retaining clips while pulling the ball socket away from the ball stud. See Fig 1
NOTE: Lift the clips only enough to release the ball studs. See Fig 2
Remove the support cylinder.

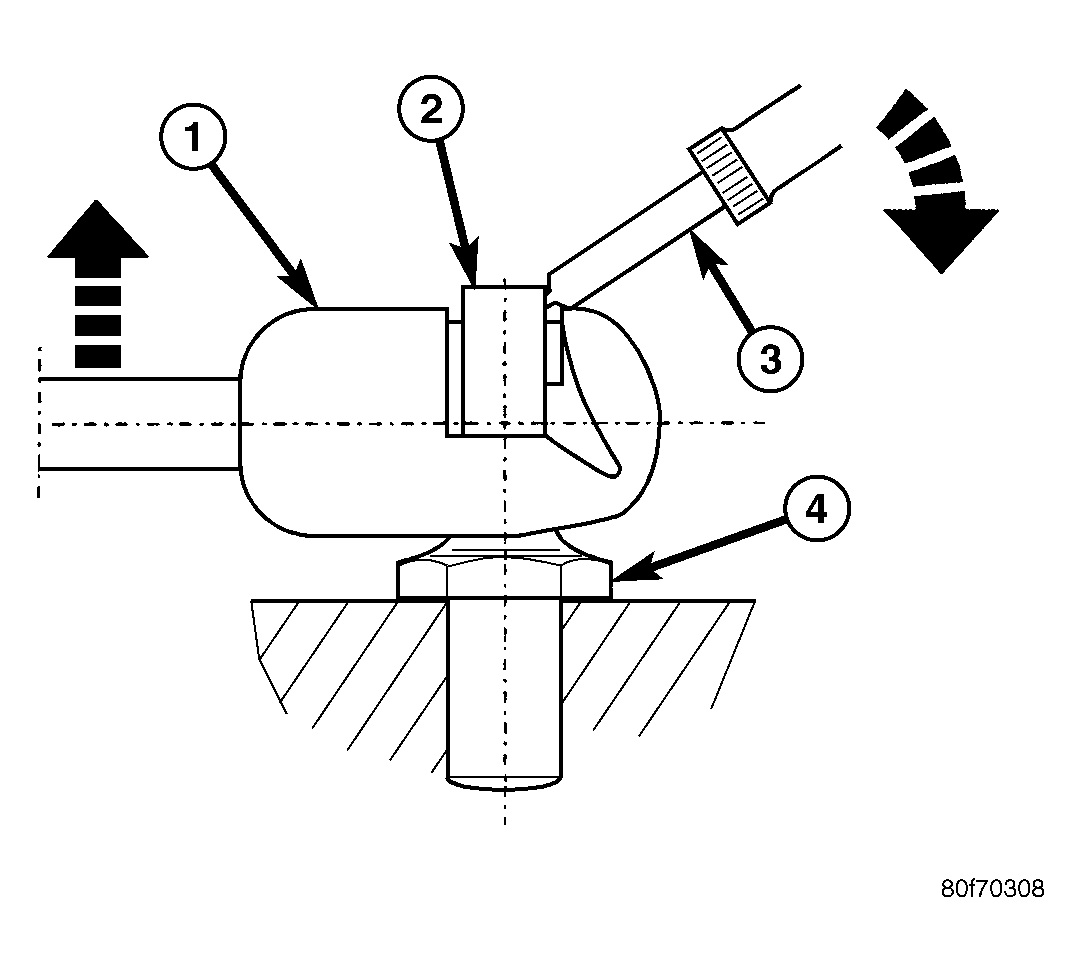

Fig 1: SUPPORT CYLINDER REMOVAL

Courtesy of DAIMLERCHRYSLER CORP.

1 - BALL SOCKET

2 - RETAINING CLIP

3 - FLAT BLADED TOOL

4 - BALL STUD

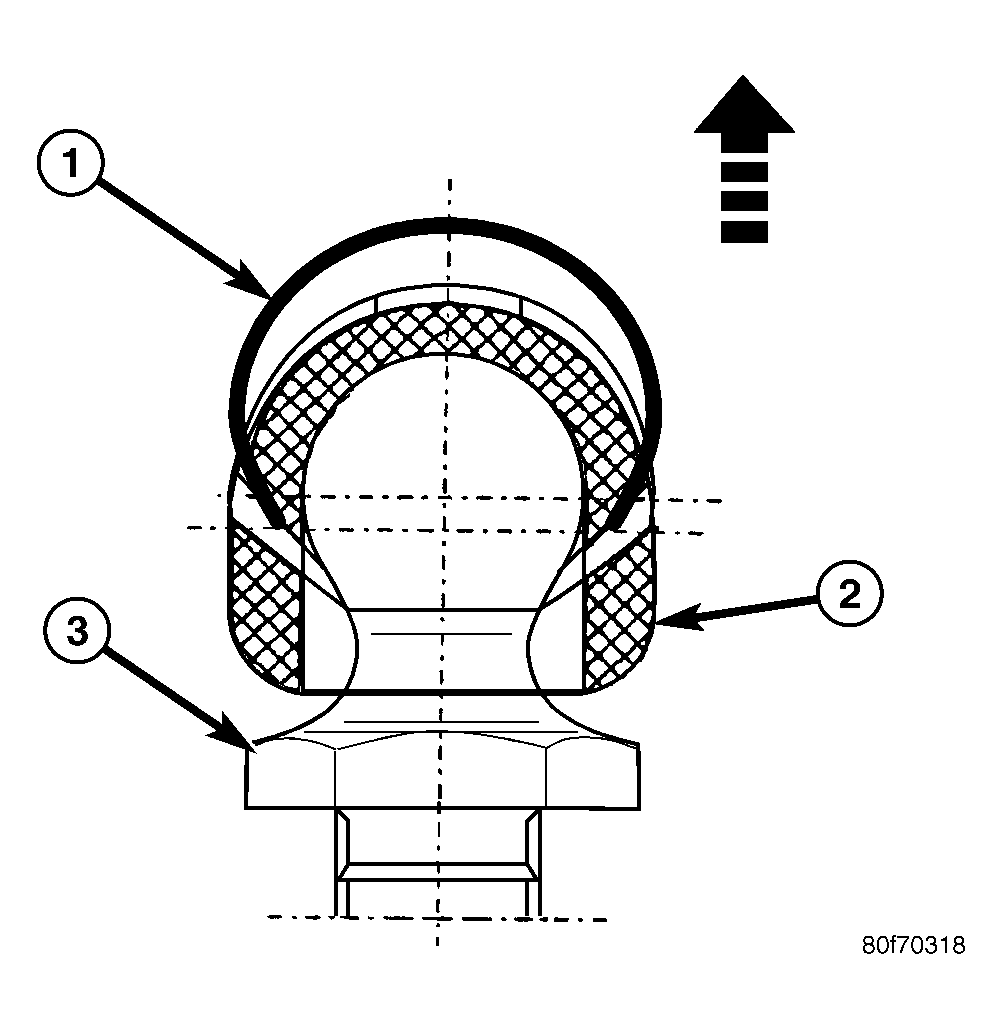

Fig 2: SUPPORT CYLINDER RETAINING CLIP

Courtesy of DAIMLERCHRYSLER CORP.

1 - RETAINING CLIP

2 - BALL SOCKET

3 - BALL STUD
