Body - Interior & Exterior: Liftgate: Latch: Removal

1. Remove liftgate trim panel.
2. Disengage outside handle link from clip on latch.
3. Disconnect wire connector from liftgate latch. See Fig 1.
4. Remove screws attaching latch to liftgate.
5. Remove latch from vehicle.

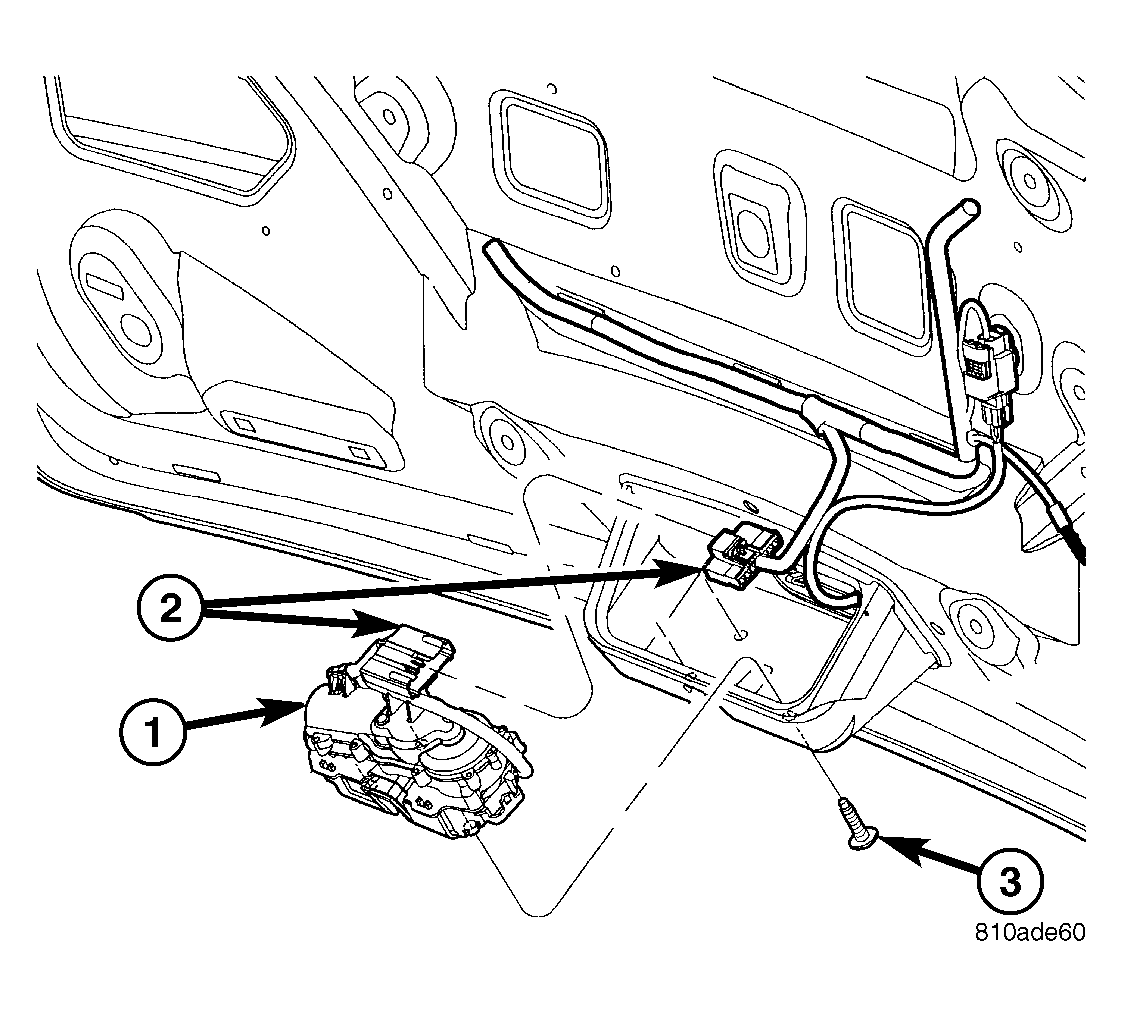

Fig 1: LIFTGATE LATCH

Courtesy of DAIMLERCHRYSLER CORP.

1 - LIFTGATE LATCH ASSEMBLY

2 - WIRE CONNECTOR - POWER LOCK HARNESS

3 - ATTACHING SCREW(S)
