Prop Rod: Removal

  1. Open hood and use something to support hood.
  2. Remove screw attaching prop rod to radiator crossmember. See Fig 1.
  3. Remove prop rod from vehicle.

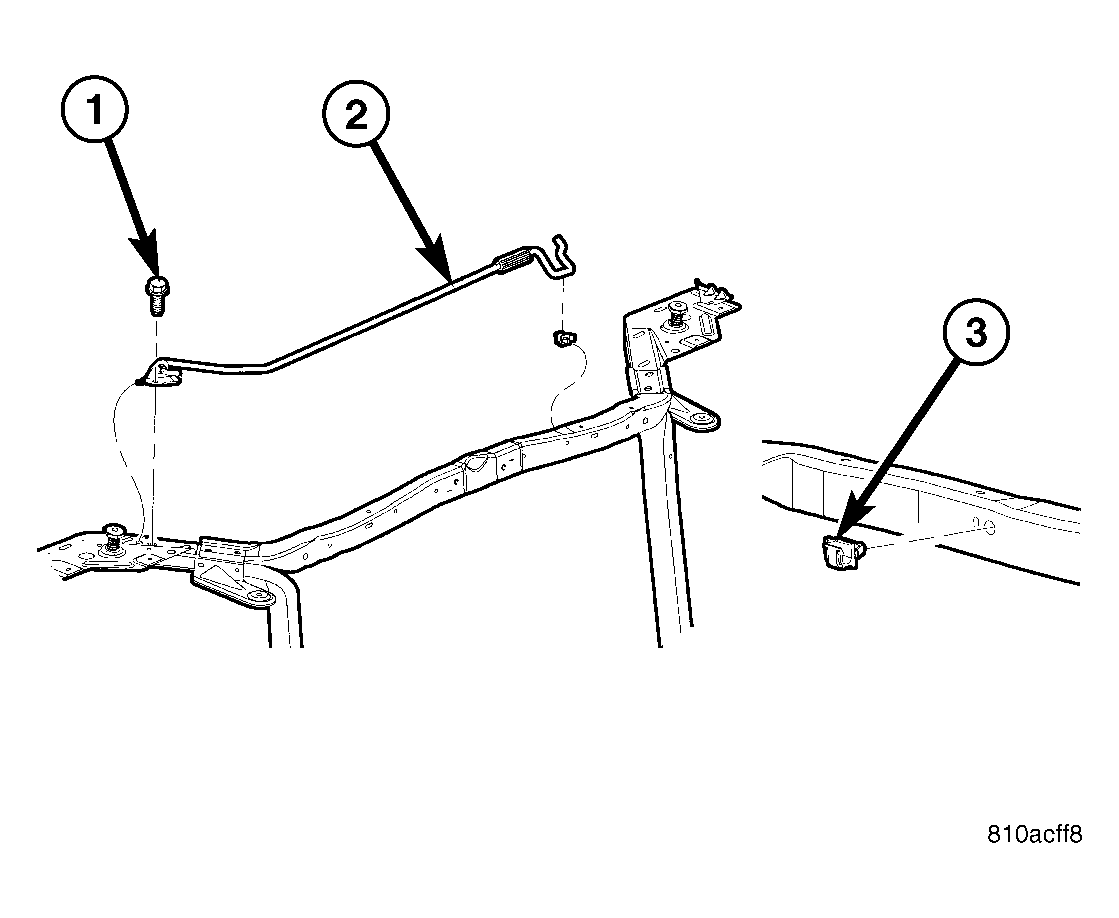

Fig 1: HOOD PROP ROD
GC0001061Courtesy of DAIMLERCHRYSLER CORP.
1 - ATTACHING SCREW
2 - HOOD PROP ROD
3 - PROP ROD STORAGE CLIP
