Body - Interior & Exterior: Hood: Emblem: Removal

1. Open hood.
2. Remove 3 attaching nuts. See Fig 1.
3. Remove emblem from hood.

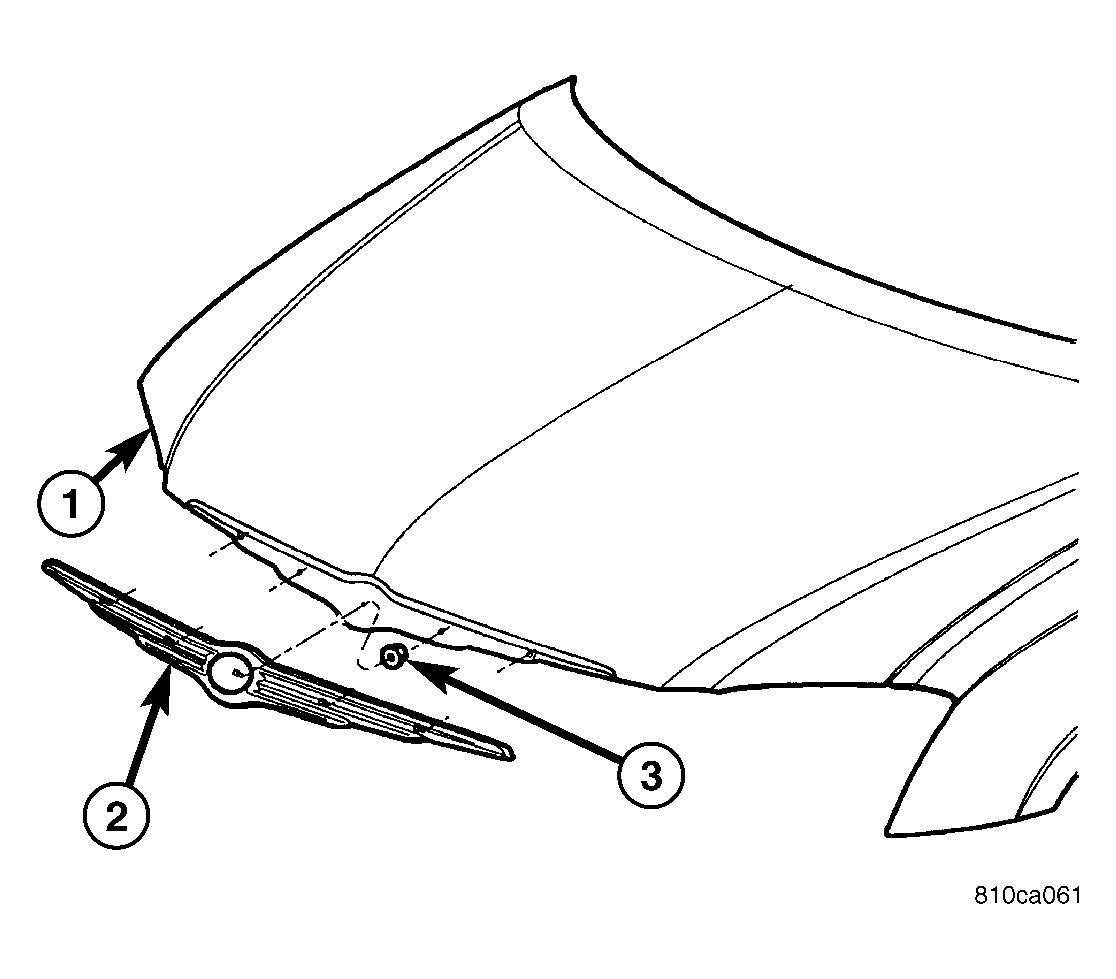

Fig 1: HOOD OUTER BRIGHT EMBLEM

Courtesy of DAIMLERCHRYSLER CORP.

1 - HOOD

2 - HOOD EMBLEM

3 - ATTACHING NUTS (3)
