Adjustment Bumper: Removal

  1. Open hood.
  2. Turn adjustment bumper out. See Fig 1.
  3. Remove bumper from radiator crossmember bracket.

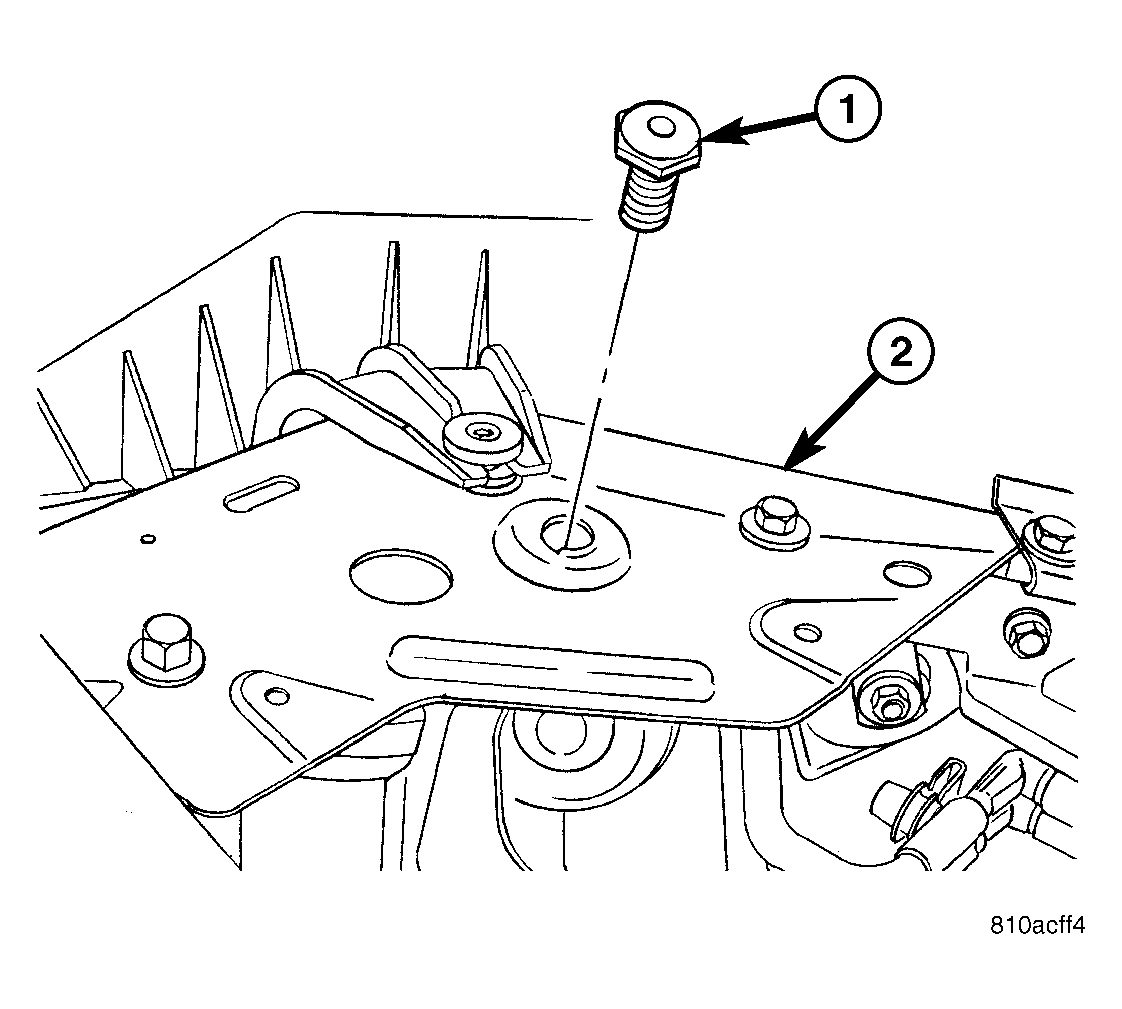

Fig 1: HOOD ADJUSTMENT BUMPER
GC0001052Courtesy of DAIMLERCHRYSLER CORP.
1 - HOOD ADJUSTMENT BUMPER
2 - UPPER RADIATOR CROSSMEMBER BRACKET
