Trim Panel: Notes

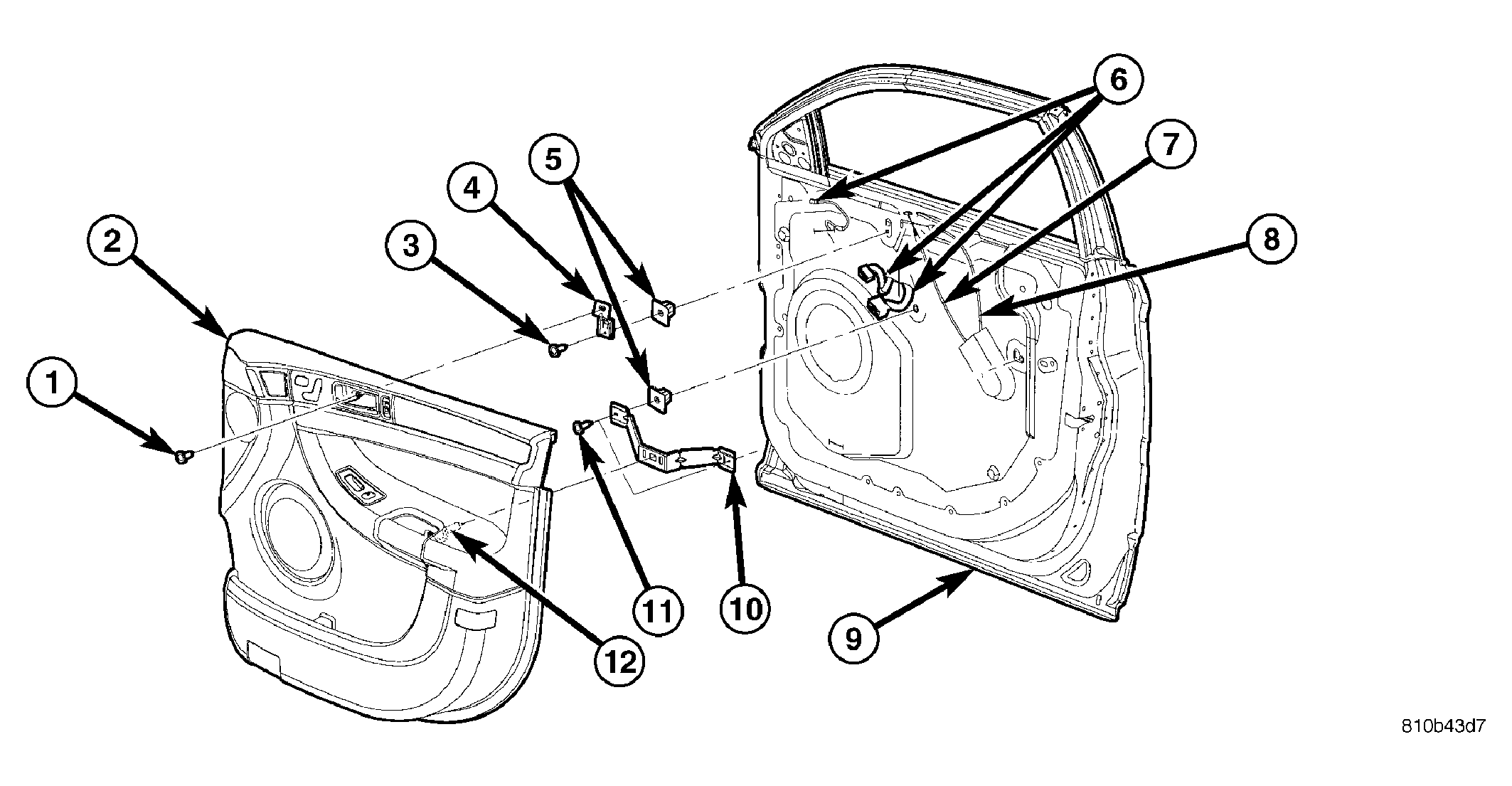

Fig 1: REMOVE DOOR TRIM PANEL

GC0000974

Courtesy of DAIMLERCHRYSLER CORP.

1 - REMOTE HANDLE BEZEL TO DOOR SCREW

2 - DOOR TRIM PANEL

3 - REMOTE HANDLE BRACKET TO DOOR SCREW

4 - DOOR INSIDE REMOTE HANDLE BRACKET

5 - PLASTIC NUT

6 - DOOR WIRE HARNESS

7 - REMOTE LOCK FRONT ACTUATOR CABLE

8 - RELEASE HANDLE FRONT ACTUATOR CABLE

9 - FRONT DOOR

10 - DOOR PULL CUP BRACKET

11 - PULL HANDLE BRACKET TO DOOR SCREW

12 - FASTENER CLIP
