Front Door: Latch: Removal
- Remove door trim panel and watershield. (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) and (Refer to BODY/DOOR - FRONT/WATERSHIELD - REMOVAL) .
- Raise door glass.
- Disconnect clips holding key cylinder and latch rods to outside door handle. See Fig 1.
- Disengage wire connector from power door lock motor and push pin from latch.
- Disengage retainer that attaches latch cover to inner panel.
- Remove impact foam attaching screws.
- Remove screws attaching latch to door inner panel.NOTE: The latch must be lowed below the window regulator rear guide rail, for removal.
- Remove door latch from door, using care not to damage cables or rods.

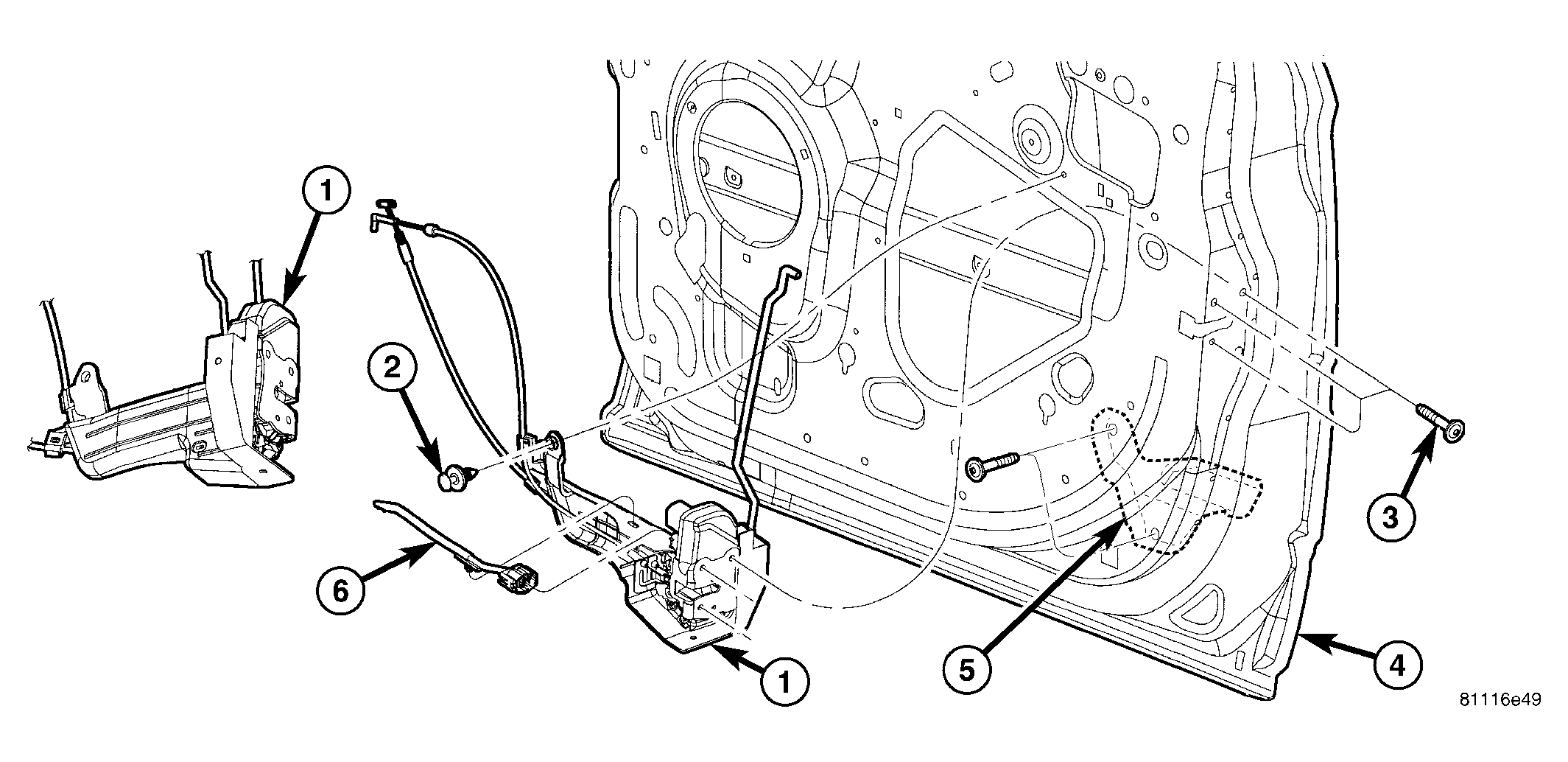

| 1 - DOOR POWER LOCK LATCH ASSEMBLY |
| 2 - LATCH COVER TO INNER PANEL RETAINER |
| 3 - LATCH ATTACHING SCREWS |
| 4 - FRONT DOOR |
| 5 - IMPACT FOAM |
| 6 - DOOR WIRING HARNESS |
