Latch Striker: Removal

Mark outline of door striker on B-pillar to aid in installation.
Remove screws attaching door latch striker to B-pillar. See Fig 1.
Remove door latch striker from vehicle.
Retrieve any shims found between latch striker and B-pillar.

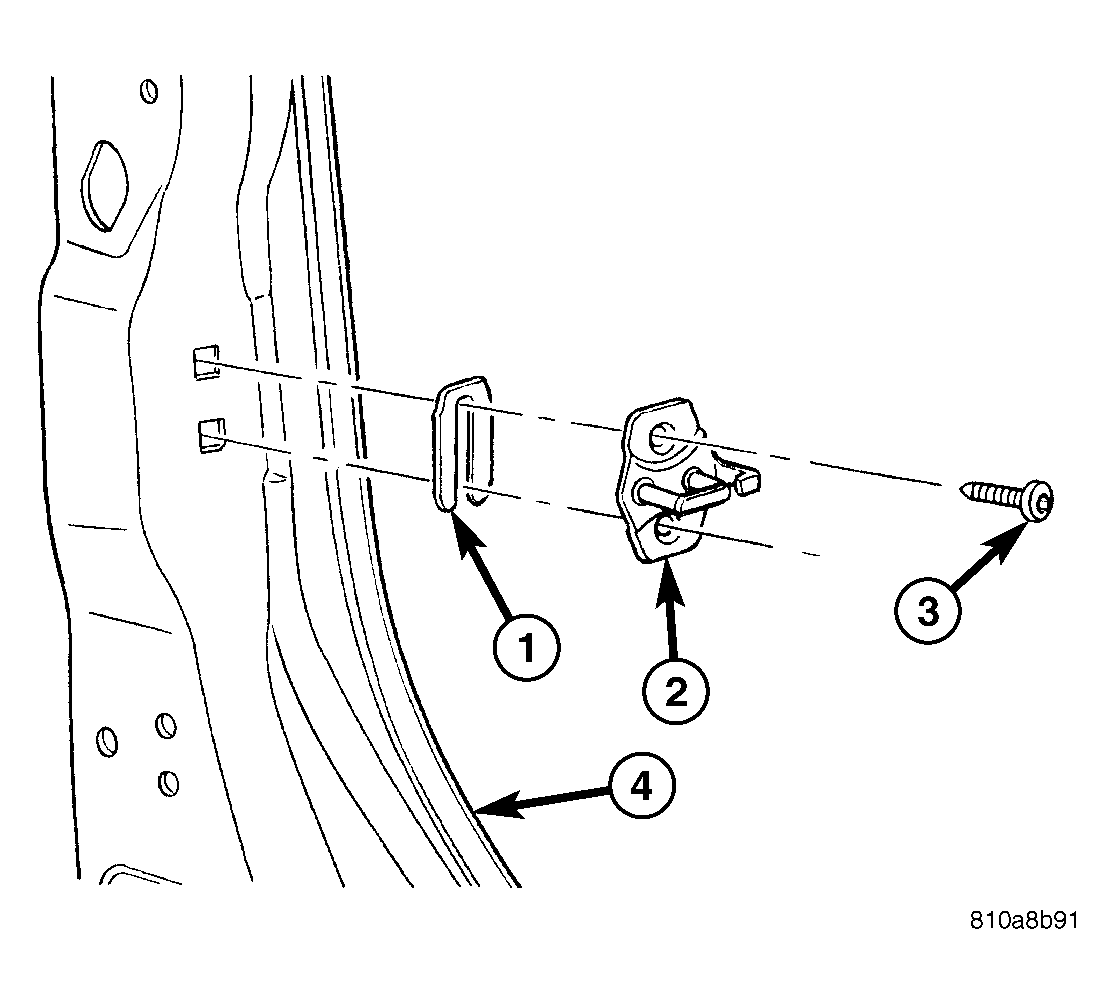

Fig 1: DOOR LATCH STRIKER

GC0000972

Courtesy of DAIMLERCHRYSLER CORP.

1 - DOOR LATCH STRIKER SPACER

2 - DOOR LATCH STRIKER

3 - ATTACHING SCREW(S)

4 - B-PILLAR
