Front Door: Hinge: Removal

NOTE: It is not necessary to remove the door to replace the hinges if they are replace one at a time.

Release front door latch and open door.
Remove check strap from A-pillar. (Refer to BODY/DOOR - FRONT/CHECK STRAP - REMOVAL) .
Mark hinge foot print on both door and pillar to aid when installing door. See Fig 1.
Support door on suitable lifting device.
Remove bolts attaching hinge to A-pillar.
Remove bolts attaching front door to door hinge.
Remove door hinge from vehicle.

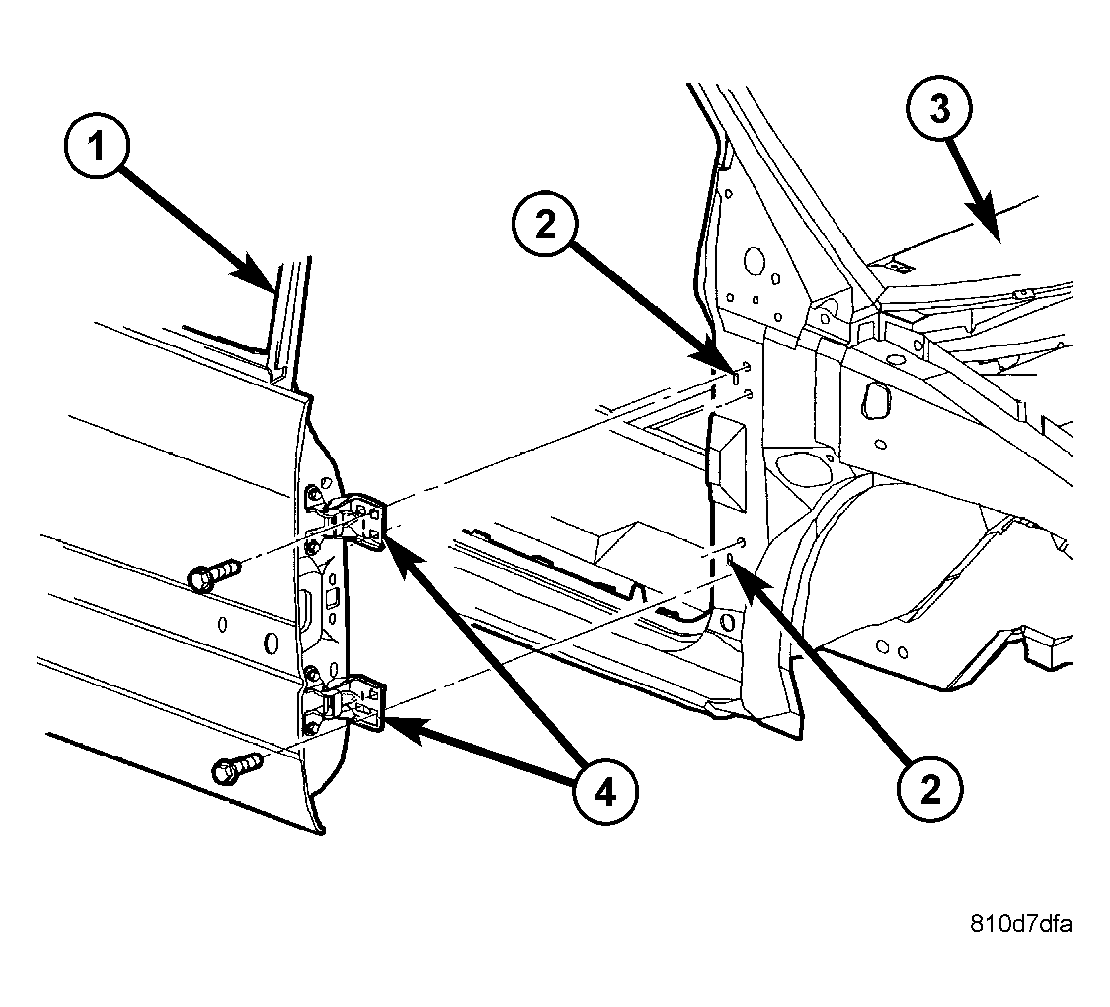

Fig 1: DOOR HINGE

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT DOOR

2 - SLOT(S)

3 - BODY ASSEMBLY

4 - DOOR HINGES
