Glass Run Lower Channel: Removal

Remove door trim panel. (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
Remove watershield an necessary. (Refer to BODY/DOOR - FRONT/WATERSHIELD - REMOVAL) .
Loosen screws attaching door glass run lower channel to inner door panel. See Fig 1.
Remove door glass run lower channel from inner door panel.
Extract door glass run lower channel through front access hole.

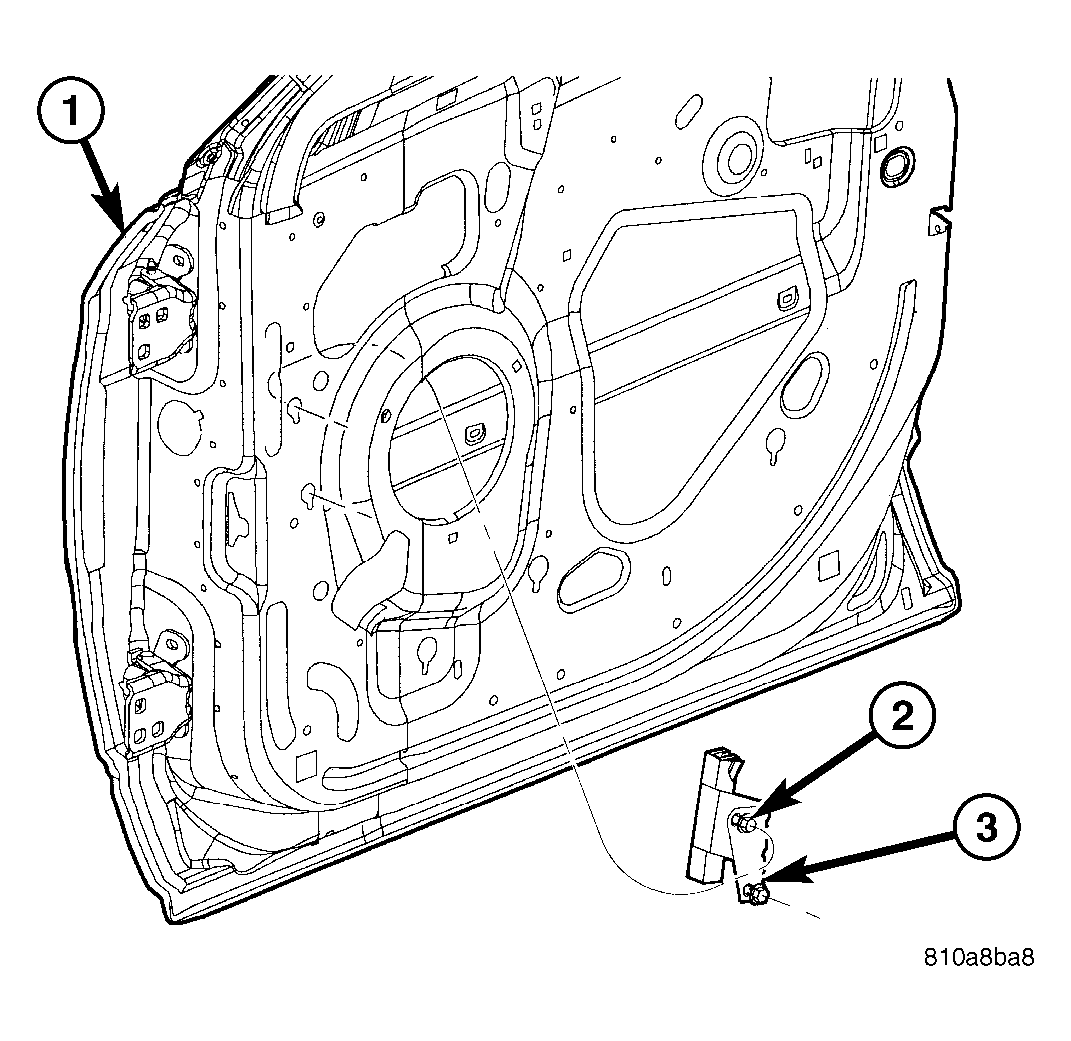

Fig 1: DOOR GLASS RUN LOWER CHANNEL

Courtesy of DAIMLERCHRYSLER CORP.

1 - DOOR ASSEMBLY

2 - GLASS CHANNEL ATTACHING SCREWS

3 - DOOR GLASS RUN LOWER CHANNEL
