Body - Interior & Exterior: Exterior: Spoiler: Removal
- Open liftgate before disconnecting battery.
- Open hood, disconnect and isolate the battery negative cable.
- Open liftgate.
- Disconnect the power liftgate prop rod.
- Remove liftgate trim panel (Refer to REMOVAL ).

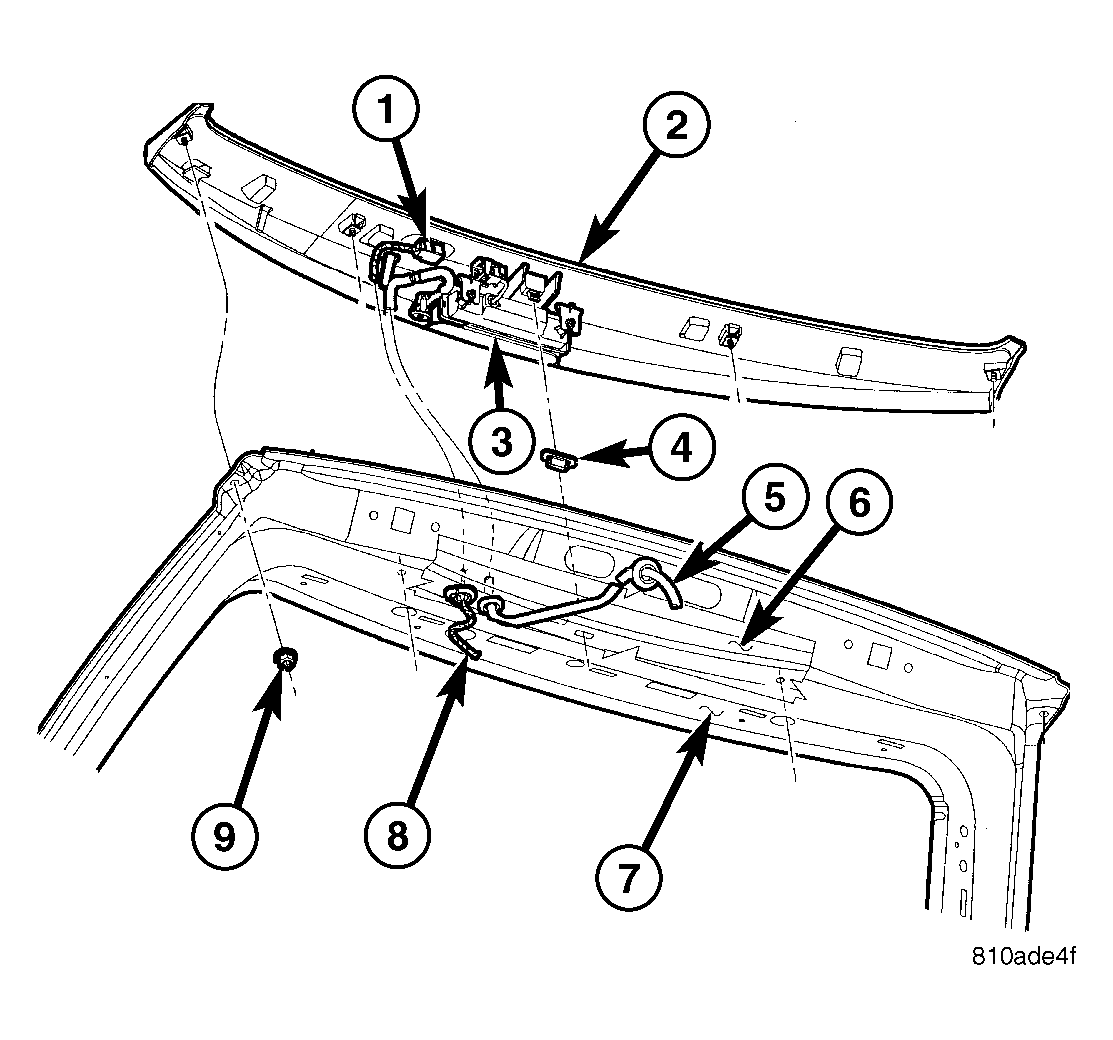

- Remove the four retaining nuts to spoiler. See Fig 1.
- Gently lift spoiler off of outer liftgate panel.
- Disconnect the CHMSL electrical connector.
- Disconnect the washer hose.
- Remove spoiler from vehicle.
- If replacing spoiler, transfer CHMSL lamp to new spoiler.
- If replacing spoiler, transfer washer nozzle to new spoiler.
| 1 - WIRE HARNESS CONNECTORS TO CHMSL LAMP |
| 2 - LIFTGATE SPOILER ASSEMBLY |
| 3 - CHMSL LAMP |
| 4 - ATTACHING GROMMET |
| 5 - GROMMET AND WASHER HOSE |
| 6 - LIFTGATE OUTER PANEL |
| 7 - LIFTGATE INNER PANEL |
| 8 - WIRE HARNESS |
| 9 - ATTACHING NUT(S) |
