Front Wheelhouse Splash Shield: Removal

Hoist and support vehicle on safety stands, as necessary.
Remove front wheel.
Remove five screws and four push pin fasteners attaching splash shield to inner wheelhouse. See Fig 1.
Remove splash shield from vehicle.

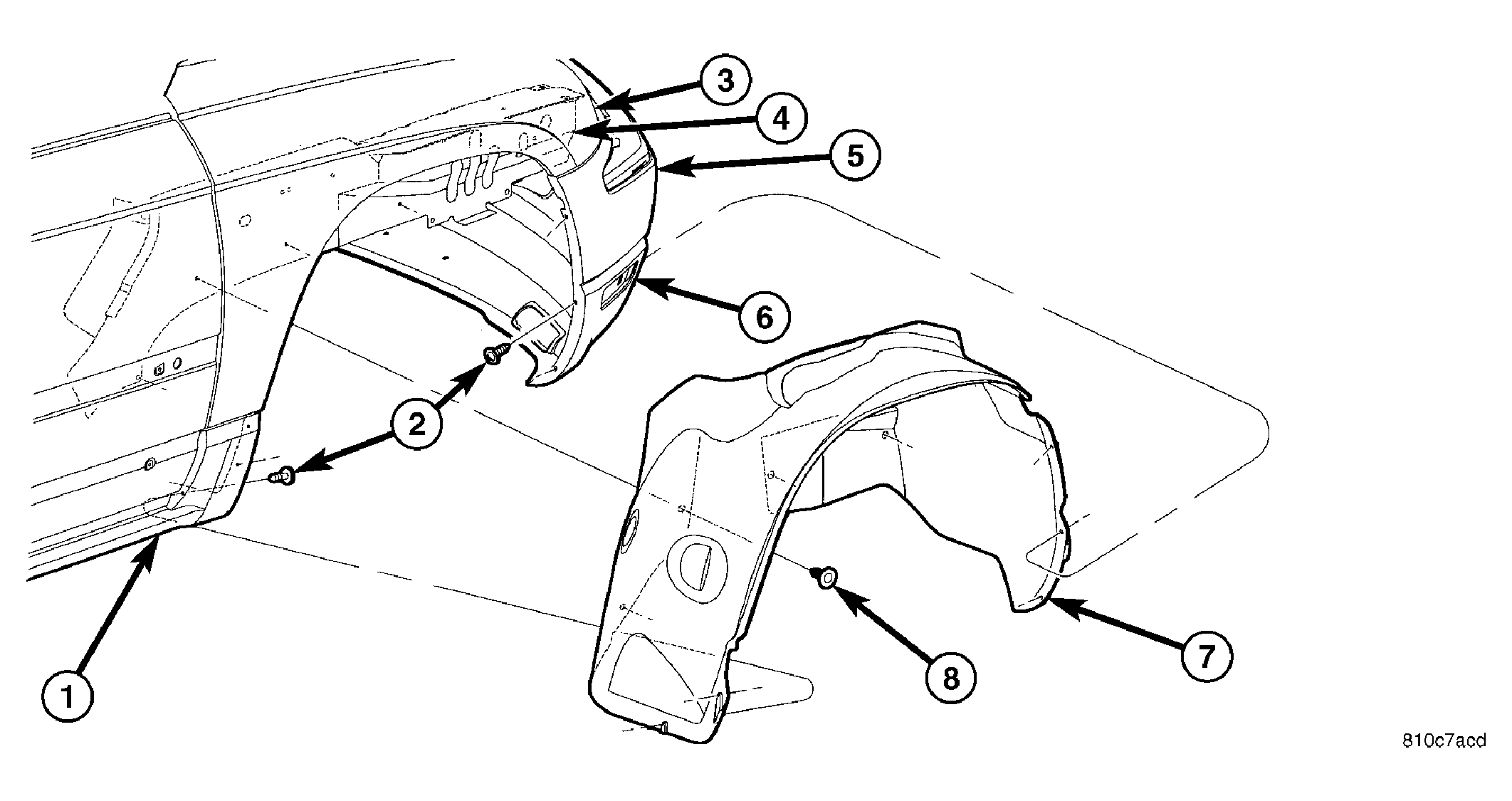

Fig 1: FRONT WHEELHOUSE SPLASH SHIELD

Courtesy of DAIMLERCHRYSLER CORP.

1 - SILL APPLIQUE

2 - FRONT SPLASH SHIELD TO FRONT FASCIA AND CLADDING

3 - FRONT FENDER

4 - FRONT RAIL

5 - FRONT BUMPER UPPER FASCIA

6 - FRONT BUMPER LOWER FASCIA

7 - FRONT FENDER SPLASH SHIELD

8 - PUSH PIN(S)
