Body - Interior & Exterior: Exterior: EXHAUSTER: Removal

1. Using a trim stick C-4755 or equivalent, pry exhauster grille from the lower center edge of the grille. See Fig 1.
2. Remove grille from opening.

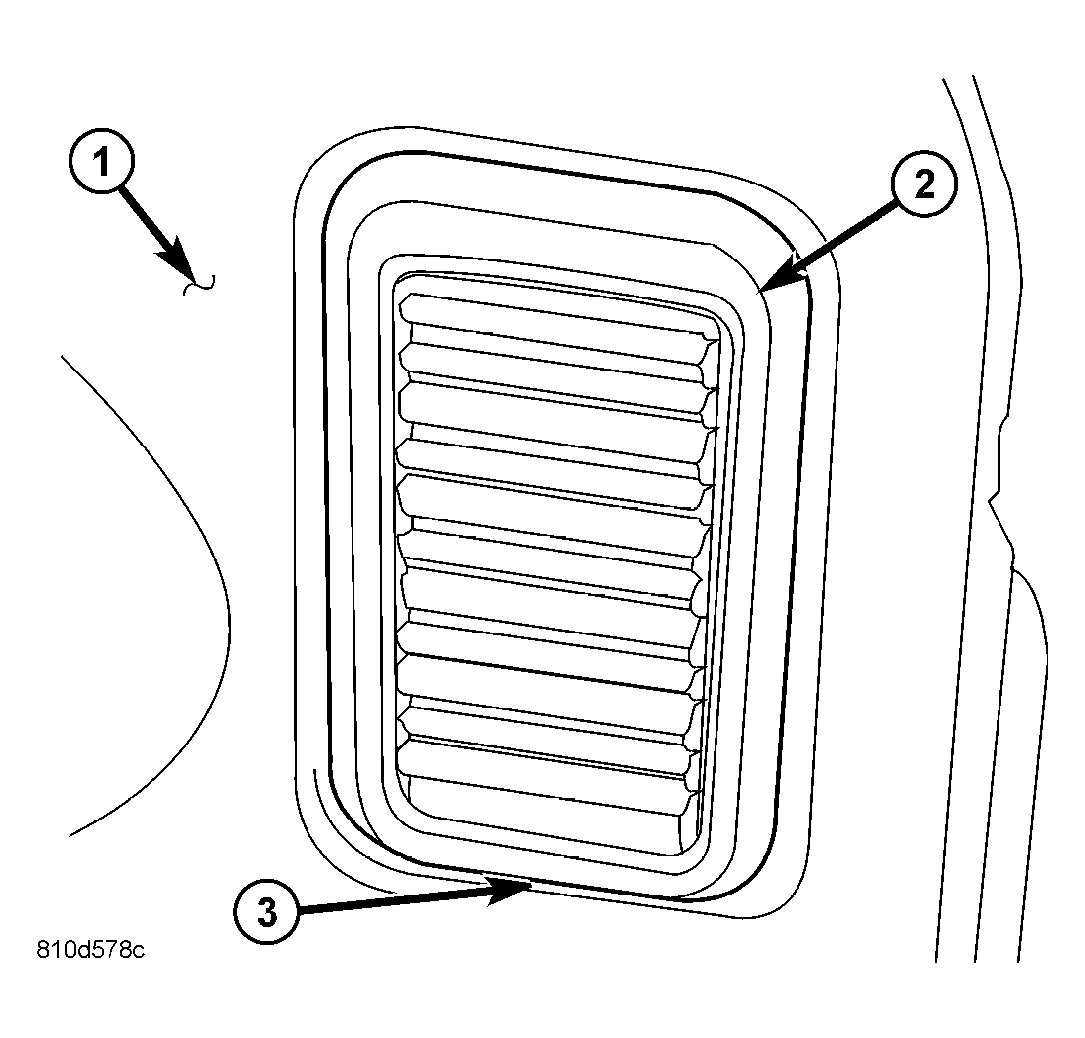

Fig 1: EXHAUSTER GRILLE

Courtesy of DAIMLERCHRYSLER CORP.

1 - AREA BEHIND REAR FASCIA

2 - EXHAUSTER GRILLE

3 - REMOVAL AREA
