Body Side Cladding: Removal

NOTE: If molding is to be re-used, use care when removing.

Warm the affected stick on molding and body metal to approximately 27° C (80° F) using a suitable heat lamp or heat gun. See Fig 1 or Fig 2.
Pull stick on molding from painted surface.
Remove adhesive tape residue from painted surface of vehicle.
Use a 3M Scotch-Brite™ Molding Adhesive and Stripe Removal Disc, or equivalent, to clean adhesive residue from painted surfaces. These products are available from automotive paint suppliers. Refer to instructions supplied with the specific product for proper usage.

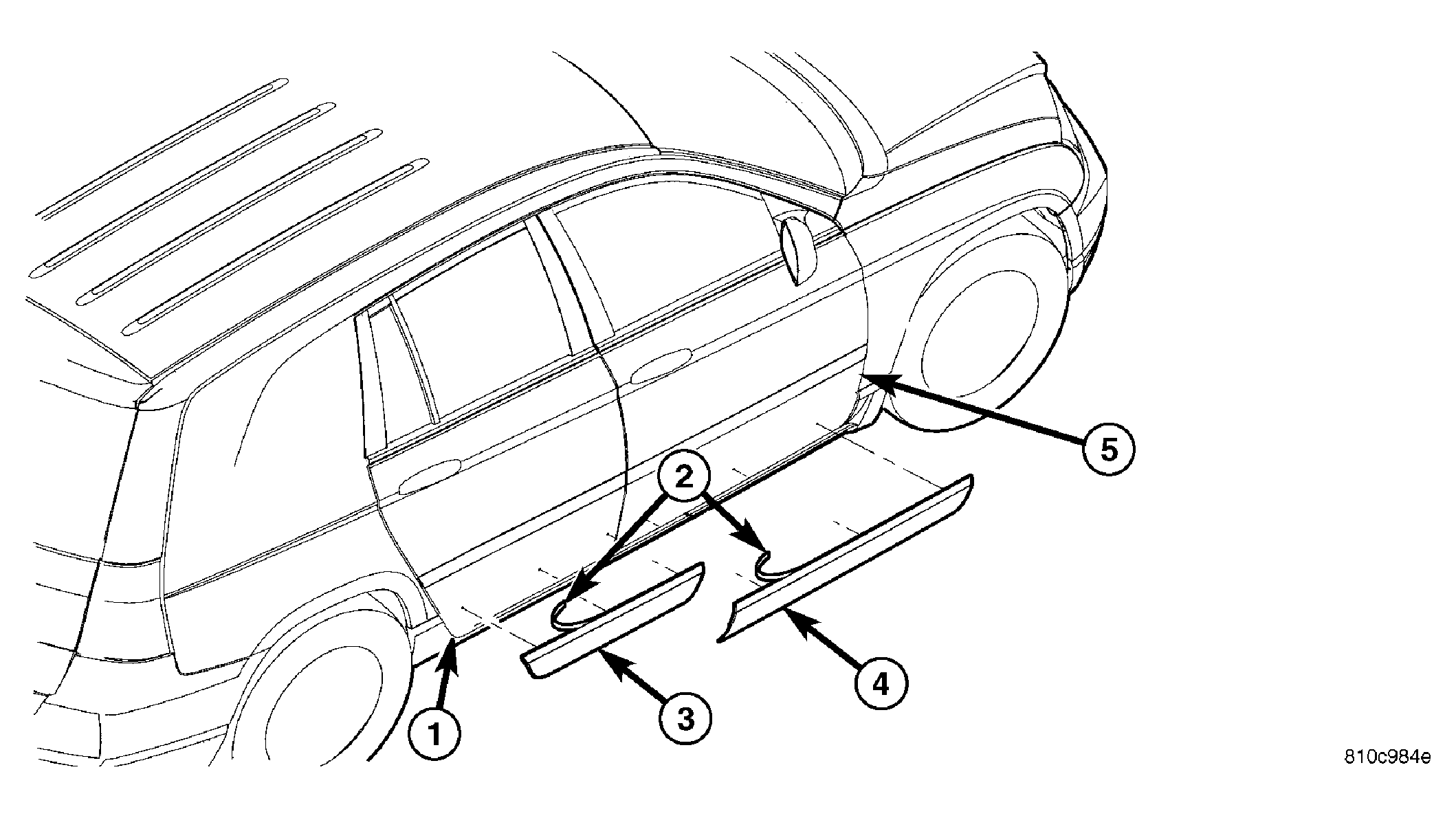

Fig 1: FRONT AND REAR DOOR OUTSIDE MOLDING

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR DOOR PANEL

2 - ADHESIVE TAPE BACKING

3 - REAR DOOR OUTSIDE MOLDING

4 - FRONT DOOR OUTSIDE MOLDING

5 - FRONT DOOR PANEL

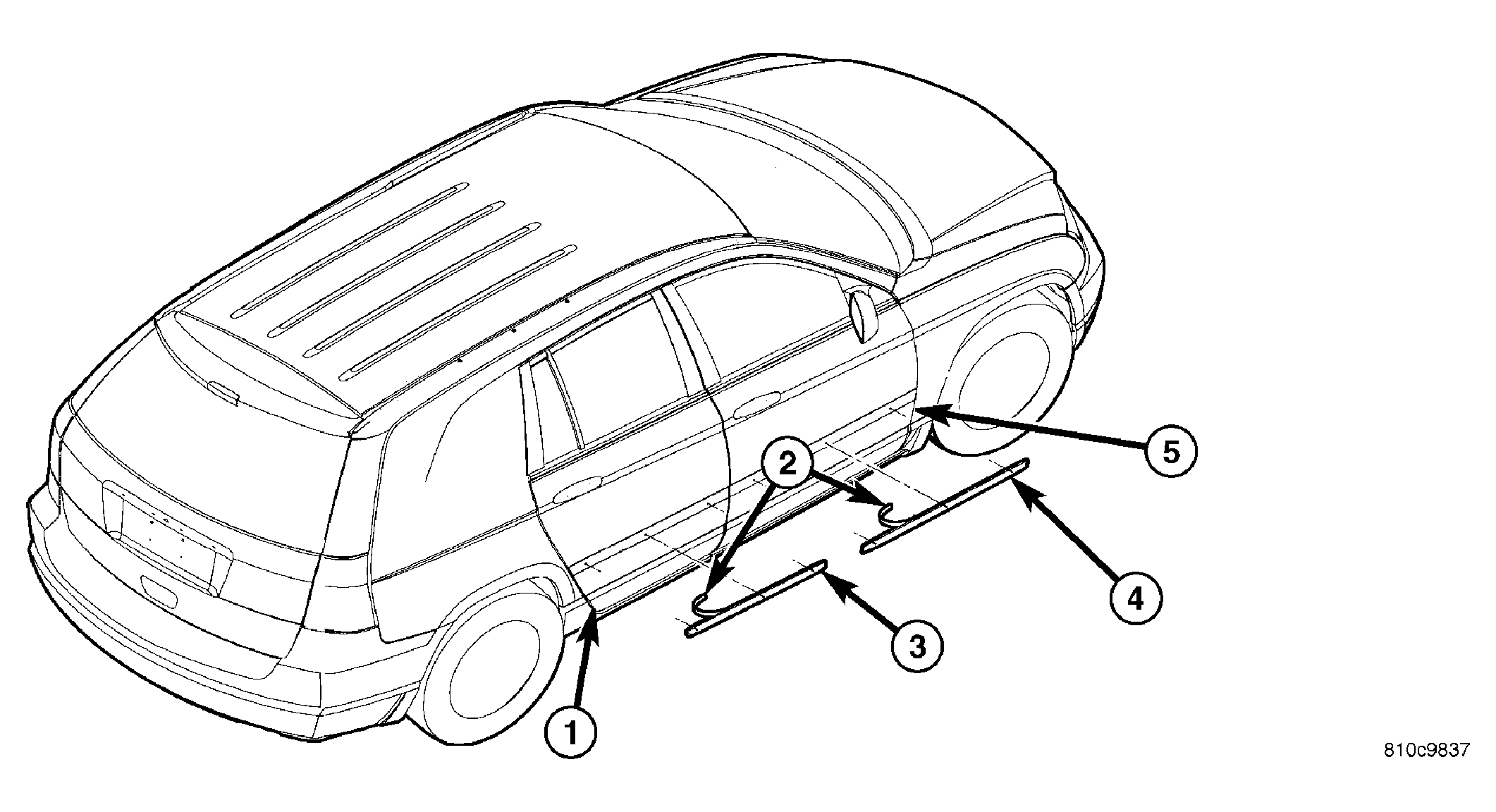

Fig 2: FRONT AND REAR DOOR OUTSIDE APPLIQUE

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR DOOR PANEL

2 - ADHESIVE TAPE BACKING

3 - REAR DOOR OUTSIDE APPLIQUE

4 - FRONT DOOR OUTSIDE APPLIQUE

5 - FRONT DOOR PANEL
