A-Pillar Molding: Removal

Remove A-pillar trim molding. Pulling trim away from windshield using your hand or a trim tool to disengage the molding from the spring clips. Starting at the top of molding and work downward disengaging all four spring clips. Use care not to damage A-pillar molding.

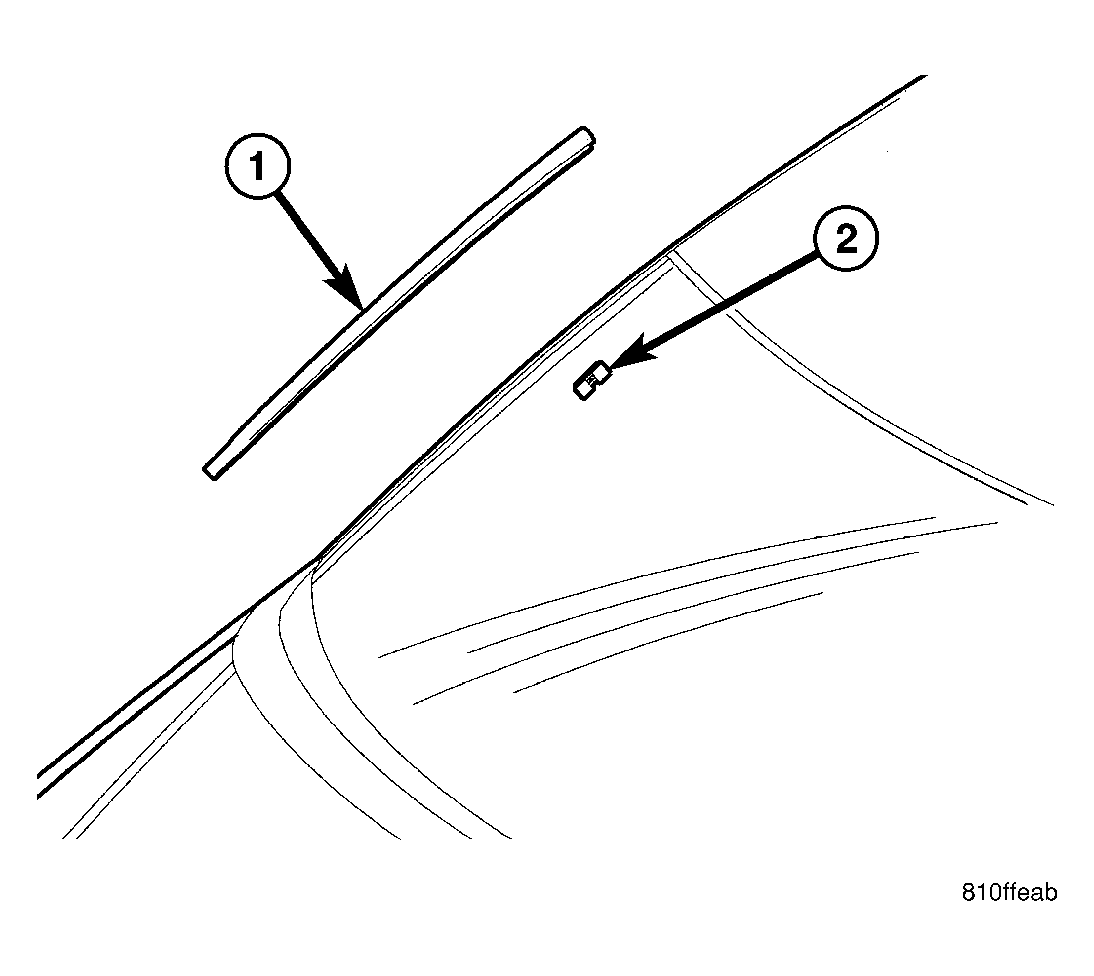

Fig 1: A-PILLAR MOLDING

Courtesy of DAIMLERCHRYSLER CORP.

1 - A-PILLAR MOLDING

2 - A-PILLAR MOLDING TO WINDSHIELD FRAME CLIP(S)
