Applique - Roof Side Aperture: Description

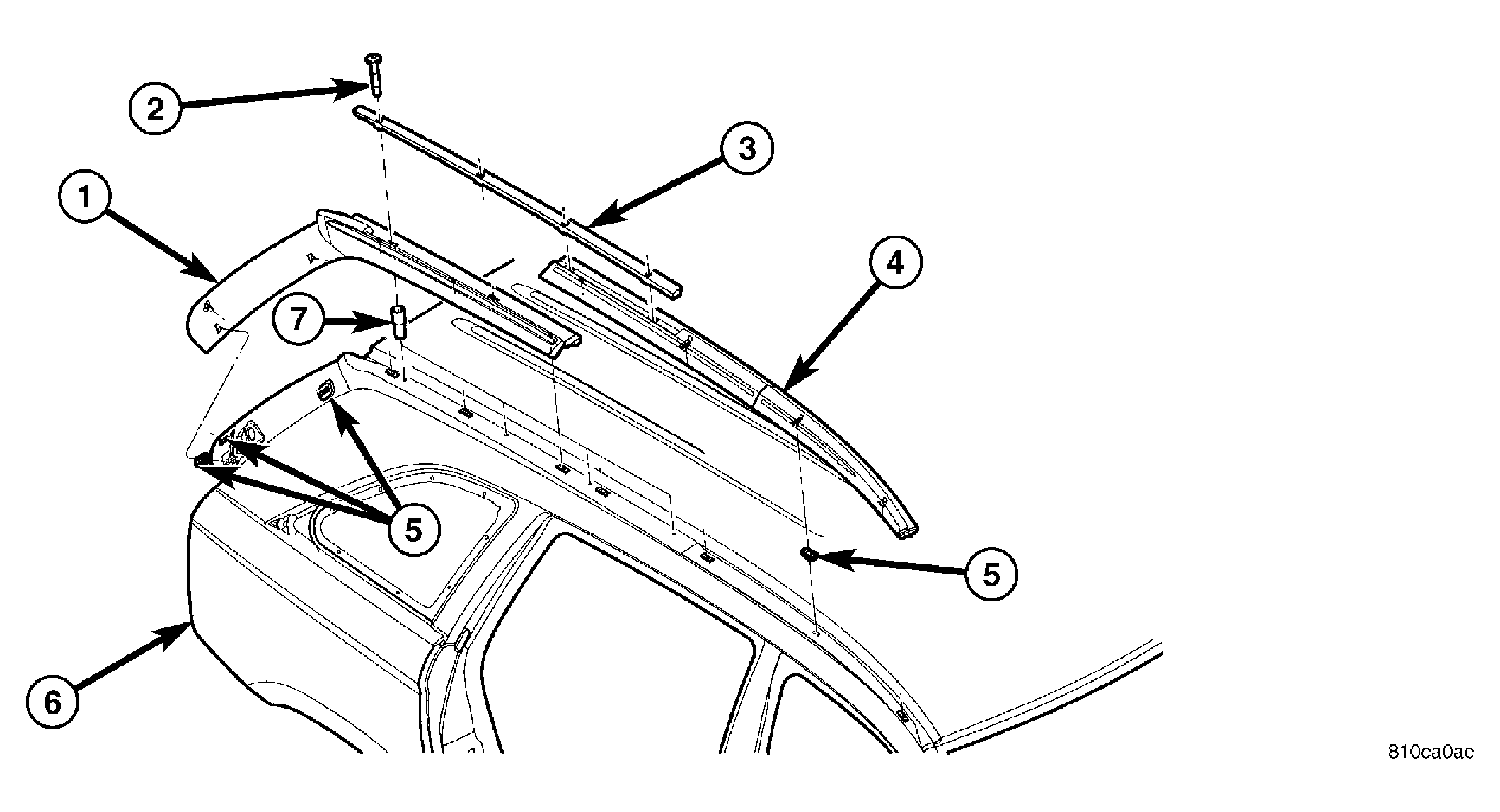

Fig 1: SIDE, D-PILLAR APERTURE APPLIQUE AND LUGGAGE RACK SIDE RAIL

Courtesy of DAIMLERCHRYSLER CORP.

1 - D-PILLAR ROOF SIDE APERTURE APPLIQUE

2 - TORX SCREW ®

3 - LUGGAGE RACK SIDE RAIL

4 - SIDE APERTURE APPLIQUE

5 - PLASTIC RETAINER(S)

6 - BODY SIDE

7 - RIVET NUT(S)
