Specifications - Gap And Flush Measurements

INDEX

DESCRIPTION	FIGURE
GAP & FLUSH MEASUREMENTS	Fig 1

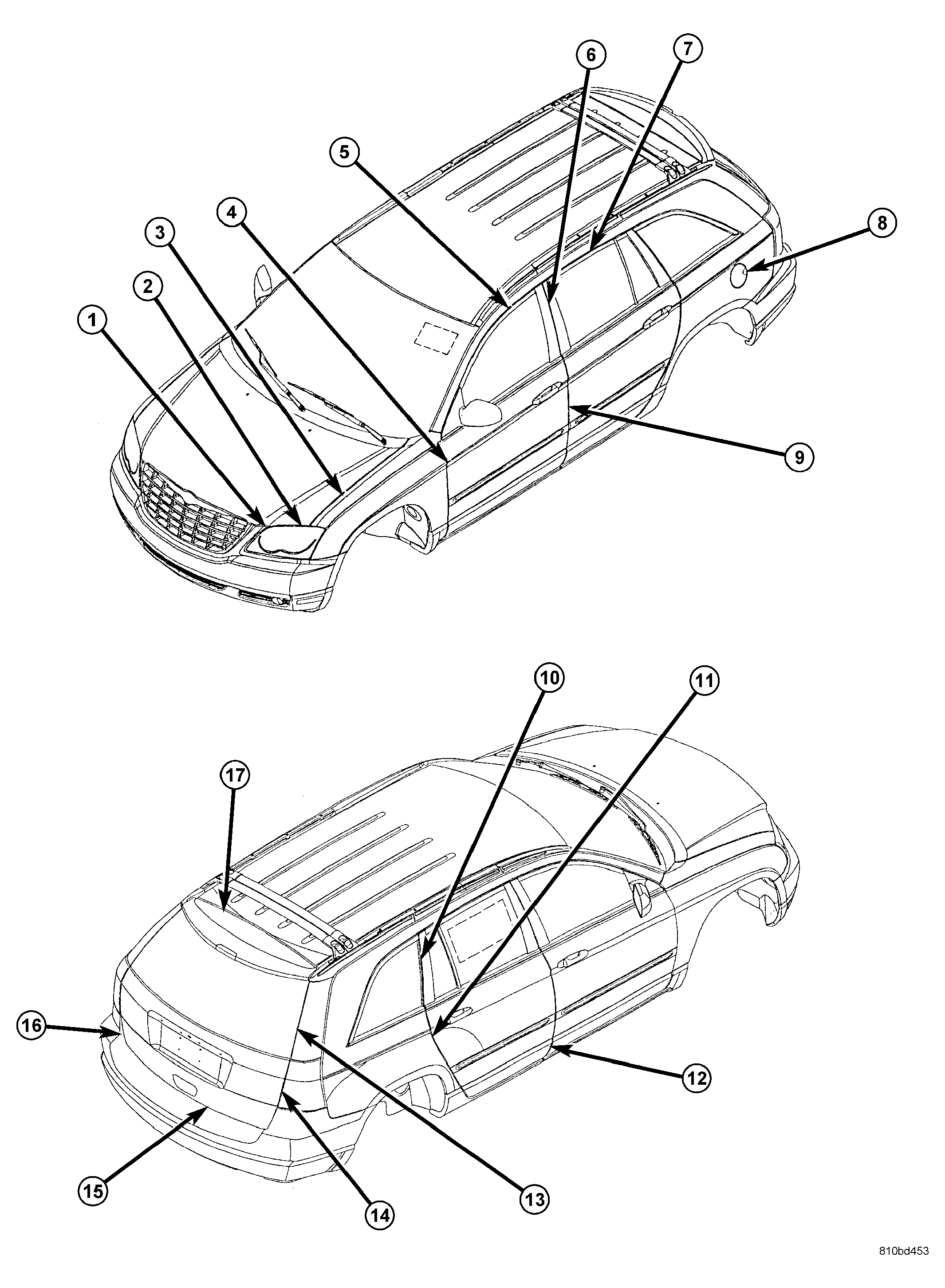

Fig 1: GAP AND FLASH MEASUREMENTS

GC0001250

Courtesy of DAIMLERCHRYSLER CORP.

SPECIFICATIONS

ITEM	LOCATION	GAP	FLUSH
1	HOOD TO FASCIA	6.5 +/- 2.0 PARALLEL WITHIN 2.0 RIGHT TO LEFT	.
2	HEADLAMP MODULE TO HOOD	6.5 +/- 2.0 PARALLEL WITHIN 2.0 RIGHT TO LEFT	.
3	HOOD TO FENDER	4.0 +/- 1.5 PARALLEL WITHIN 2.0 RIGHT TO LEFT	FENDER 0.5 OVER FLUSH TO HOOD +/- 2.0 CONSISTENT WITHIN 1.5
4	FENDER TO DOOR	4.5 +/- 1.5 PARALLEL WITHIN 2.0	FENDER 0.5 OVER FLUSH TO HOOD +/- 1.5 CONSISTENT WITHIN 2.0
	5	FRONT DOOR TO A-PILLAR	FLUSH +/- 2.0
6	FRONT DOOR APPLIQUE TO REAR DOOR APPLIQUE (ABOVE BELT LINE)	5.5 +/- 2.0 PARALLEL WITHIN 1.5	FRONT DOOR APPLIQUE 0.5 OVER FLUSH TO REAR DOOR APPLIQUE +/- 2.5 CONSISTENT WITHIN 2.0
7	REAR DOOR TO APERTURE (AT ROOF)	.	FLUSH +/- 2.0
8	FUEL FILLER DOOR TO BODY SIDE APERTURE	3.0 +/- 1.0 UNIFORM WITHIN 1.5	FUEL DOOR 0.5 UNDER FLUSH TO BODY SIDE APERTURE +/- 1.0 CONSISTENT WITHIN 1.0
9	FRONT DOOR TO REAR DOOR (BELOW BELT LINE)	4.5 +/- 1.5 PARALLEL WITHIN 1.5	FRONT DOOR 0.5 OVER FLUSH TO REAR DOOR +/- 1.5 CONSISTENT WITHIN 1.5
10	REAR DOOR APPLIQUE TO QUARTER GLASS (ABOVE BELT LINE)	4.5 +/- 1.5 PARALLEL WITHIN 1.5	REAR DOOR APPLIQUE 6.5 OVER FLUSH TO QUARTER GLASS +/- 2.5 CONSISTENT WITHIN 1.5
11	REAR DOOR TO REAR QUARTER (BELOW BELT LINE)	4.5 +/- 1.5 PARALLEL WITHIN 1.5	REAR DOOR 0.5 OVER FLUSH TO REAR QUARTER CONSISTENT WITHIN 1.5
12	FRONT DOOR CLADDING TO REAR DOOR CLADDING	6.75 +/- 2.0 PARALLEL WITHIN 2.0	FLUSH +/- 2.0
13	D-PILLAR APPLIQUE TO LIFTGATE GLASS	5.0 +/- 2.0 PARALLEL WITHIN 2.0	.
14	TAIL LAMP LENS TO LIFTGATE	5.0 +/- 2.0 PARALLEL WITHIN 2.0 LEFT TO RIGHT	TAIL LAMP 2.8 OVER FLASH TO LIFTGATE CONSISTENT WITHIN 3.0 LEFT TO RIGHT
15	LIFTGATE TO FASCIA (UP/DOWN)	8.0 +/- 2.5 PARALLEL WITHIN 3.0	.
16	LIFTGATE TO FASCIA (CROSS CAR)	5.0 +/- 2.0 PARALLEL WITHIN 2.0 LEFT TO RIGHT
17	LIFTGATE TO ROOF	8.0 +/- 2.5	LIFTGATE 1.0 UNDER FLUSH TO ROOF +1.0/-2.0

NOTE: All measurements are in mm.
