Solenoids And Vacuum Harness: Removal

NOTE: For specific solenoid location, refer to Fig 1.

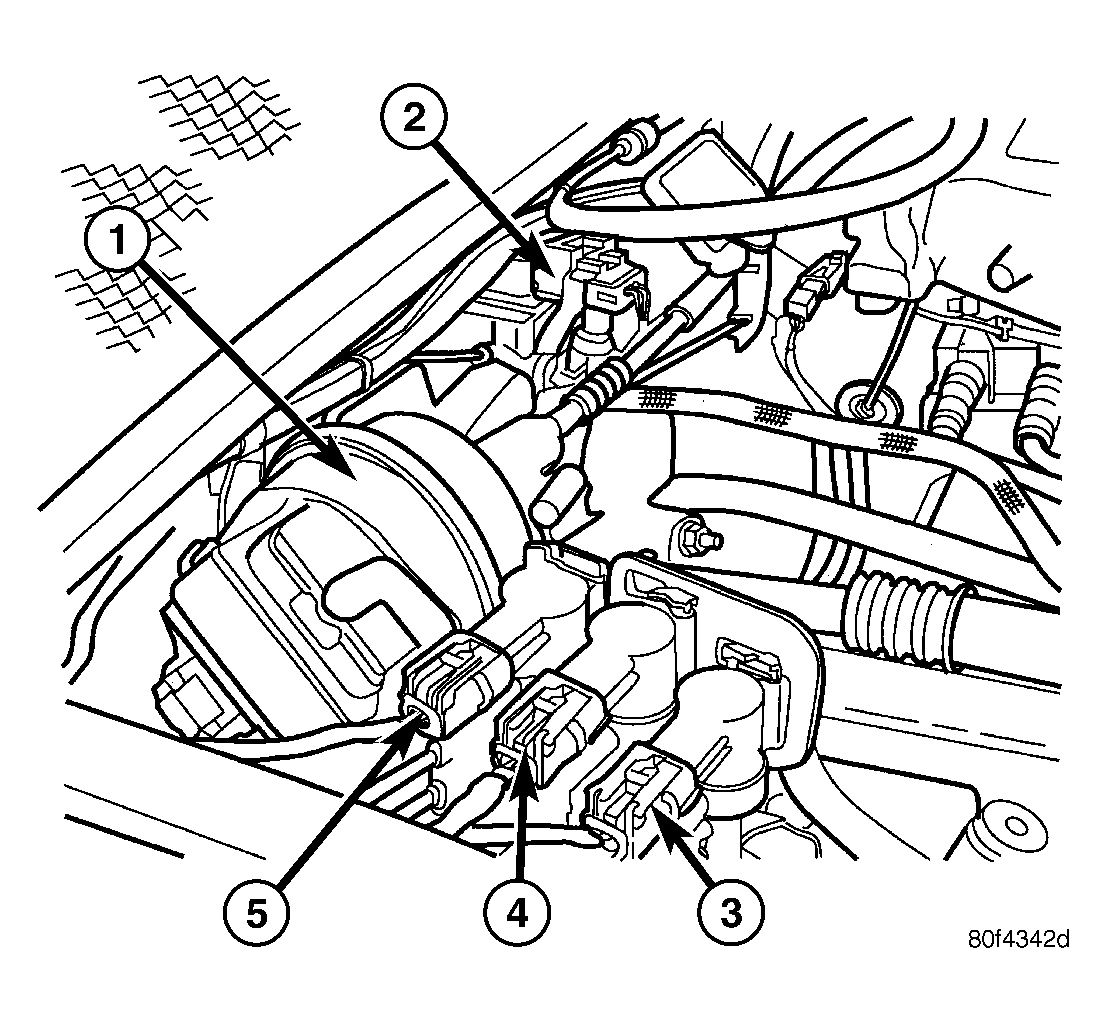

Fig 1: Turbocharger Solenoids

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPEED CONTROL SERVO

2 - TIP SENSOR

3 - WASTEGATE ACTUATOR SOLENOID

4 - SURGE VALVE ACTUATOR SOLENOID

5 - TIP SOLENOID

1. Remove nuts securing solenoid mounting bracket to shock tower. See Fig 2.
2. Disconnect solenoid electrical connector.
3. Disconnect vacuum harness connector from solenoid.
4. Push on solenoid lock tab and slide solenoid off bracket. See Fig 3.

Fig 2: Solenoid Mounting Bracket

Courtesy of DAIMLERCHRYSLER CORP.

1 - NUTS

Fig 3: Solenoid Lock Tab

Courtesy of DAIMLERCHRYSLER CORP.

1 - LOCK TAB
