Heat Shields: Installation

  1. Position heat shield(s) to underbody.

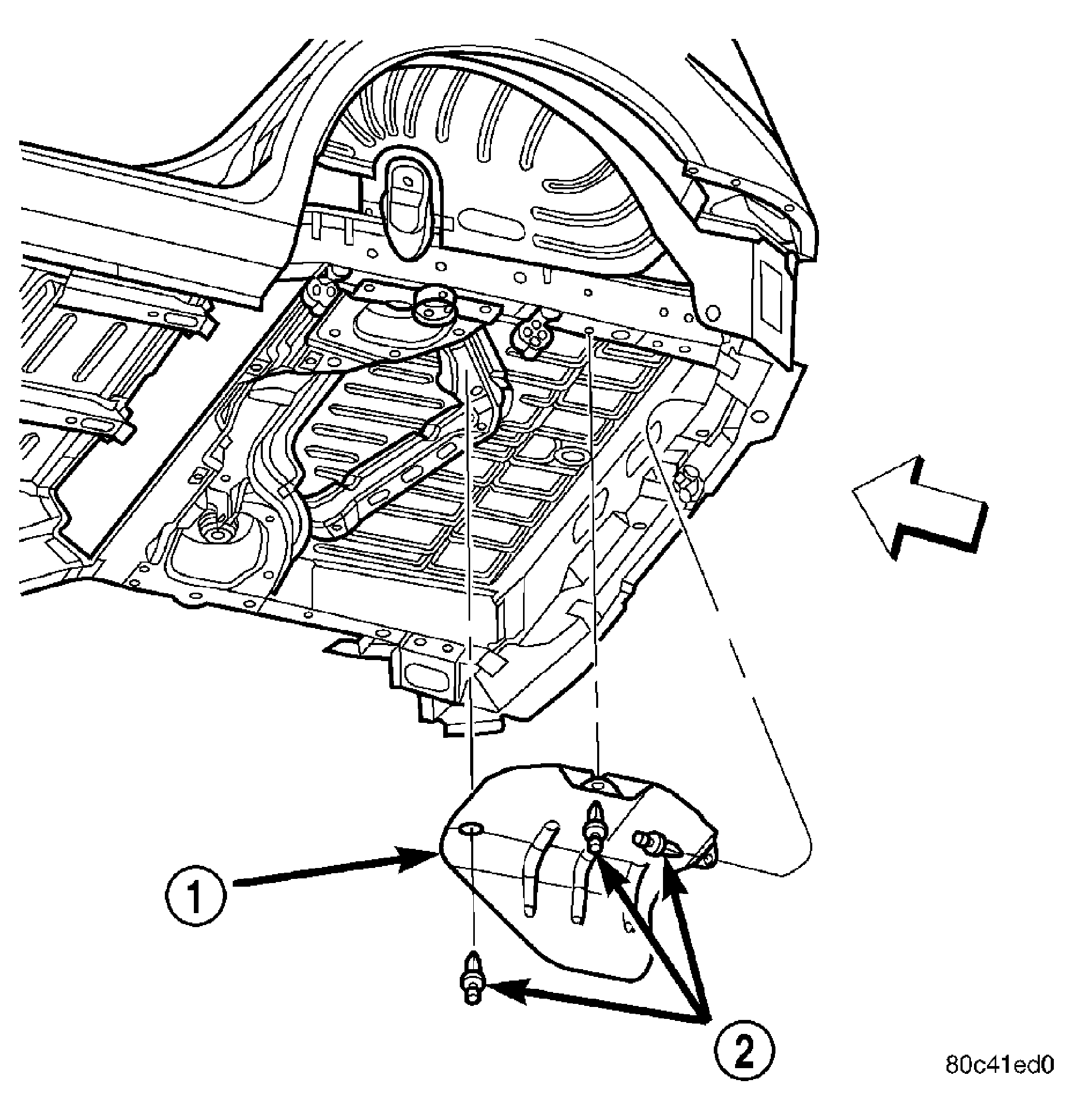

  2. Install heat shield fasteners. See Figure, Figure, Figure or Figure.
  3. Inspect heat shield to exhaust system clearances and adjust as necessary. See Figure. For clearance specifications (Refer to EXHAUST SYSTEM - SPECIFICATIONS) .
  4. Lower vehicle.
  5. Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
  6. Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
