Radiator Closure Panel: Removal

  1. Open hood.
  2. Mark bolt locations on the upper radiator closure panel. See Fig 1.
  3. Remove fasteners attaching radiator closure panel to fenders.
  4. Move temperature sensor as necessary.
  5. Remove bolt attaching lower radiator closure panel to the upper radiator closure panel.
  6. For replacement of upper radiator closure panel, remove hood latch, and any other hardware.

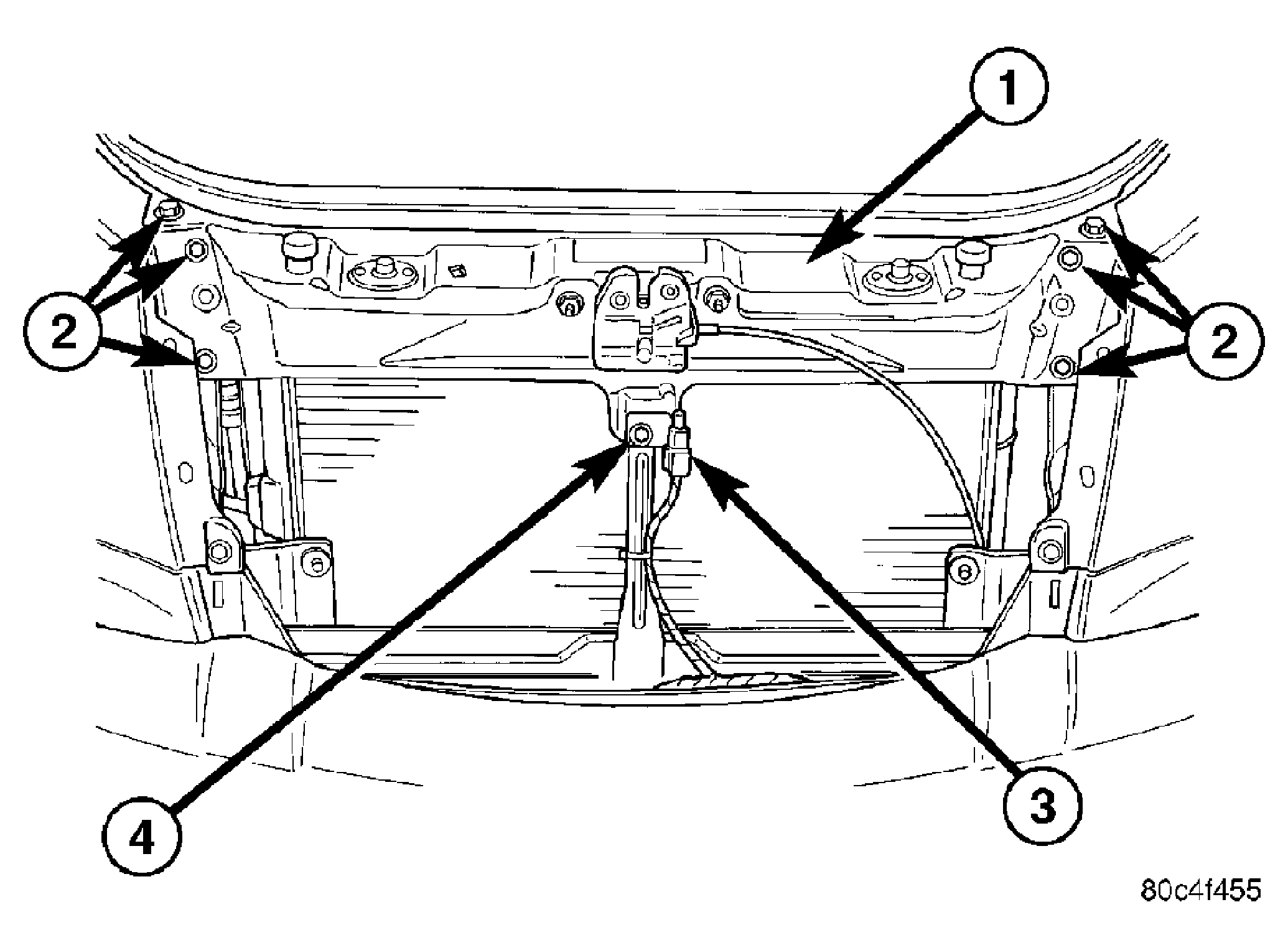

Fig 1: RADIATOR CLOSURE PANEL
GC0022354Courtesy of DAIMLERCHRYSLER CORP.
1 - UPPER RADIATOR CLOSURE PANEL
2 - UPPER CLOSURE ATTACHING FASTENERS
3 - TEMPERATURE SENSOR
4 - FASTENER ATTACHING LOWER CLOSURE PANEL TO UPPER CLOSURE PANEL
