Luggage Rack Crossbar: Removal

  1. Loosen the end cap set screws on both side rails and remove end caps. See Fig 1
  2. Release the cross bars and slide off the side rails.

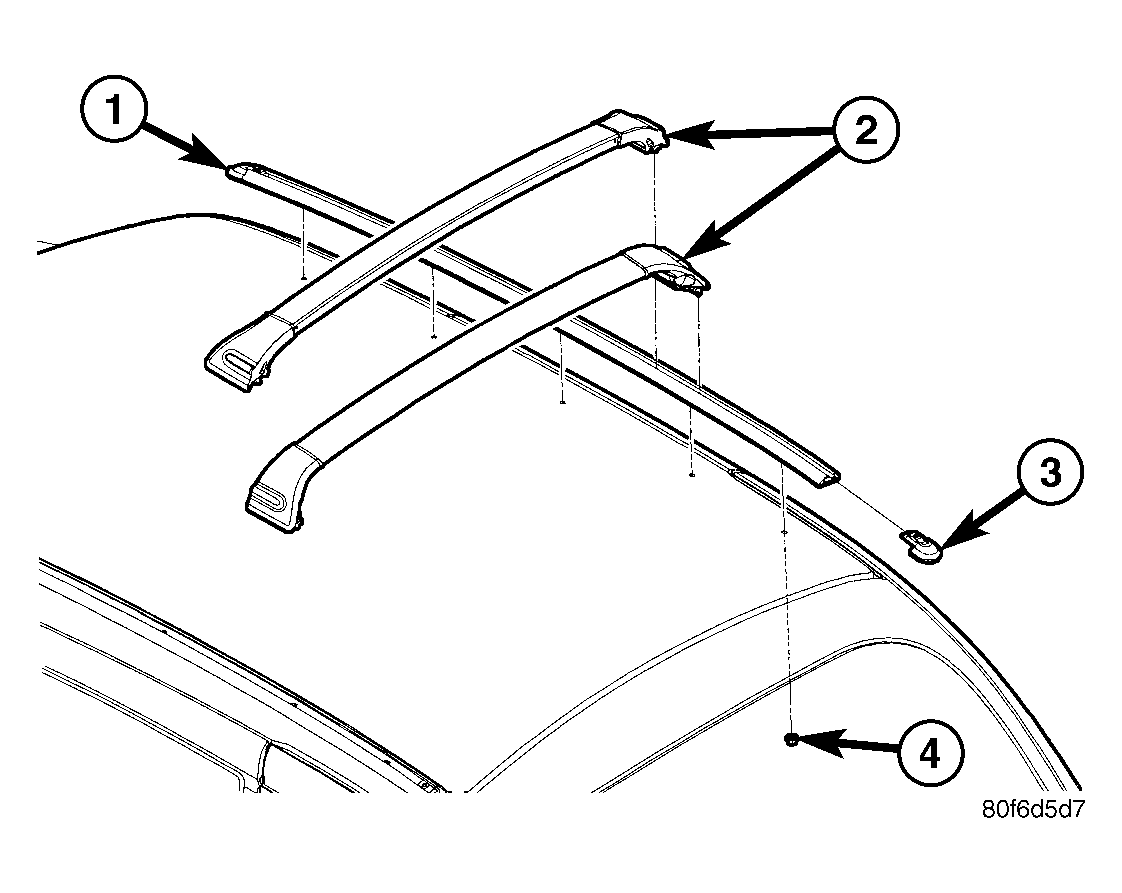

Fig 1: LUGGAGE RACK
GC0022353Courtesy of DAIMLERCHRYSLER CORP.
1 - SIDE RAILS
2 - CROSSBARS
3 - END CAPS
4 - NUTS (5 PER SIDE)
