Electronic Control Module - Vehicle Built Before 9/10/02: Removal

1. Remove sunroof module assembly (Refer to BODY/SUNROOF/MODULE ASSEMBLY - REMOVAL) .
2. Cut wire retaining tape near motor being careful not to cut wires.
3. Disconnect drive motor's wire harness.
4. Remove three motor assembly retaining screws from bottom side of motor, and remove motor assembly. See Fig 1.
5. From top side of module assembly, remove one attaching screw from control module.
6. Disconnect the two wire connectors from electronic control module assembly.
7. Remove control module.

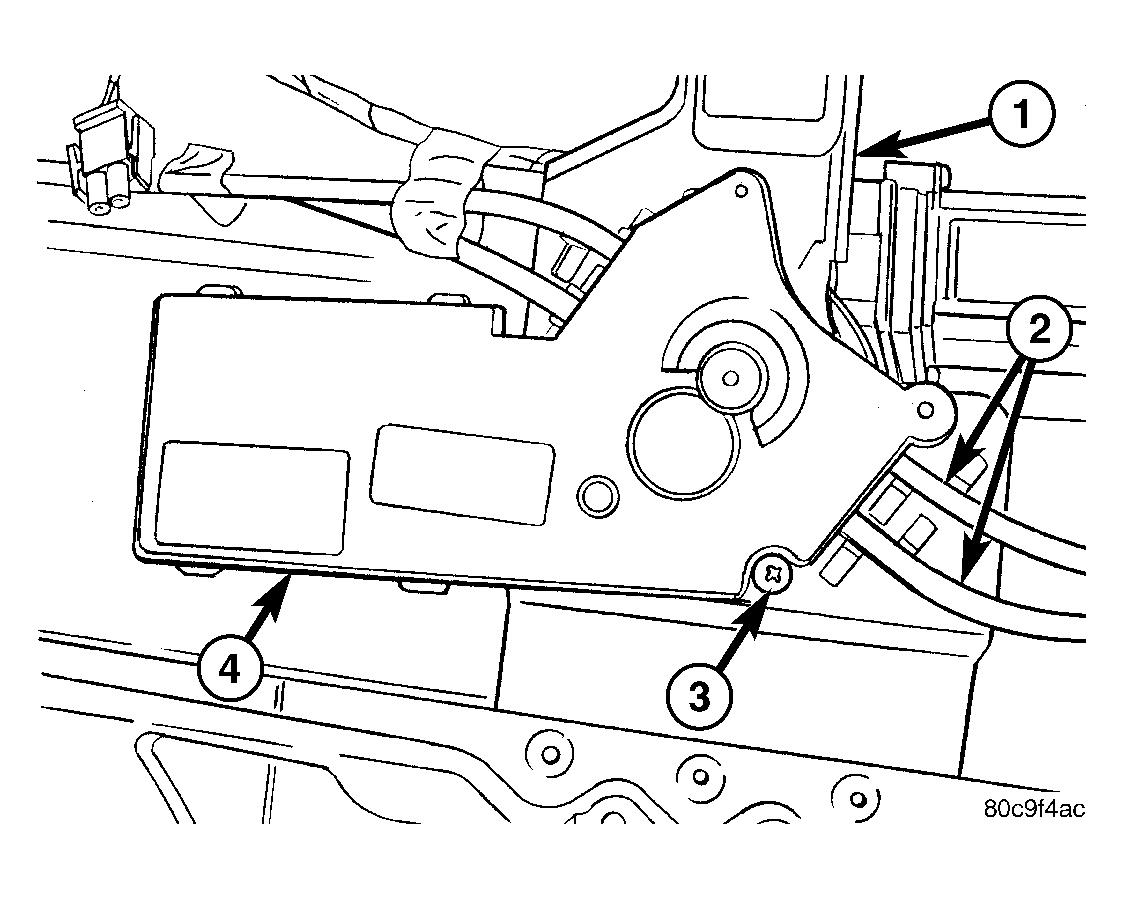

Fig 1: CONTROL MODULE

Courtesy of DAIMLERCHRYSLER CORP.

1 - MOTOR BRACKET

2 - CABLES

3 - SCREW

4 - CONTROL MODULE
