Rear Seat Back Cover/Foam: Removal

Remove seat from vehicle. (Refer to BODY/SEATS/REAR SEAT - REMOVAL) .
Remove rear seat back. (Refer to BODY/SEATS/REAR SEAT BACK - INSTALLATION) .
Disengage the J-strap retainer. See Fig 1 and Fig 2.

Fig 1: REAR SEAT BACK J-STRAP
Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: REAR SEAT BACK COVER
Courtesy of DAIMLERCHRYSLER CORP.

1 - J-STRAP
Roll flap back to access push pin fasteners. See Fig 3.

Fig 3: REAR SEAT BACK COVER
Courtesy of DAIMLERCHRYSLER CORP.

1 - PUSH PIN FASTENERS
Raise back flap to release the hook and loop to access the J-strap and hog rings. Release J-strap and cut the hog rings. See Fig 4.

Fig 4: REAR SEAT BACK COVER
Courtesy of DAIMLERCHRYSLER CORP.

1 - J-STRAP

2 - HOOK AND LOOP

3 - HOG RINGS
Disconnect the lower J-strap from the rod. See Fig 5.

Fig 5: J-STRAP ON ROD
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the upper J-strap from the rod. See Fig 6.

Fig 6: J-STRAP ON UPPER ROD
Courtesy of DAIMLERCHRYSLER CORP.
Roll cover upward to hog rings. Cut hog rings to free cover. See Fig 7.

Fig 7: HOG RINGS
Courtesy of DAIMLERCHRYSLER CORP.

1 - HOG RINGS
Roll seat cover bottom to clear the foam. See Fig 8.

Fig 8: REAR SEAT BACK COVER
Courtesy of DAIMLERCHRYSLER CORP.
Roll seat back cover to the hog rings. Cut hog rings. See Fig 9 and Fig 10

Fig 9: REAR SEAT BACK COVER HOG RINGS
Courtesy of DAIMLERCHRYSLER CORP.

1 - HOG RINGS

Fig 10: REAR SEAT BACK COVER HOG RINGS
Courtesy of DAIMLERCHRYSLER CORP.

1 - HOG RINGS
Pull back panel free of the seat cover and foam. See Fig 11 and Fig 12.

Fig 11: REMOVE BACK PANEL
Courtesy of DAIMLERCHRYSLER CORP.

1 - BACK PANEL

2 - FOAM

Fig 12: REAR SEAT BACK PANEL
Courtesy of DAIMLERCHRYSLER CORP.

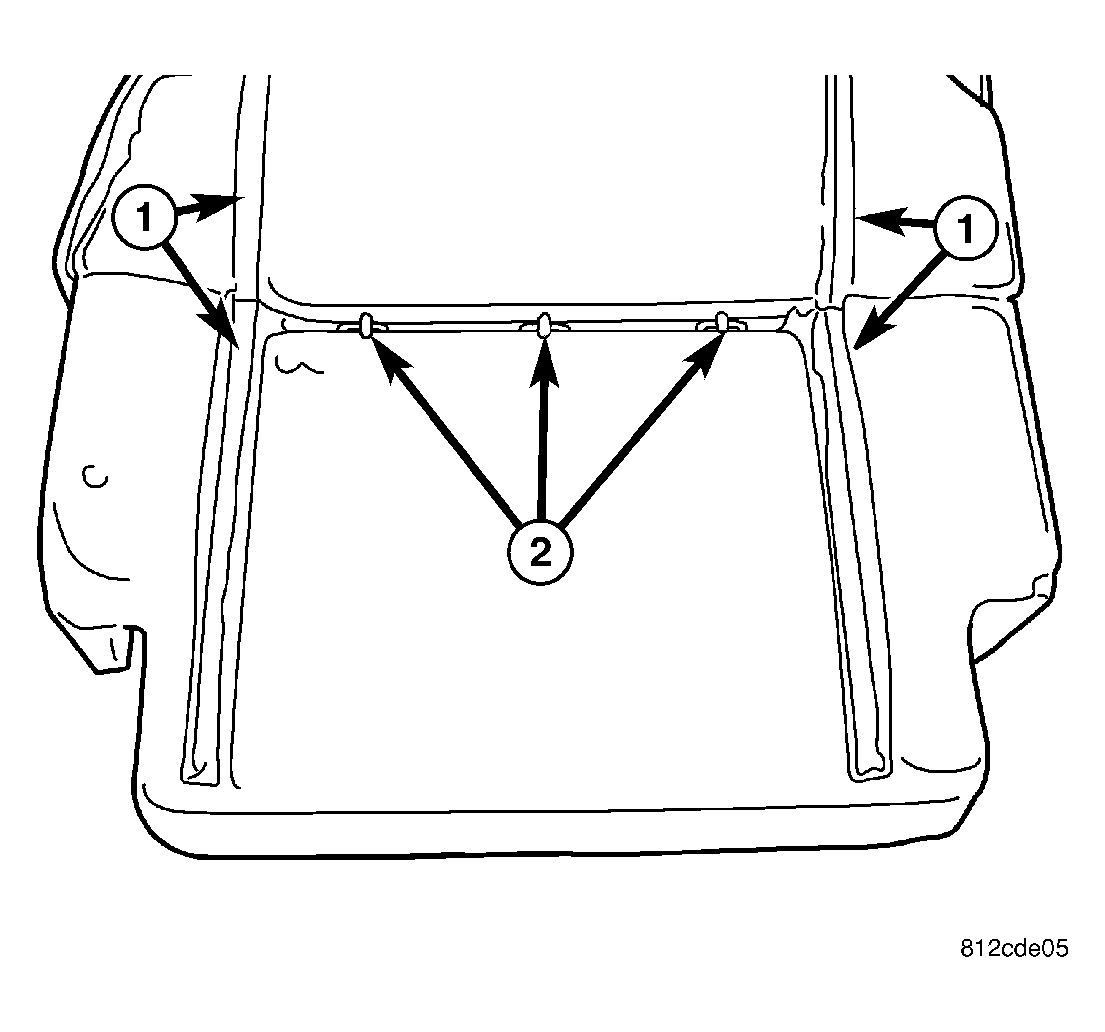

Remove seat back cover from the foam. See Fig 13.

Fig 13: REAR SEAT BACK COVER

Courtesy of DAIMLERCHRYSLER CORP.

1 - HOOK AND LOOP

2 - HOG RINGS
