Removal

  1. Raise headrest by depressing adjuster cap button. To remove headrest from seat depress adjuster cap button and the adjuster cap release tab while raising the headrest upward. See Fig 1 and Fig 2.
    Fig 1: HEADREST
    GC0022509Courtesy of DAIMLERCHRYSLER CORP.
    1 - HEADREST ADJUSTER CAP WITH BUTTON
    2 - HEADREST
    3 - HEADREST ADJUSTER CAP WITH RELEASE TAB
    Fig 2: HEADREST
    GC0022490Courtesy of DAIMLERCHRYSLER CORP.
    1 - FRONT HEADREST
    2 - RELEASE BUTTON
  2. To remove headrest, at the same time press the button and release tab, and while pulling upward to release headrest. See Fig 3 and Fig 4.

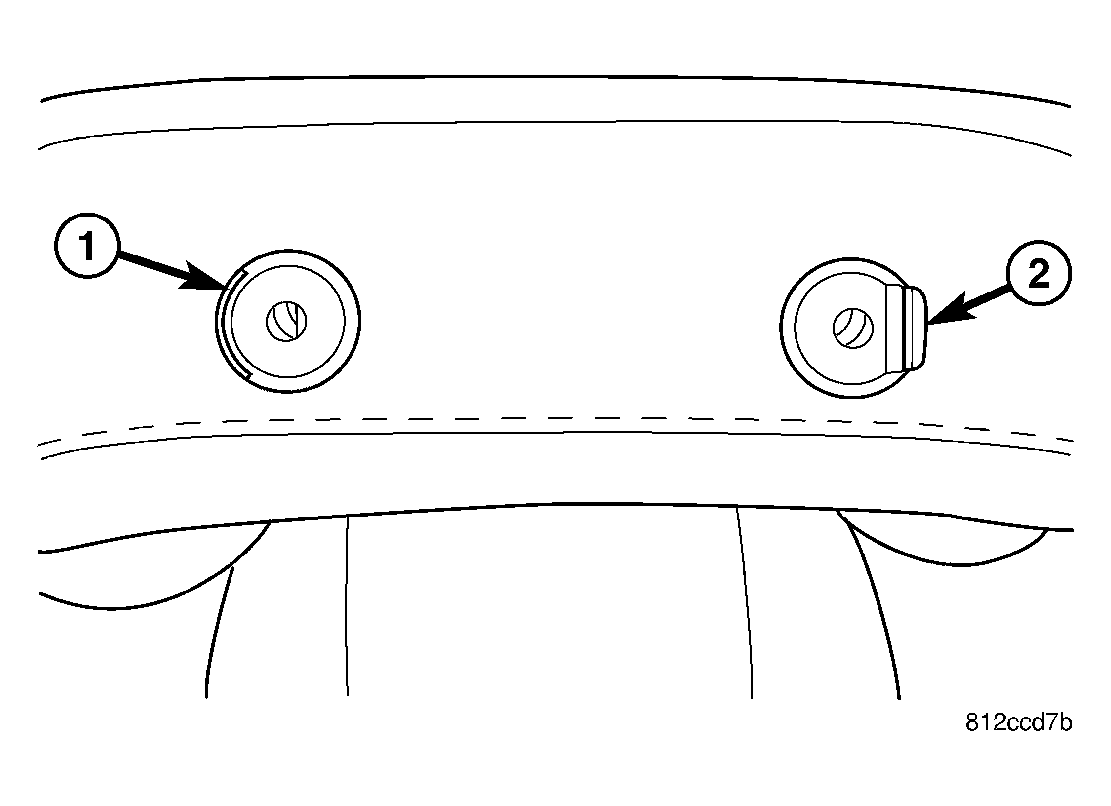

    Fig 3: HEADREST ADJUSTER CAPS
    GC0022492Courtesy of DAIMLERCHRYSLER CORP.
    1 - HEADREST ADJUSTER CAP WITH RELEASE TAB
    2 - HEADREST ADJUSTER CAP WITH BUTTON
    Fig 4: HEADREST SLEEVES
    GC0022510Courtesy of DAIMLERCHRYSLER CORP.
    1 - RELEASE TAB
    2 - ADJUSTER BUTTON
  3. Remove headrest from seat back.
