Removal - Pt-27 Only

  1. Remove seat from vehicle (Refer to BODY/SEATS/SEAT - REMOVAL) .
  2. Remove front seat cushion (Refer to BODY/SEATS/SEAT CUSHION - REMOVAL) .
  3. Disengage J-strap attaching seat cover from the seat cushion frame and ensure wire harness free seat pan. See Fig 1.
    Fig 1: DISENGAGE J-STRAPS
    GC0022488Courtesy of DAIMLERCHRYSLER CORP.
    1 - J-STRAPS
    2 - WIRE HARNESS AND SEAT CUSHION FRAME
  4. Separate the seat cushion cover and foam from the seat cushion pan. See Fig 2.
    Fig 2: REMOVE SEAT CUSHION COVER AND FOAM
    GC0022505Courtesy of DAIMLERCHRYSLER CORP.
    1 - SEAT CUSHION COVER AND FOAM
  5. Remove seat cushion cover back to the hog rings.
  6. Cut hog rings attaching seat cover to seat cushion pad. See Fig 3 and Fig 4.

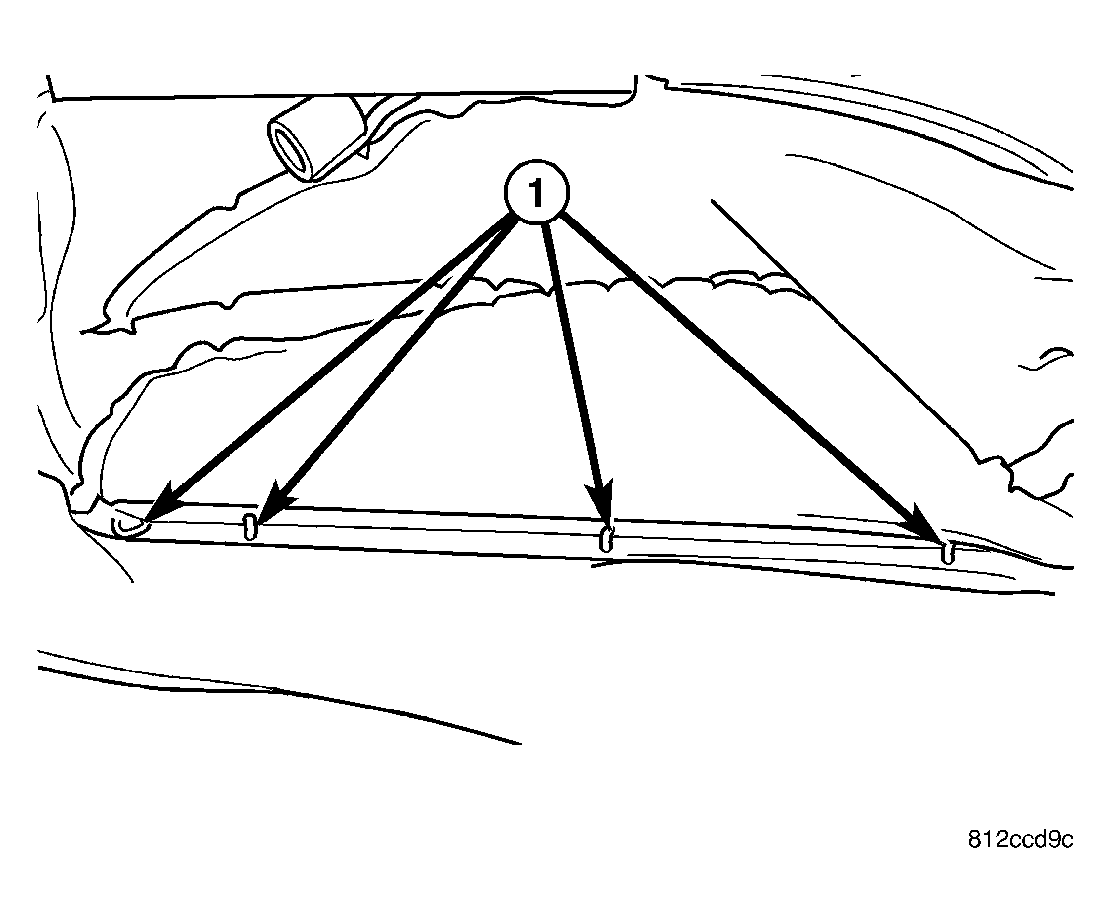

Fig 3: HOG RINGS
GC0022507Courtesy of DAIMLERCHRYSLER CORP.
1 - HOG RINGS
Fig 4: HOG RINGS
GC0022508Courtesy of DAIMLERCHRYSLER CORP.
1 - HOG RINGS
