Liftgate Trim Panel: Removal

  1. Open liftgate.

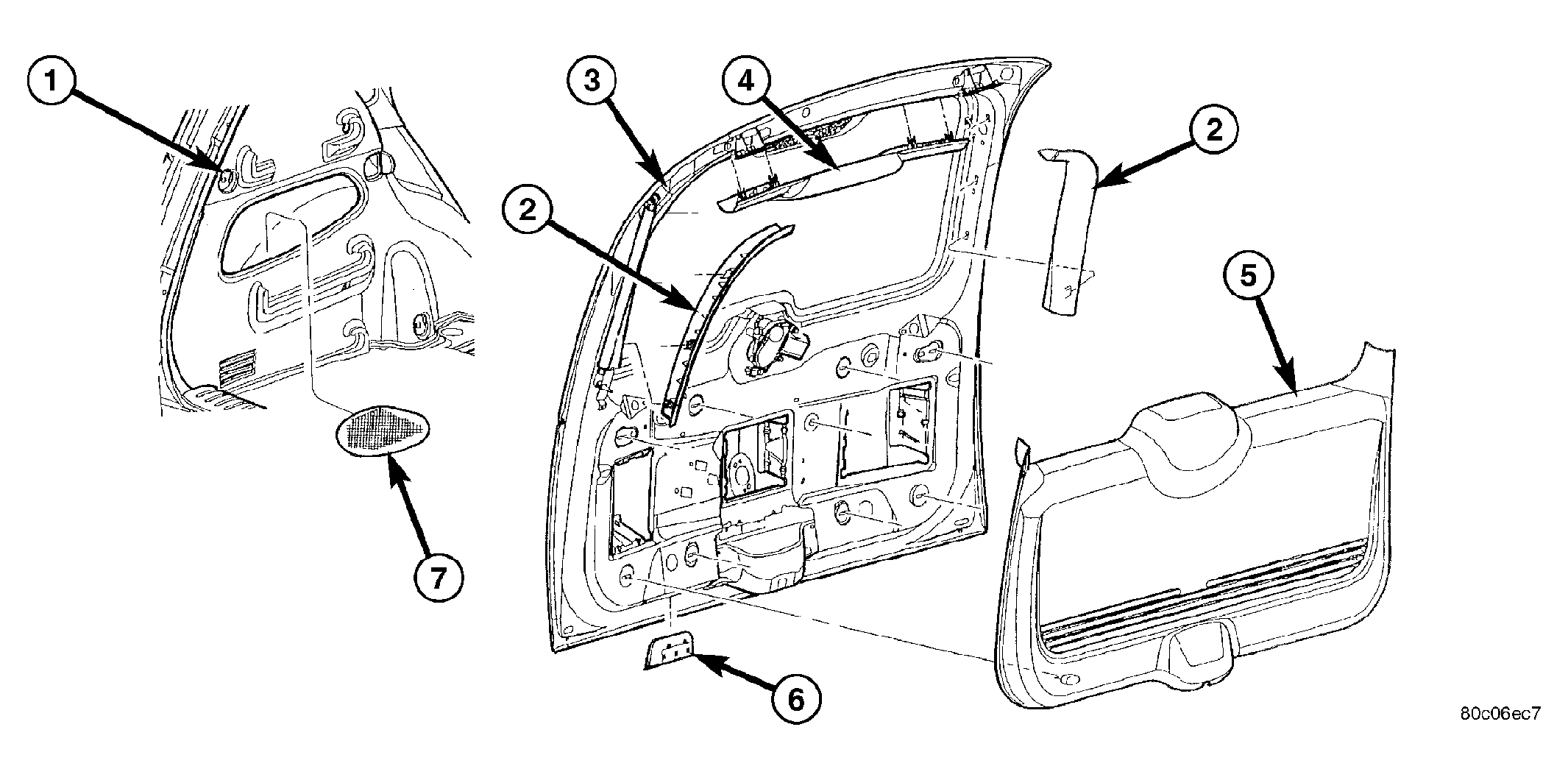

  2. Using a trim stick (C-4755), disengage clips attaching CHMSL cover trim to liftgate. See Figure.
  3. Remove CHMSL cover trim from vehicle.
  4. Using a trim stick (C-4755), disengage clips attaching liftgate halo trim panels both sides. See Figure.
  5. Remove halo trim panels trim from vehicle.
  6. Using a trim stick (C-4755), disengage clips attaching liftgate trim panel. See Figure.
  7. Remove liftgate trim panel trim from vehicle.
