Liftgate Inner Control Assembly Panel: Removal

1. Remove liftgate trim panel.
2. Disconnect linkage. See Fig 1.
3. Remove fasteners attaching control assembly inner panel.
4. Remove control assembly inner panel from vehicle.

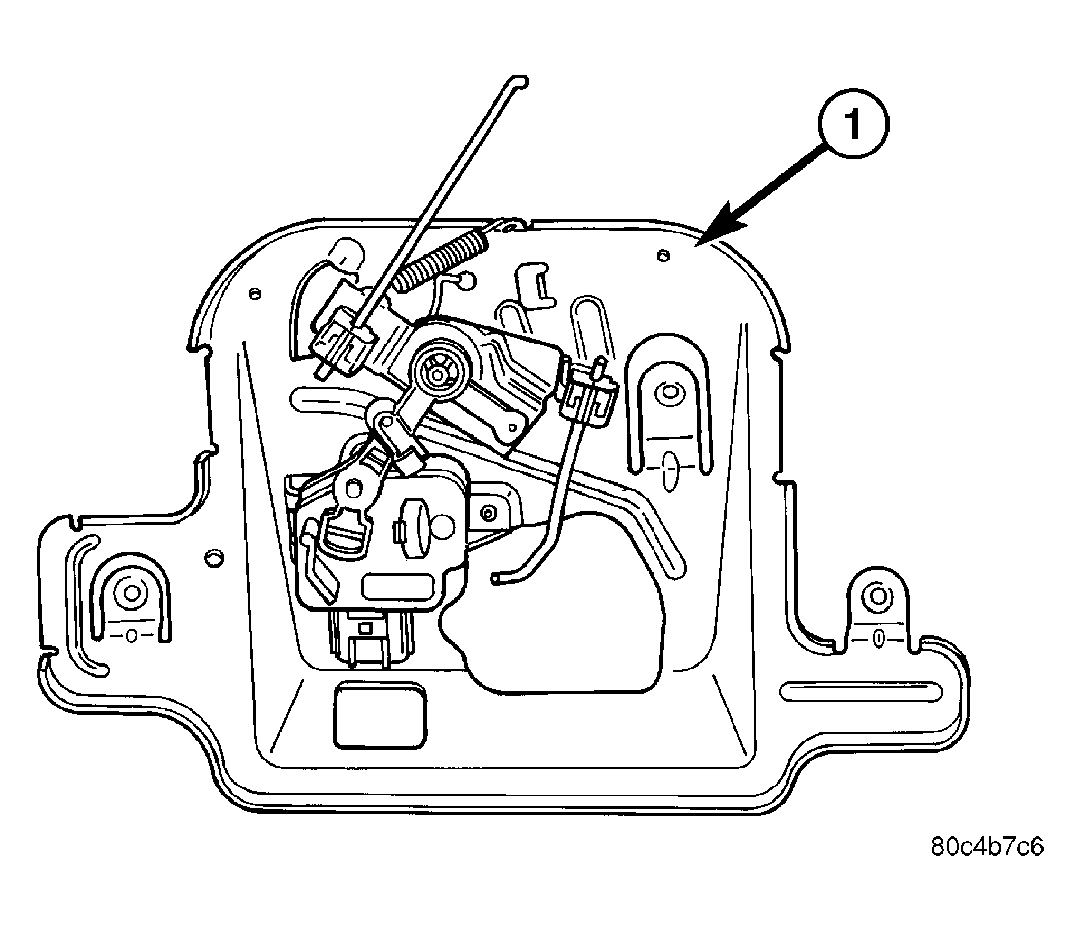

Fig 1: LIFTGATE CONTROL ASSEMBLY INNER PANEL

Courtesy of DAIMLERCHRYSLER CORP.

1 - LIFTGATE CONTROL ASSEMBLY INNER PANEL
