Latch Striker: Removal

  1. Open liftgate.
  2. Mark outline of striker on sill to aid installation.
  3. Remove screws attaching striker to sill. See Fig 1.
  4. Remove striker from vehicle.

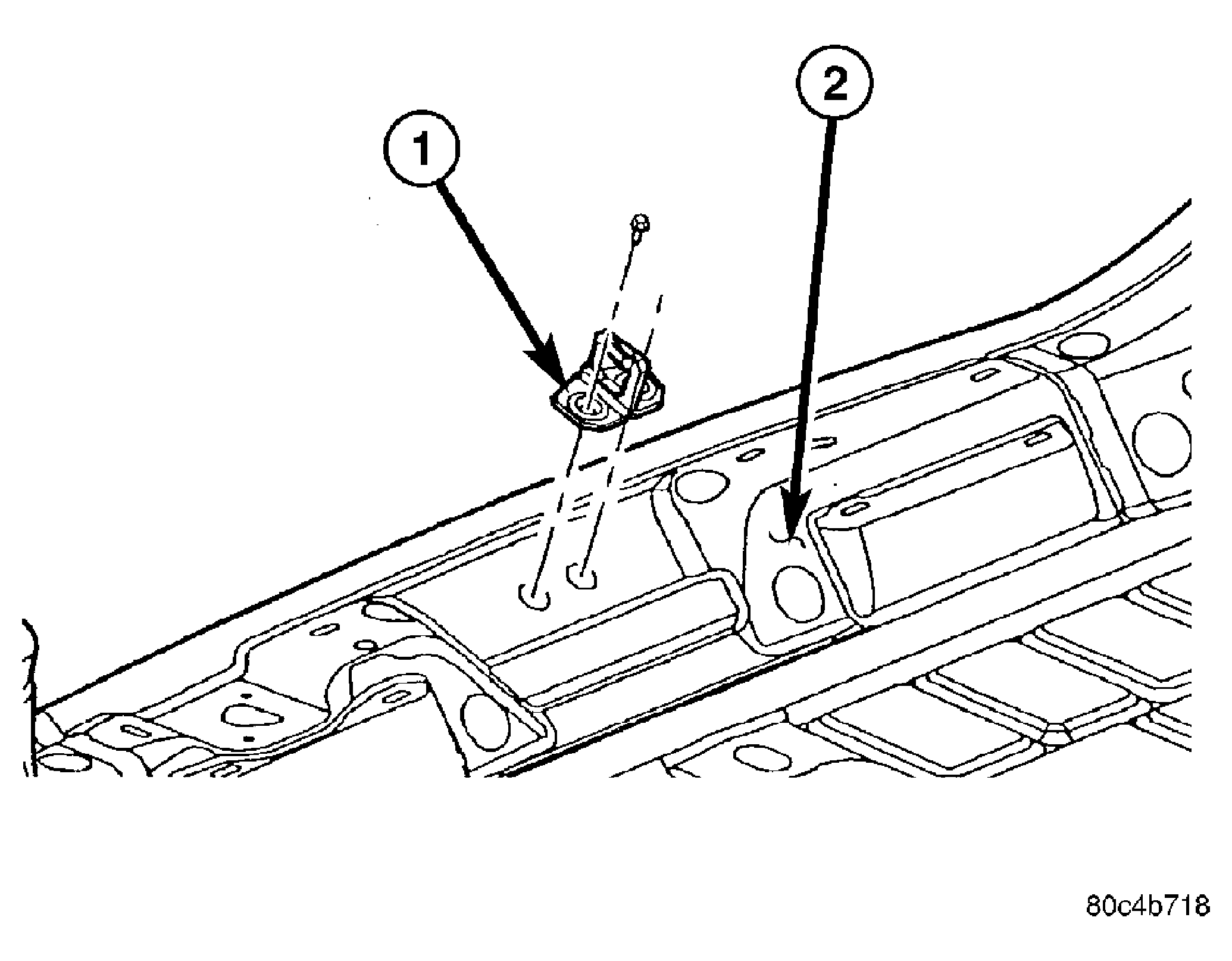

Fig 1: LIFTGATE LATCH STRIKER
GC0022440Courtesy of DAIMLERCHRYSLER CORP.
1 - LIFTGATE LATCH STRIKER
2 - LIFTGATE OPENING LOWER CENTER PANEL
