Left End Cap

Remove the left lower instrument panel bezel. Pull top rearward, lower to floor and with a quick pulling motion remove off instrument panel.
Remove two screws to the left instrument panel end cap.

Pull the left end cap rearward to unsnap. See Fig 1. Maneuver it out from underneath the left A-pillar trim and top cover. Removal of these components is not necessary.

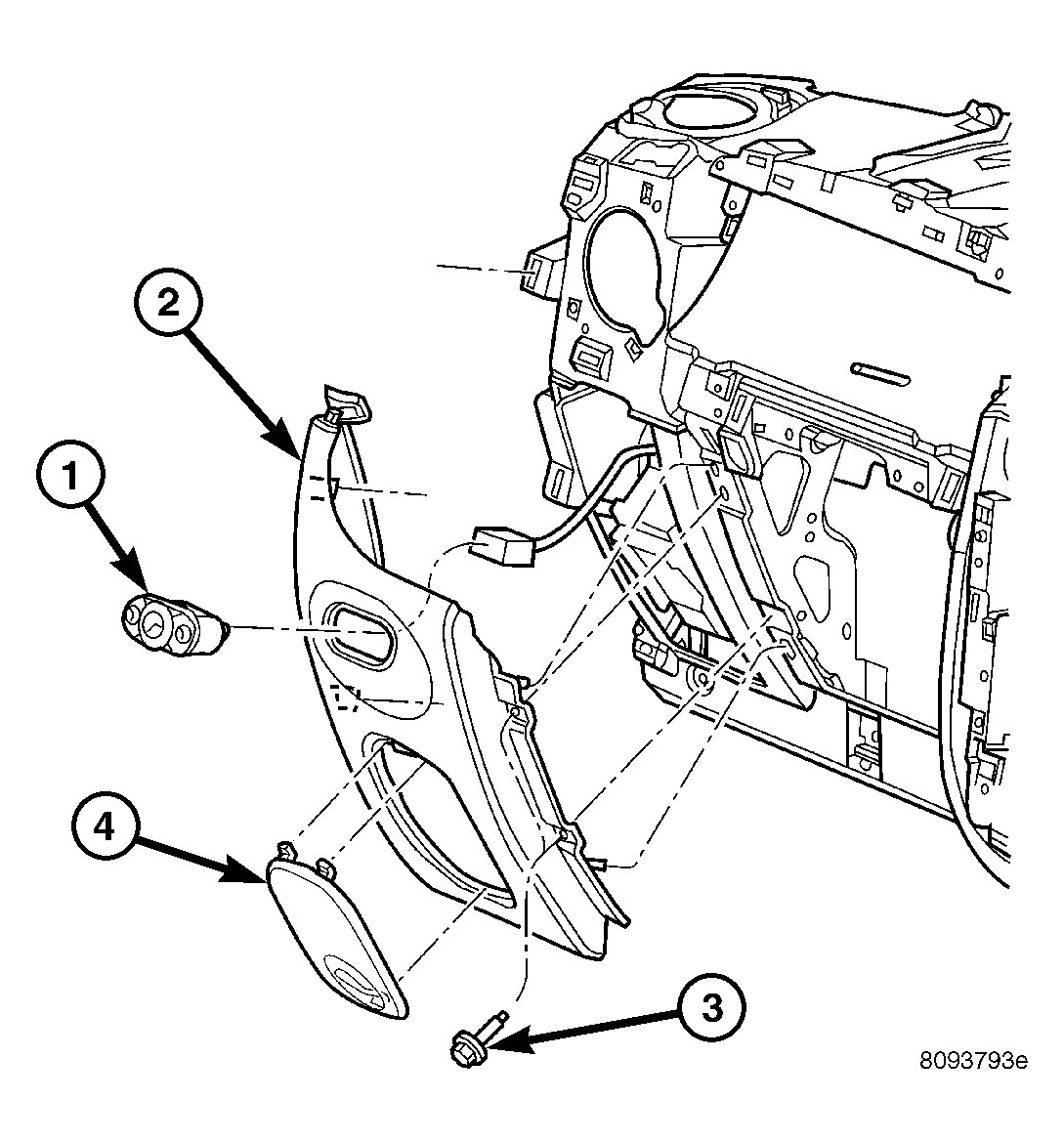

Fig 1: LEFT INSTRUMENT PANEL END CAP - TYPICAL RT & LT SIDE

Courtesy of DAIMLERCHRYSLER CORP.

1 - POWER MIRROR SWITCH

2 - INSTRUMENT PANEL LEFT END CAP

3 - ATTACHING SCREW(S)

4 - INSTRUMENT PANEL FUSE ACCESS COVER

Disconnect the power mirror switch wiring connector (if equipped) and remove from vehicle.
