Glove Box: Removal

Open front passenger door.
Open glove box door, push in on box/bin sides to release the glove box. See Fig 1.
Allow the glove box to drop down. With a firm quick motion, twist the glove box assembly off the hinge pins.

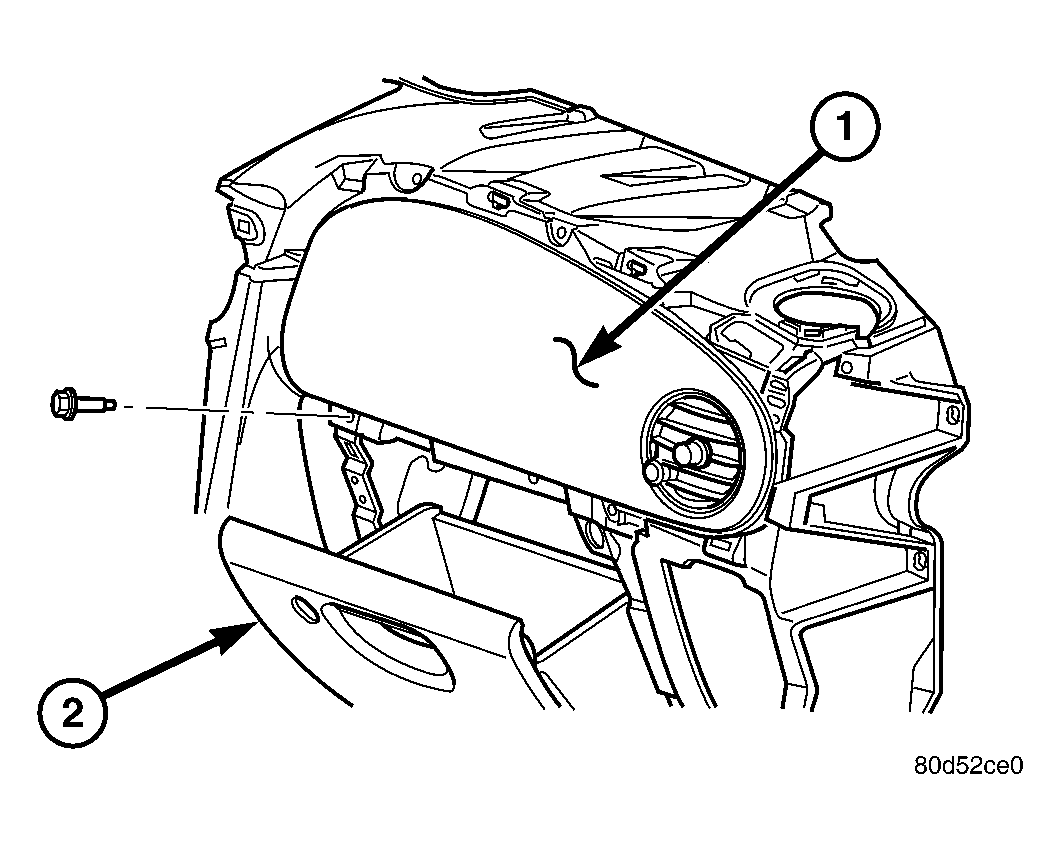

Fig 1: GLOVE BOX

Courtesy of DAIMLERCHRYSLER CORP.

1 - INSTRUMENT PANEL PASSENGER AIRBAG COVER

2 - GLOVE BOX
