Glove Box Lock Cylinder: Removal

Open passenger door.
Remove and disassemble glove box assembly. Refer to GLOVE BOX LATCH .
Insert key into glove box lock cylinder. Using a small pocket screwdriver or equivalent, push in on retaining tab as you turn the lock cylinder 90° and pull out lock cylinder. See Fig 1 and Fig 2.

Fig 1: GLOVE BOX LOCK CYLINDER RELEASE TAB LOCATION

Courtesy of DAIMLERCHRYSLER CORP.

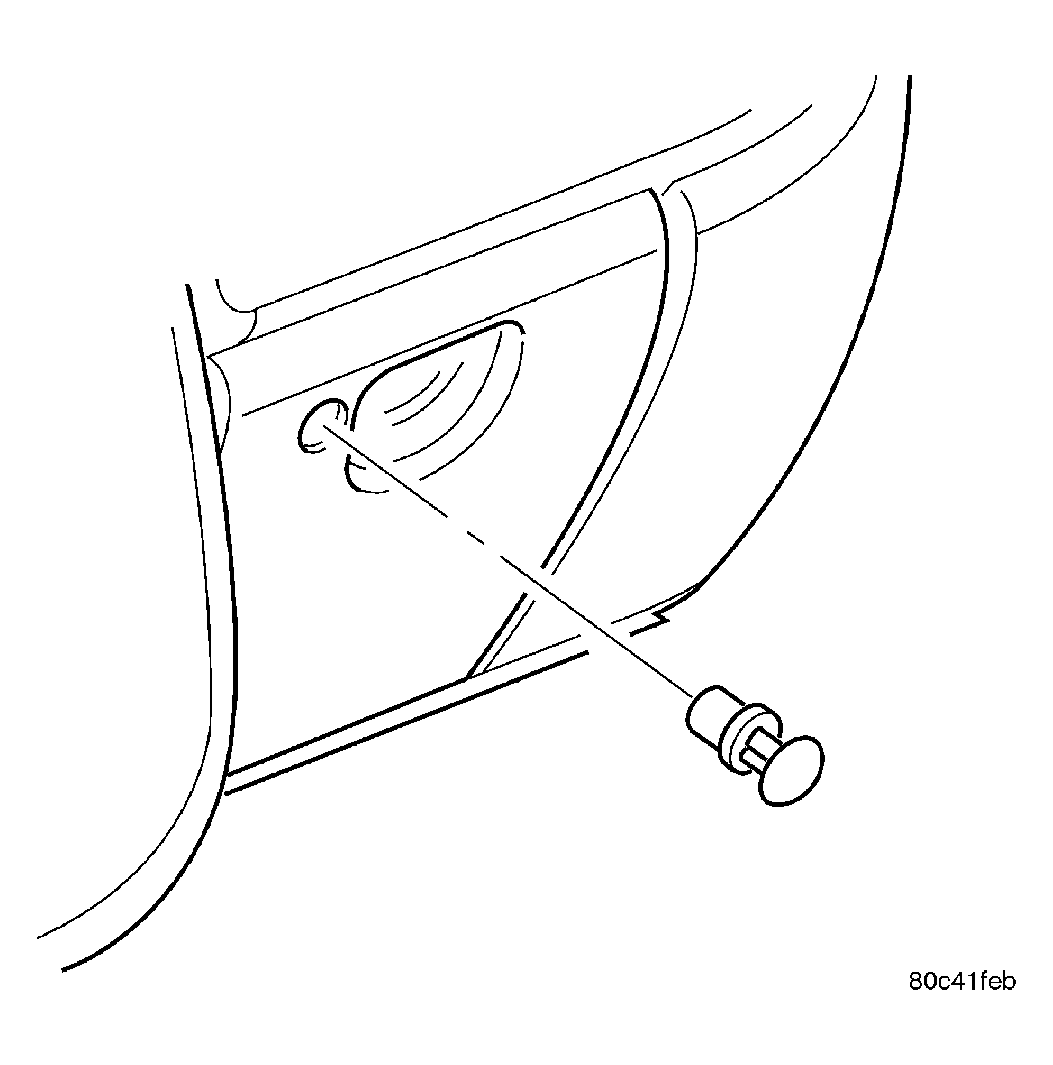

Fig 2: GLOVE BOX LOCK CYLINDER

Courtesy of DAIMLERCHRYSLER CORP.
