Glove Box Latch: Removal

Open front passenger door.
Remove glove box assembly. Refer to GLOVE BOX .
With glove box assembly on bench, remove eleven glove box assembly screws. See Fig 1.

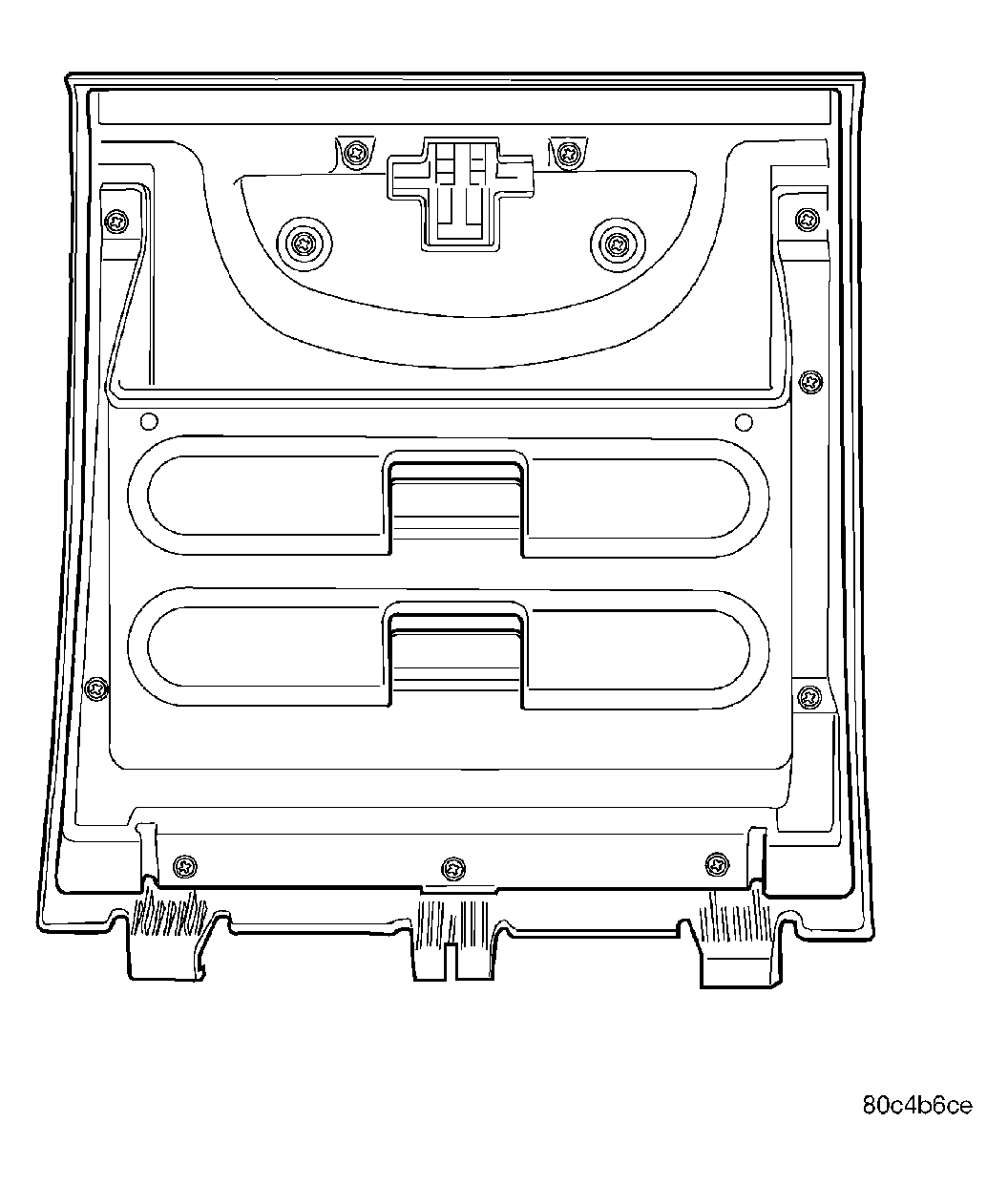

Fig 1: GLOVE BOX ASSEMBLY SCREWS

Courtesy of DAIMLERCHRYSLER CORP.

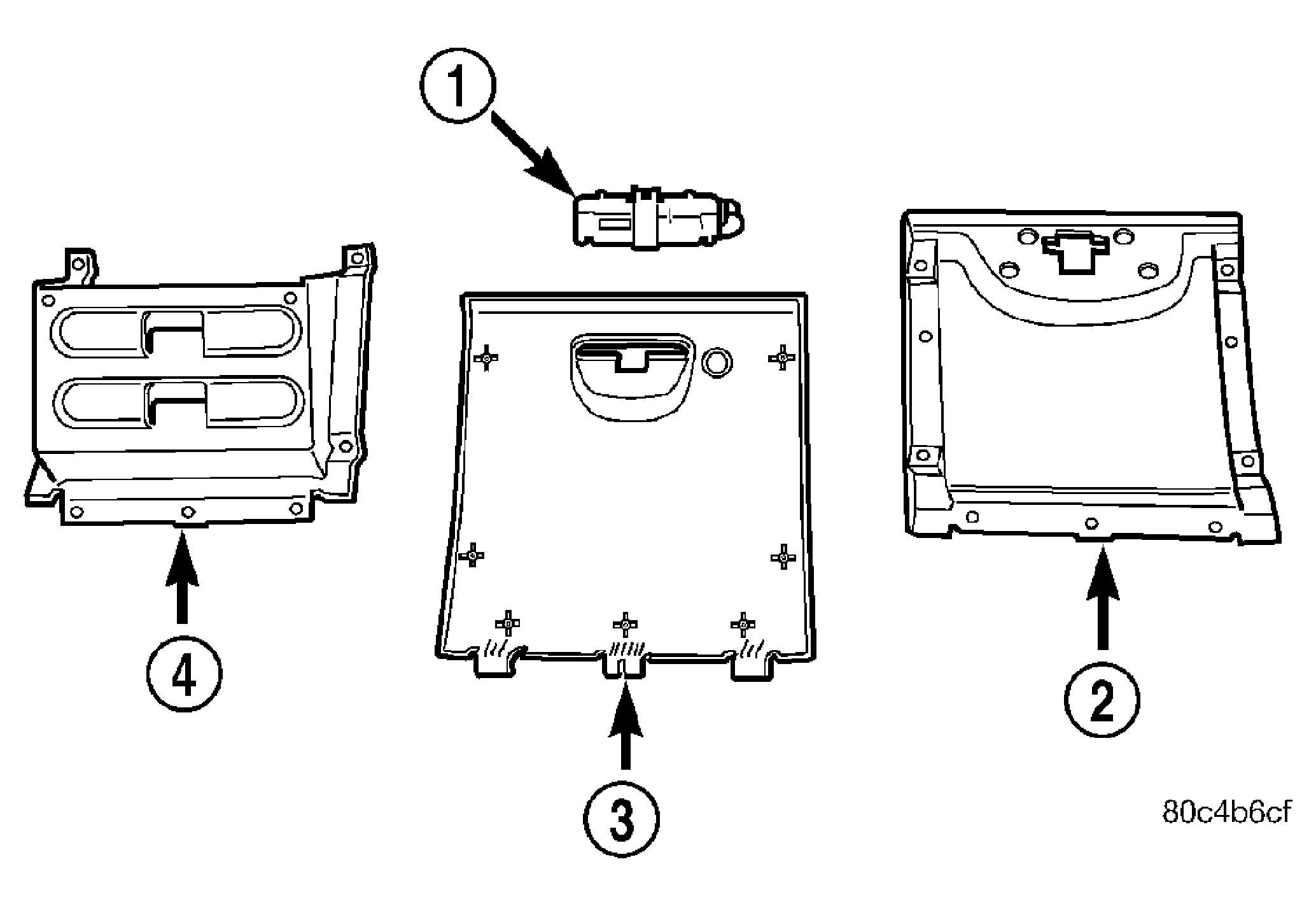

Fig 2: GLOVE BOX ASSEMBLY BREAKDOWN

Courtesy of DAIMLERCHRYSLER CORP.

1 - LATCH

2 - INNER DOOR

3 - OUTER DOOR

4 - BOX
