Removal

1. Open hood.
2. Disconnect and isolate the battery negative cable. See Figure.
3. Remove the instrument panel top cover. (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - REMOVAL)
4. Remove the steering column cover. (Refer to BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING COVER - REMOVAL)
5. Remove the left instrument panel end cap. (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL END CAP - REMOVAL)
6. Grab the sides of the instrument cluster bezel and gently give a quick pull to unsnap the cluster bezel. See Fig 1.

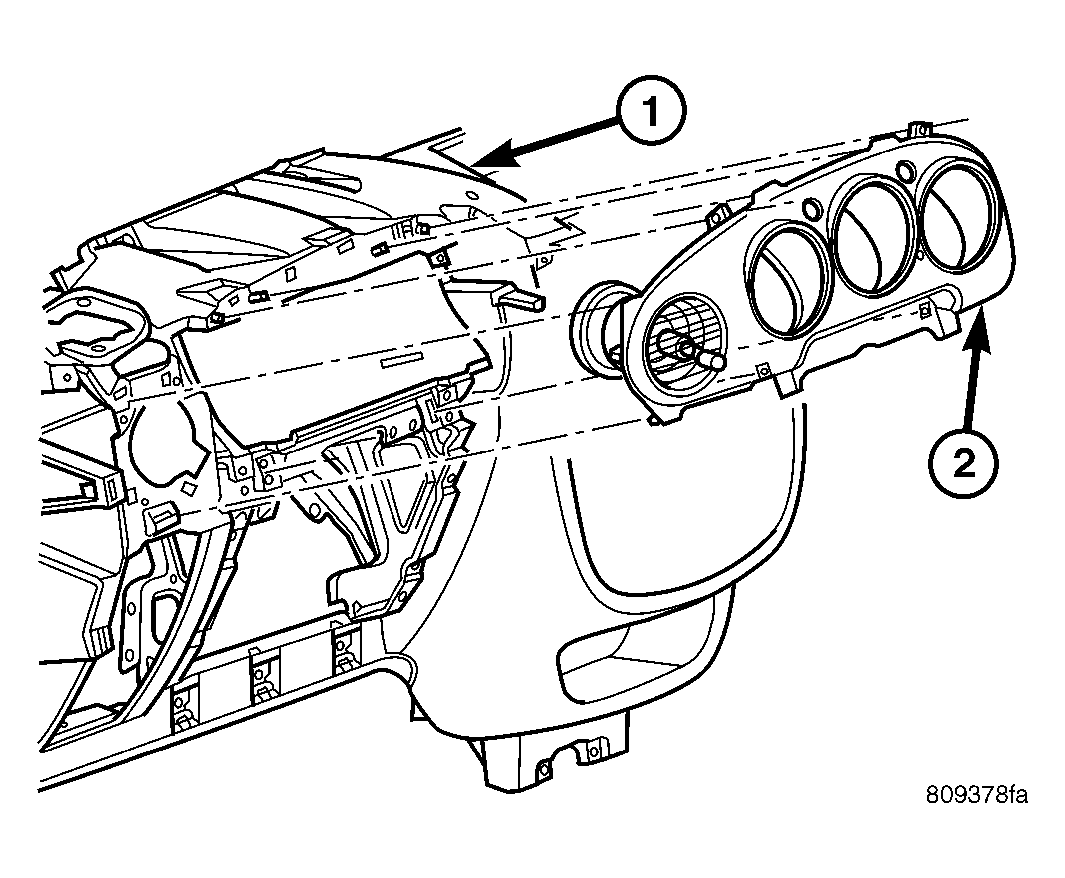

   Fig 1: INSTRUMENT CLUSTER BEZEL

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - INSTRUMENT PANEL

   2 - CLUSTER BEZEL

7. Disconnect the turn signal lamps from the instrument cluster bezel. See Fig 2.
   Fig 2: TURN SIGNAL INDICATOR LAMPS

   Courtesy of DAIMLERCHRYSLER CORP.

   1 -CLUSTER BEZEL

   2 - TURN SIGNAL LAMPS AND WIRE HARNESS

8. Remove bezel from vehicle.

If replacing the instrument cluster bezel, the A/C outlet housing assembly must be transferred to the new bezel.
