Accessory Switch Bezel: Removal

NOTE: The accessory switches are serviced separately, but the cigar lighter/power outlet is not. See Fig 1.

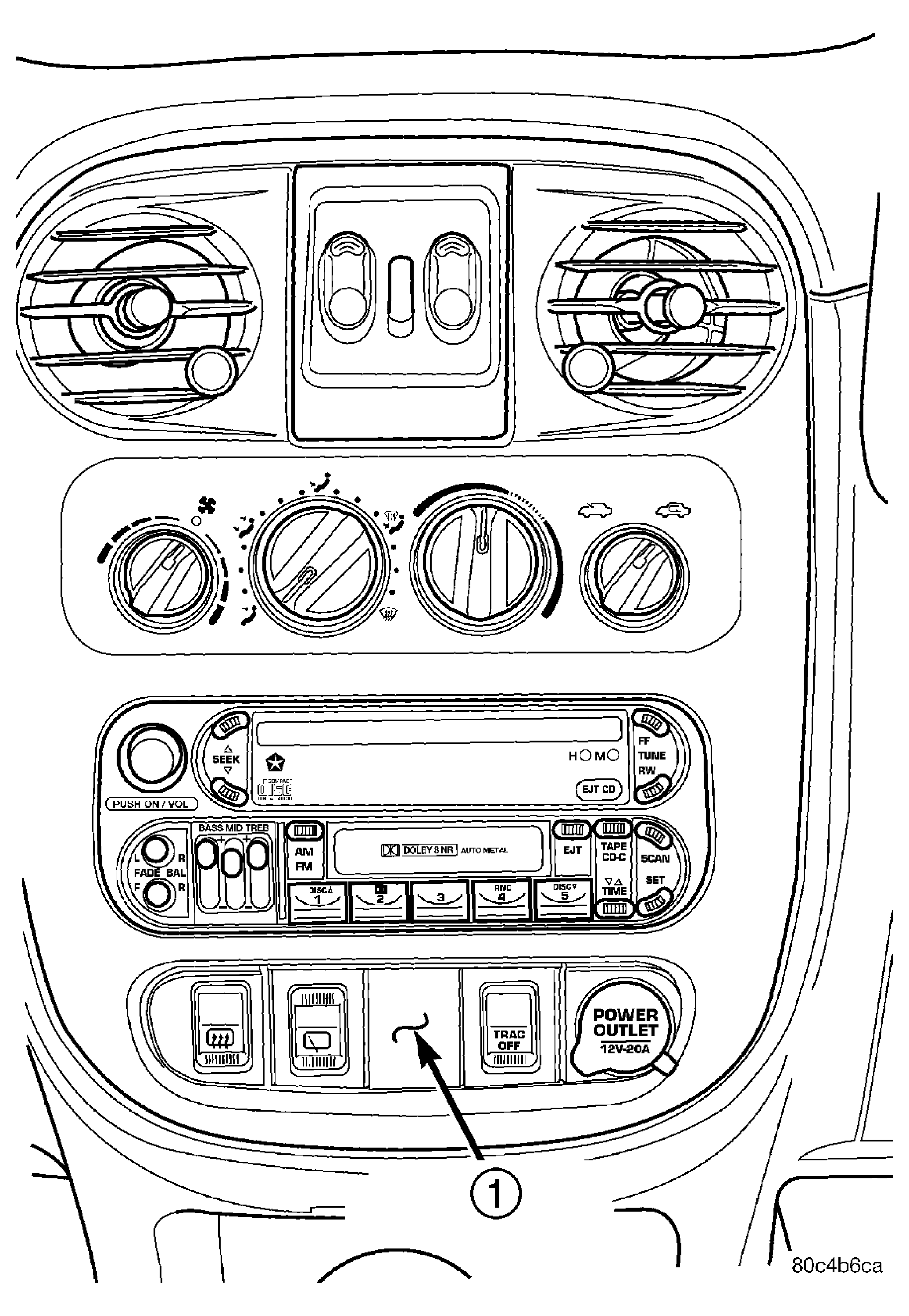

Fig 1: ACCESSORY SWITCH BEZEL LOCATION

Courtesy of DAIMLERCHRYSLER CORP.

1 - ACCESSORY SWITCH BEZEL

Open hood.
Disconnect and isolate the battery negative cable. See Fig 2.

Fig 2: DISCONNECT AND ISOLATE BATTERY NEGATIVE CABLE
Courtesy of DAIMLERCHRYSLER CORP.
Remove the instrument panel center bezel. Refer to INSTRUMENT PANEL CENTER BEZEL .
Remove two screws retaining the accessory switch bezel. See Fig 3.

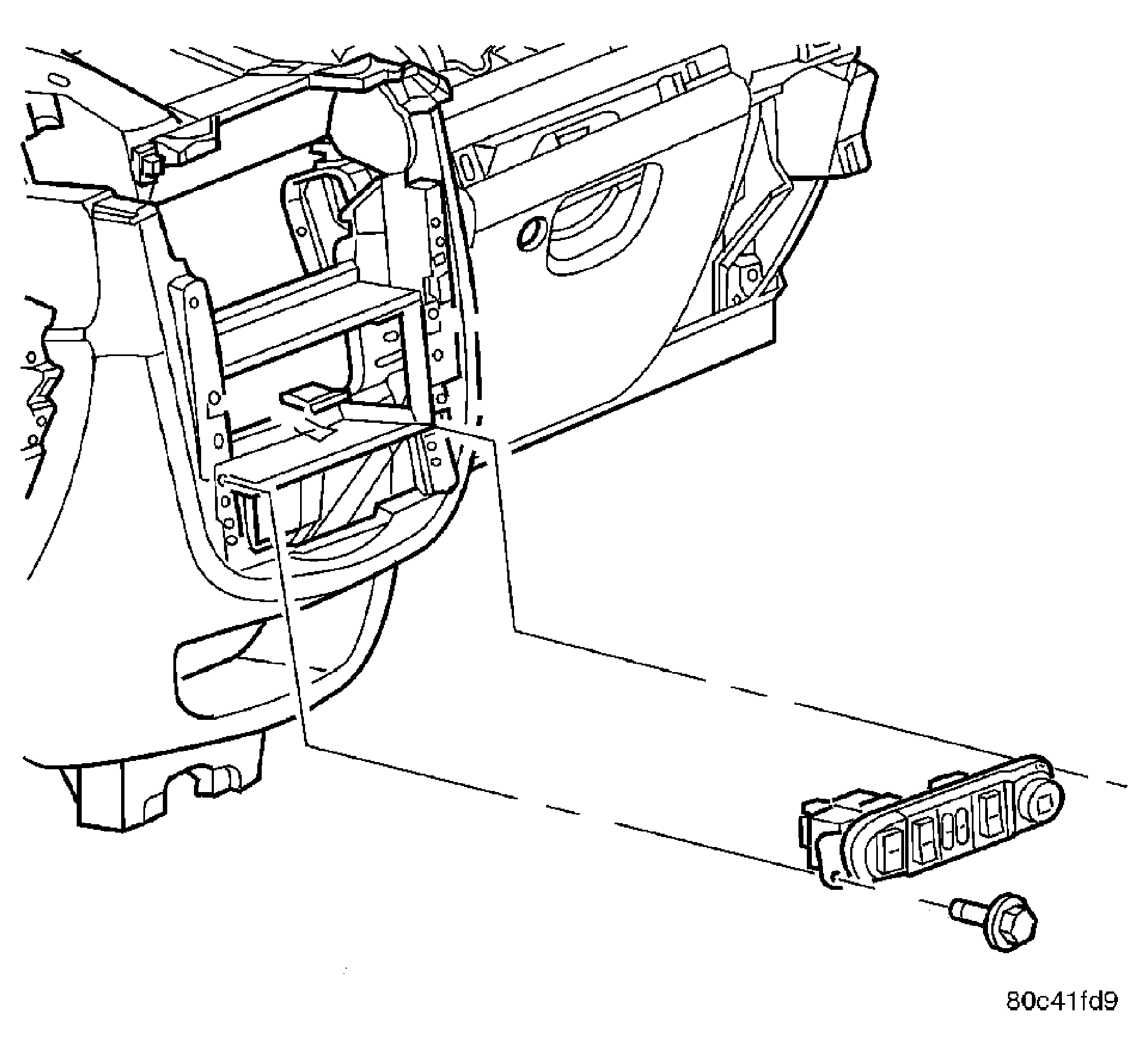

Fig 3: ACCESSORY SWITCH BEZEL
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the harness connectors to the following. See Fig 4:
1. Rear Window Defogger Switch (if equipped)
2. Traction Control Switch (if equipped)
3. Cigar Lighter/Power Outlet
4. Rear Windshield Washer/Wiper Switch

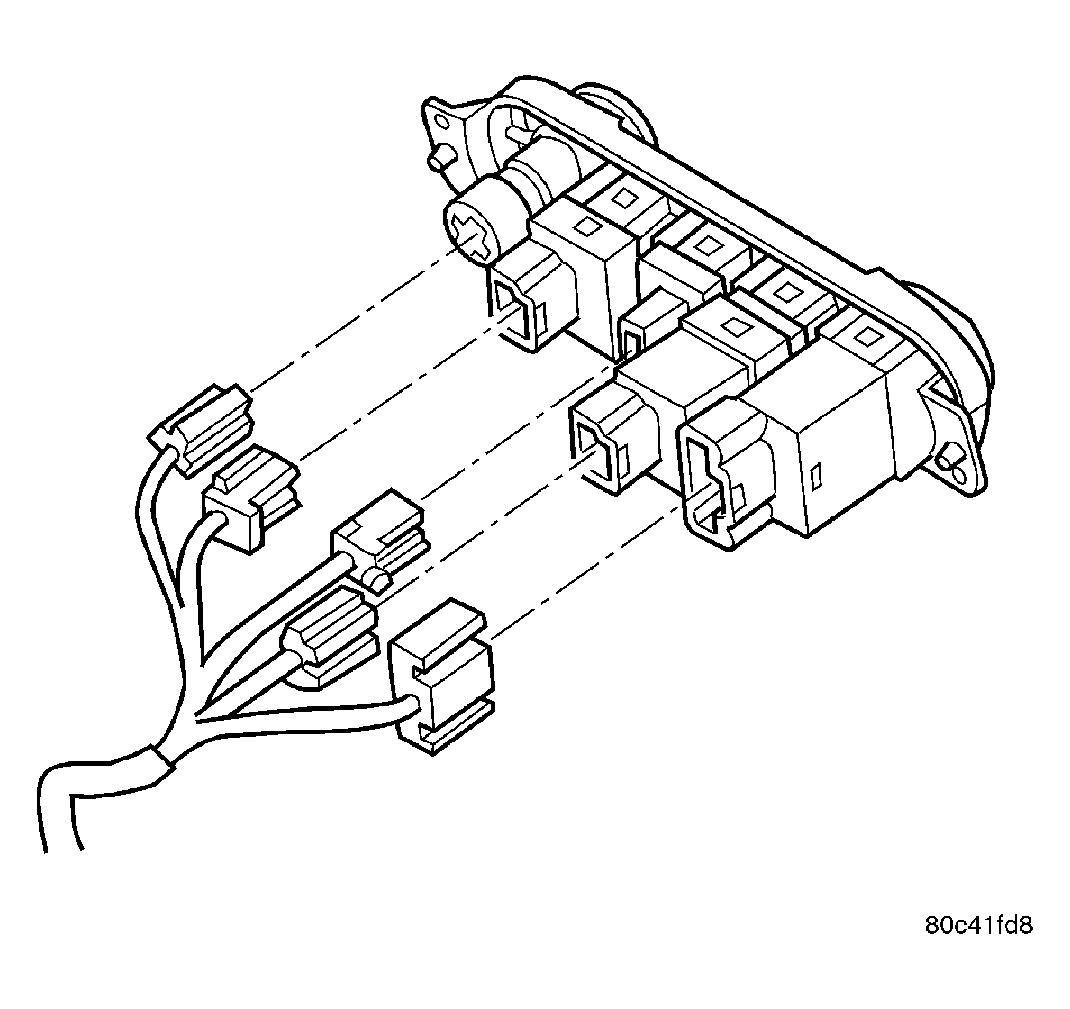

Fig 4: ACCESSORY SWITCH BEZEL CONNECTORS
Courtesy of DAIMLERCHRYSLER CORP.
To remove switches from bezel, use both thumbs and slightly pull out on the two walls that are holding the switches. See Fig 5.

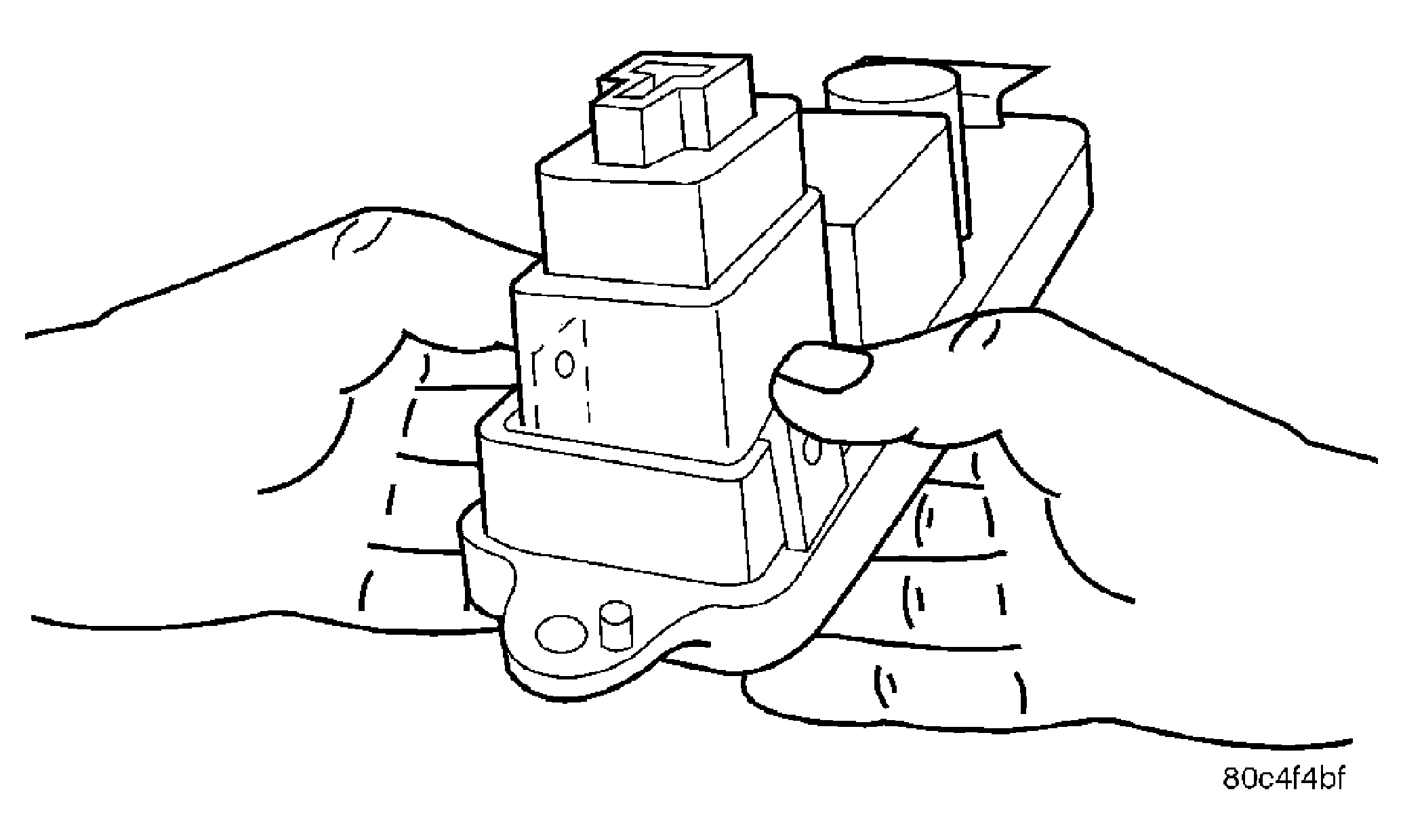

Fig 5: ACCESSORY SWITCH BEZEL SWITCH

Courtesy of DAIMLERCHRYSLER CORP.
