Removal

  1. Open hood.
  2. Remove fasteners attaching hood silencer to hood. See Fig 1.
  3. Remove hood silencer from vehicle.

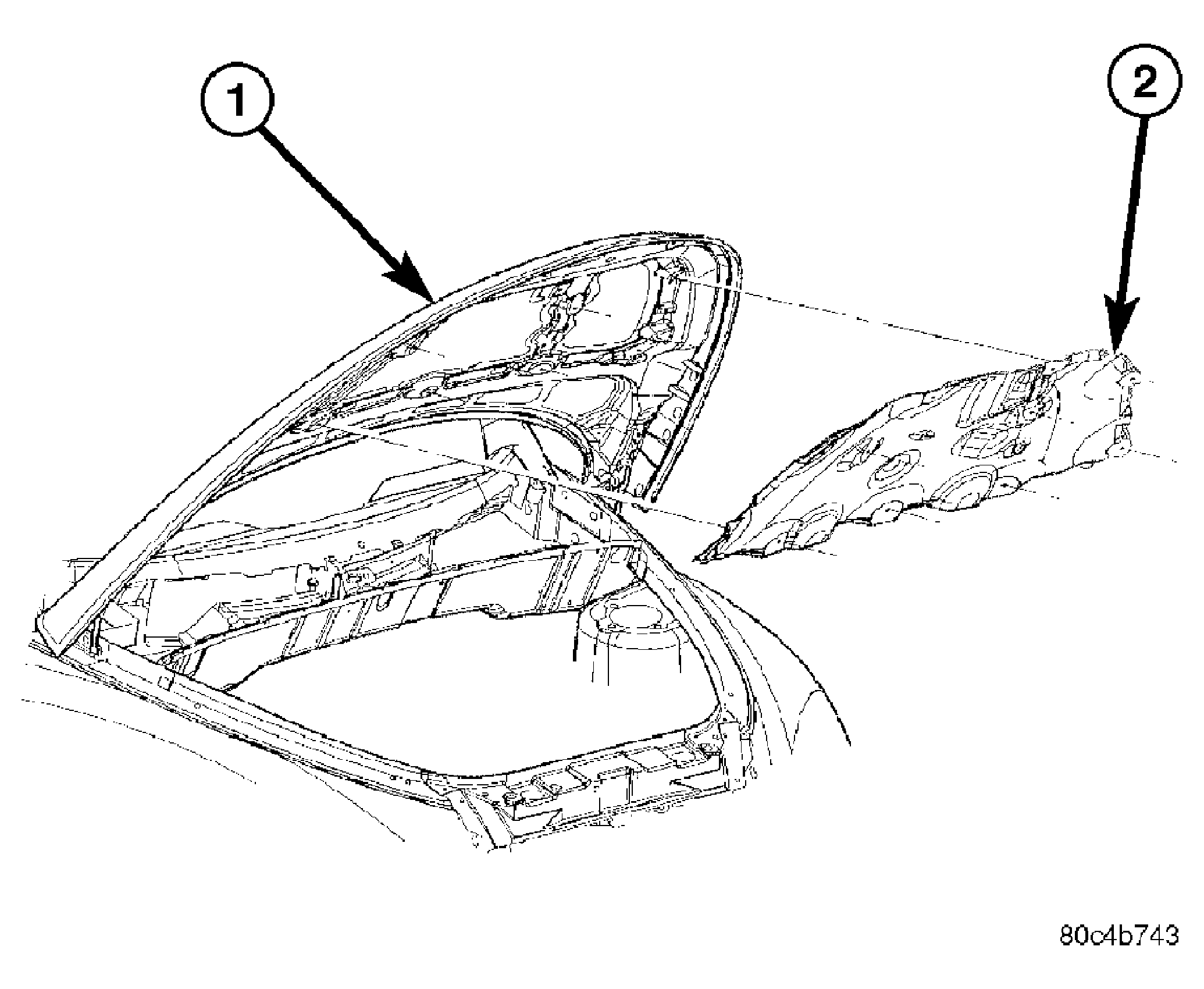

Fig 1: HOOD SILENCER
GC0022370Courtesy of DAIMLERCHRYSLER CORP.
1 - HOOD
2 - HOOD INNER PANEL SILENCER
