Hood Latch: Removal

  1. Release hood latch and open hood.
  2. Support hood on prop rod.
  3. Remove grille.
  4. Remove screws attaching hood latch to radiator closure panel. See Fig 1.
  5. Remove hood latch from closure panel.
  6. Disengage remote release cable from latch. See Fig 2.

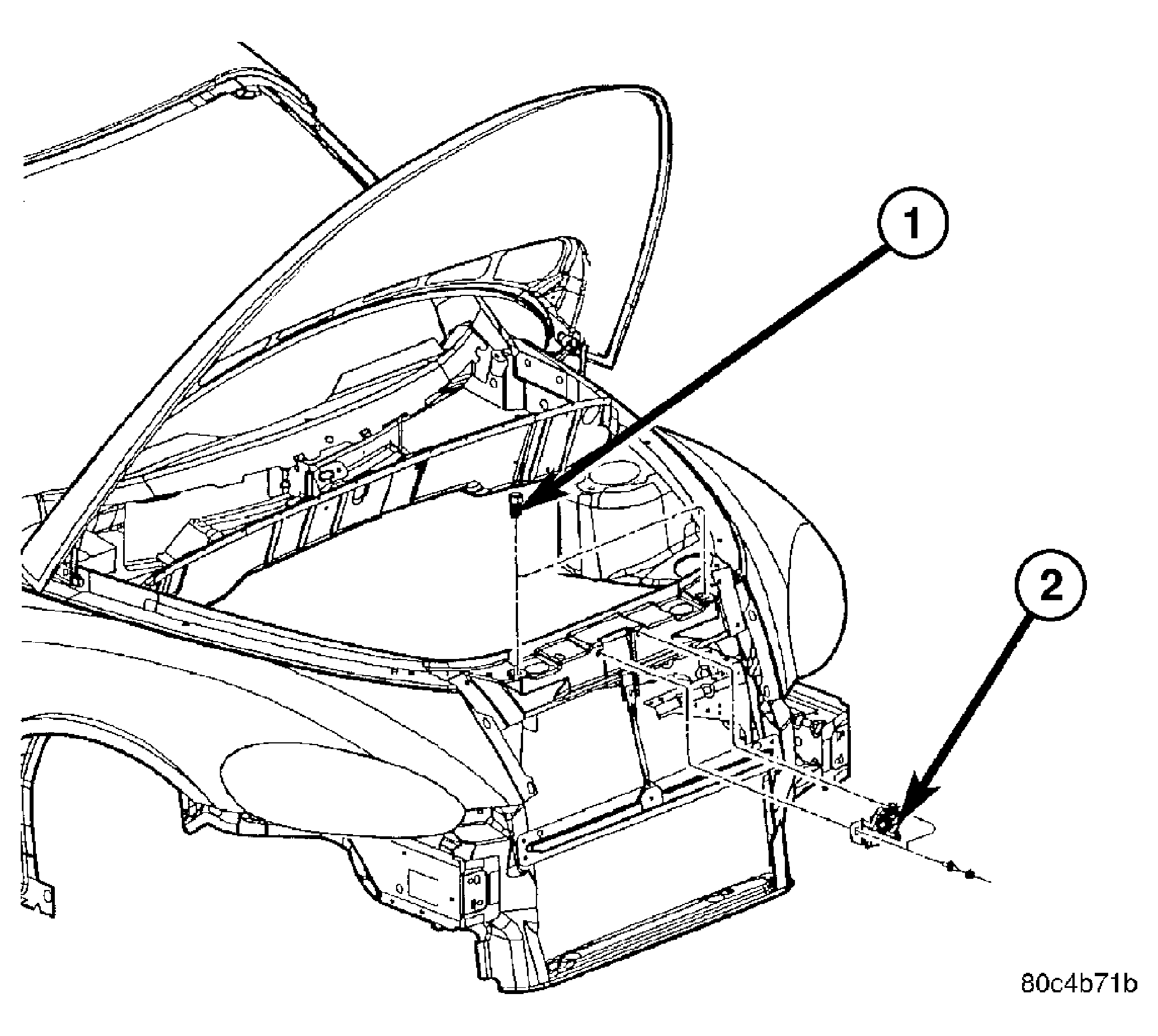

Fig 1: HOOD LATCH
GC0022367Courtesy of DAIMLERCHRYSLER CORP.
1 - HOOD ADJUSTER BUMPER
2 - HOOD LATCH
Fig 2: HOOD LATCH RELEASE CABLE
GC0022368Courtesy of DAIMLERCHRYSLER CORP.
1 - HOOD LATCH RELEASE CABLE
2 - HOOD LATCH
